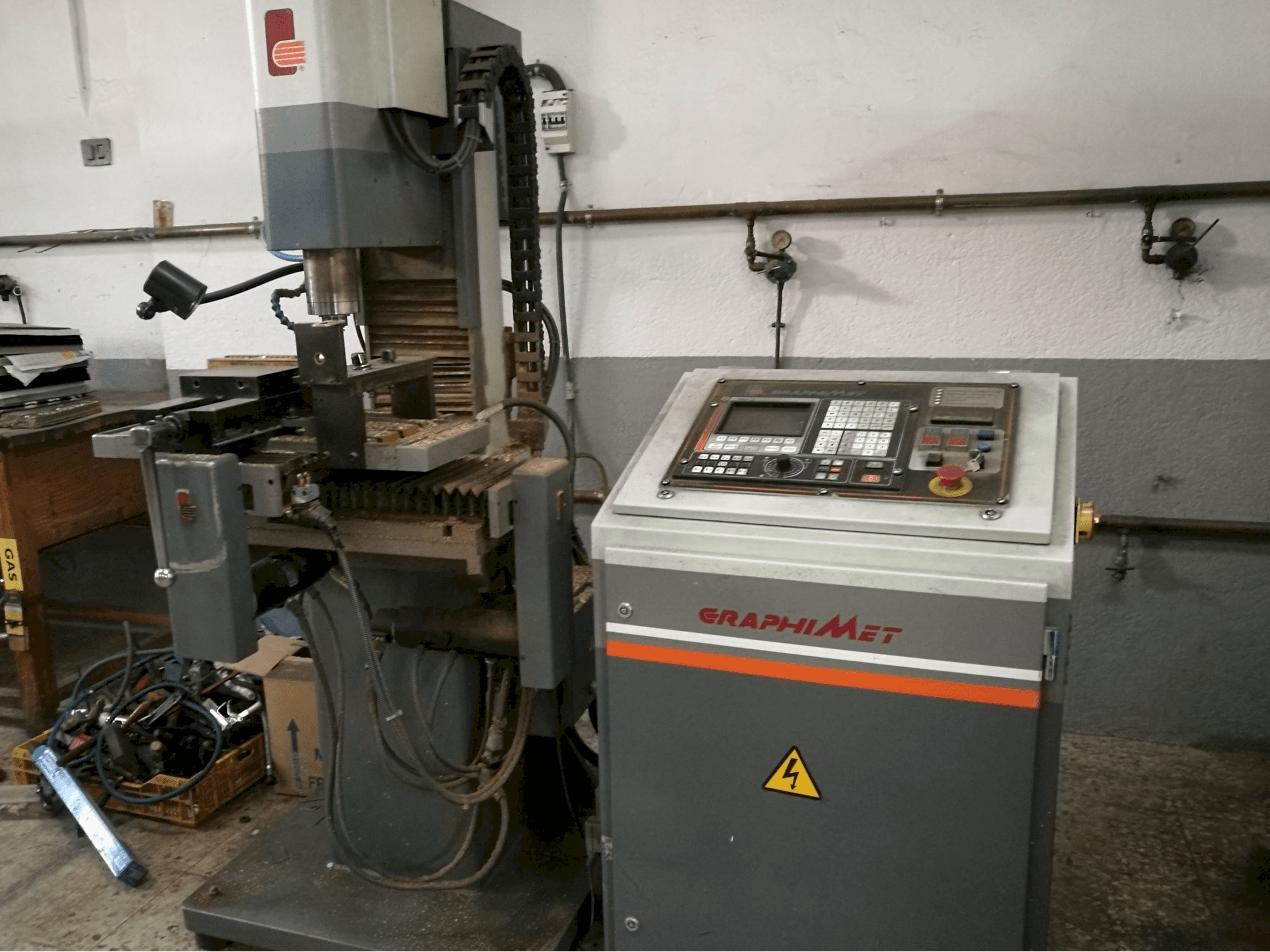

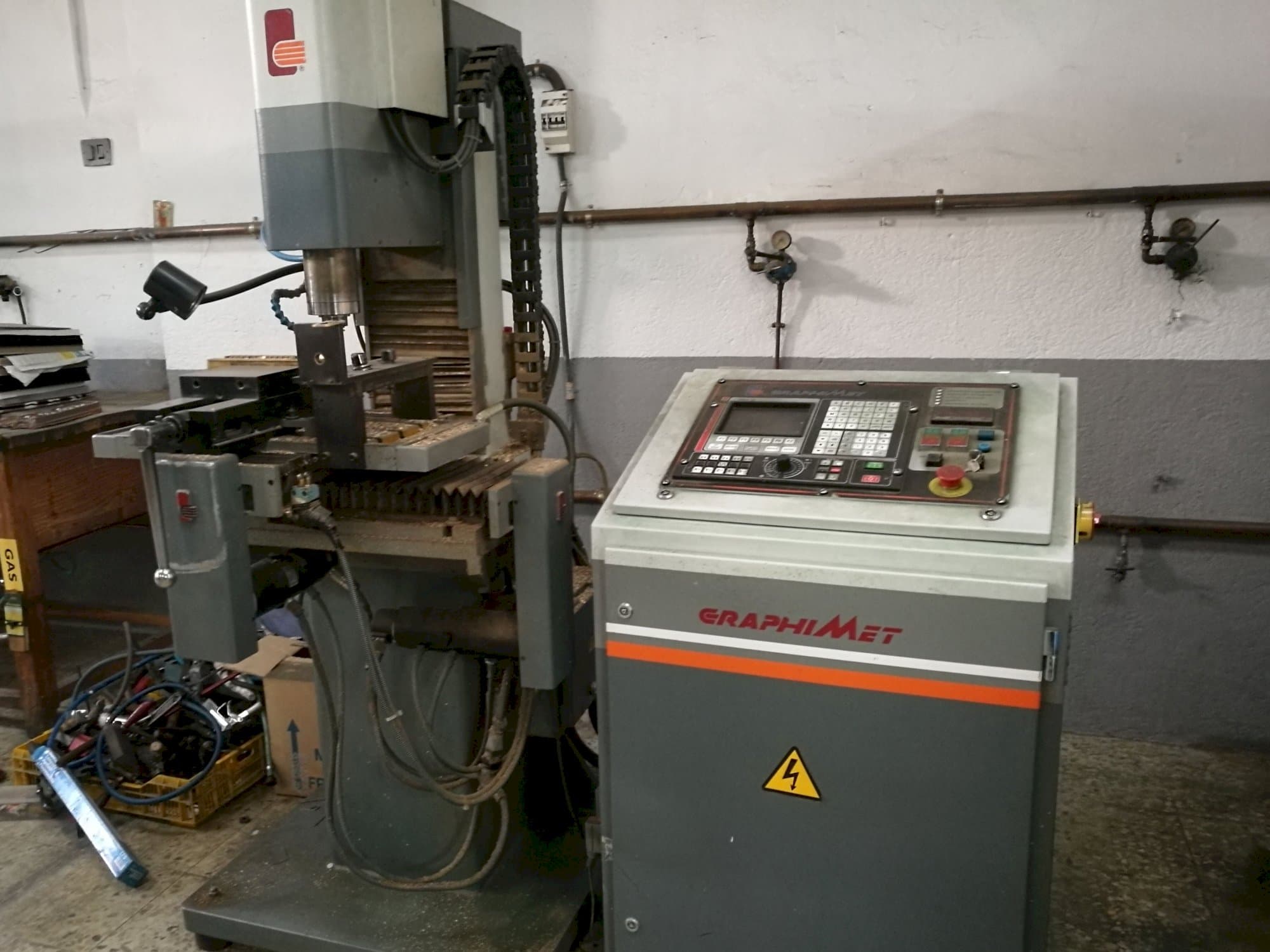

This GRAPHIMET A-2 is a Milling Machine from 1999, produced in Spain with a production time of 7000 hours. Equipped with a Fagor 8025-M Control unit, this machine has been mainly working with brass during the past. Its working table counts with a surface of 440 x 250 mm and its spindle speed can work up to 25000 rpm.
Overview
- brand: GRAPHIMET
- year: 1999
- MODEL: A-2
- production hours: 7000
- application type: Milling
- Location: Spain
- machine type: Horizontal Machining Centre
- control unit brand: FAGOR
Technical Information - GRAPHIMET A-2
Control Unit
- Control Brand: FAGOR
- Control Model: 8025-M
Dimensions
- Machine Depth: 792 mm
- Machine Height: 1837 mm
- Machine Weight: 700 kg
- Table Length: 440 mm
- Table Width: 250 mm
Movement
- X-axis Travel: 330 mm
- Y-axis Travel: 190 mm
- Z-axis Travel: 280 mm
Technical Specification
- Spindle Speed: 25000 RPM
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
