➤ Used GER SC 80-40 For Sale | gindumac.com

Show in original language

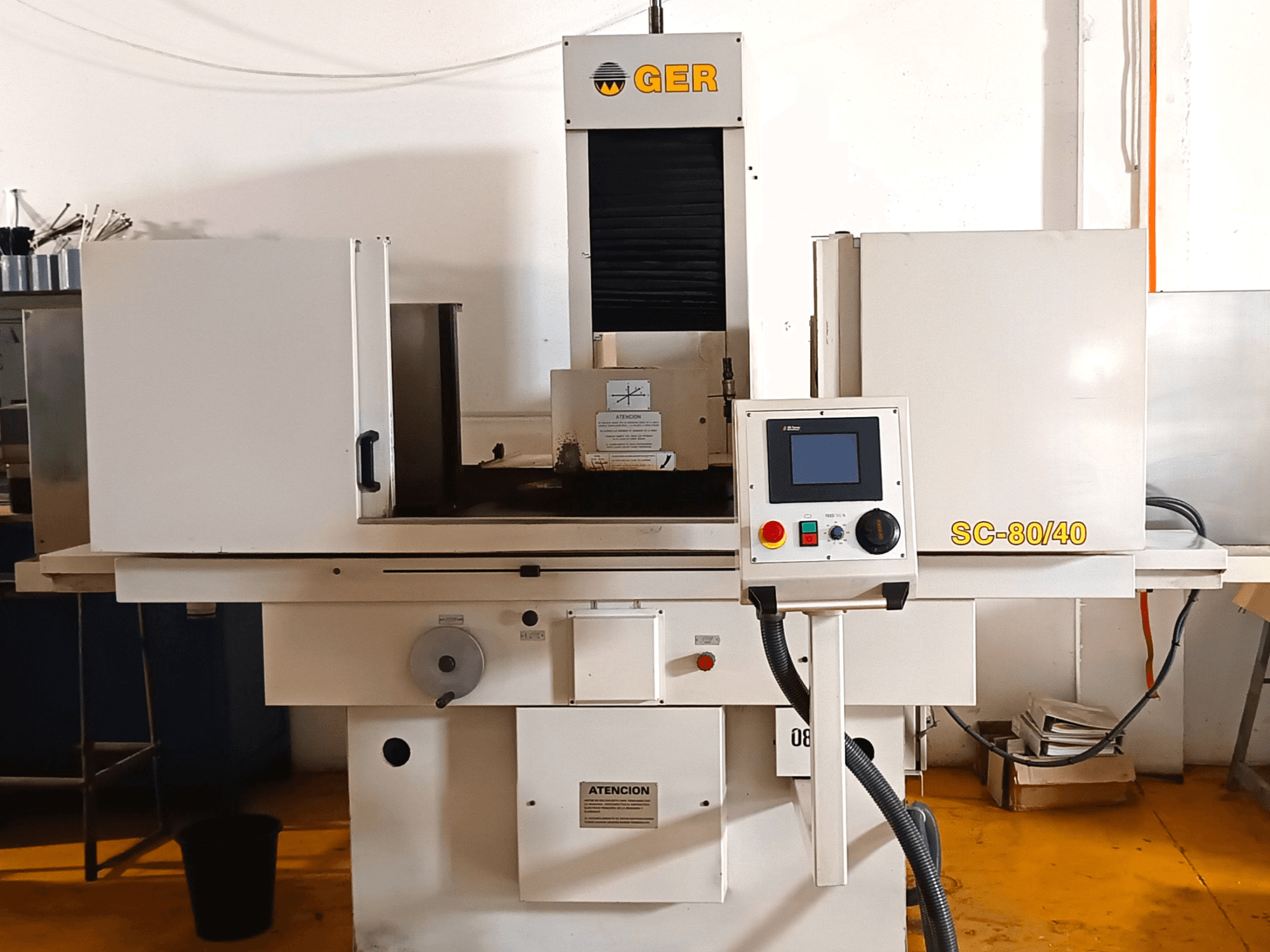

This 3-axis GER SC 80-40 surface grinding machine was manufactured in 2006. It features a maximum grinding capacity of 800 × 450 mm and an X-axis travel of 860 mm. The machine is equipped with a FANUC Series 0i-Mate CNC control and a powerful 3.7 kW grinding wheel motor. If you are looking to get high-quality grinding capabilities, consider the GER SC 80-40 machine we have for sale. Contact us for further details.

Overview

brand: GER
year: 2006
MODEL: SC 80-40
application type: Grinding
Location: Spain
machine type: Surface Grinding Machine
control unit brand: FANUC

Technical Information - GER SC 80-40

Control Unit

Control Brand: FANUC
Control Model: Series 0i-Mate

Dimensions

Machine Height: 2100 mm
Machine Length: 2800 mm
Machine Weight: 3000 kg
Machine Width: 2000 mm
Table Load: 400 kg

Movement

Number of Axes: 3
X-axis Travel: 860 mm
Y-axis Travel: 400 mm
Z-axis Travel: 375 mm

Technical Specification

Spindle Power: 3.7 kW

Additional Information

Type of drive: Longitudinal drive: Hydraulic; Cross and Vertical drives: Servo Motors
Closure: 4-Sided

Table

Outer length: 800 mm
Outer width: 400 mm
Magnetic table: Yes
Max distance between vertical spindle and table: 625 mm

Maximum Grinding Capacity: 800 × 450 mm
Maximum Grinding Height: 340 mm
Automatic Vertical Feed: Yes
Grinding Wheel Dimensions: Ø300 × 50 × Ø76.2 mm
Automatic Wheel Dressing: Yes
Coolant Filtration System: Decanting Filter

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
