➤ Used FELDER Format 4 Profit H150 22.32 T For Sale | gindumac.com

Show in original language

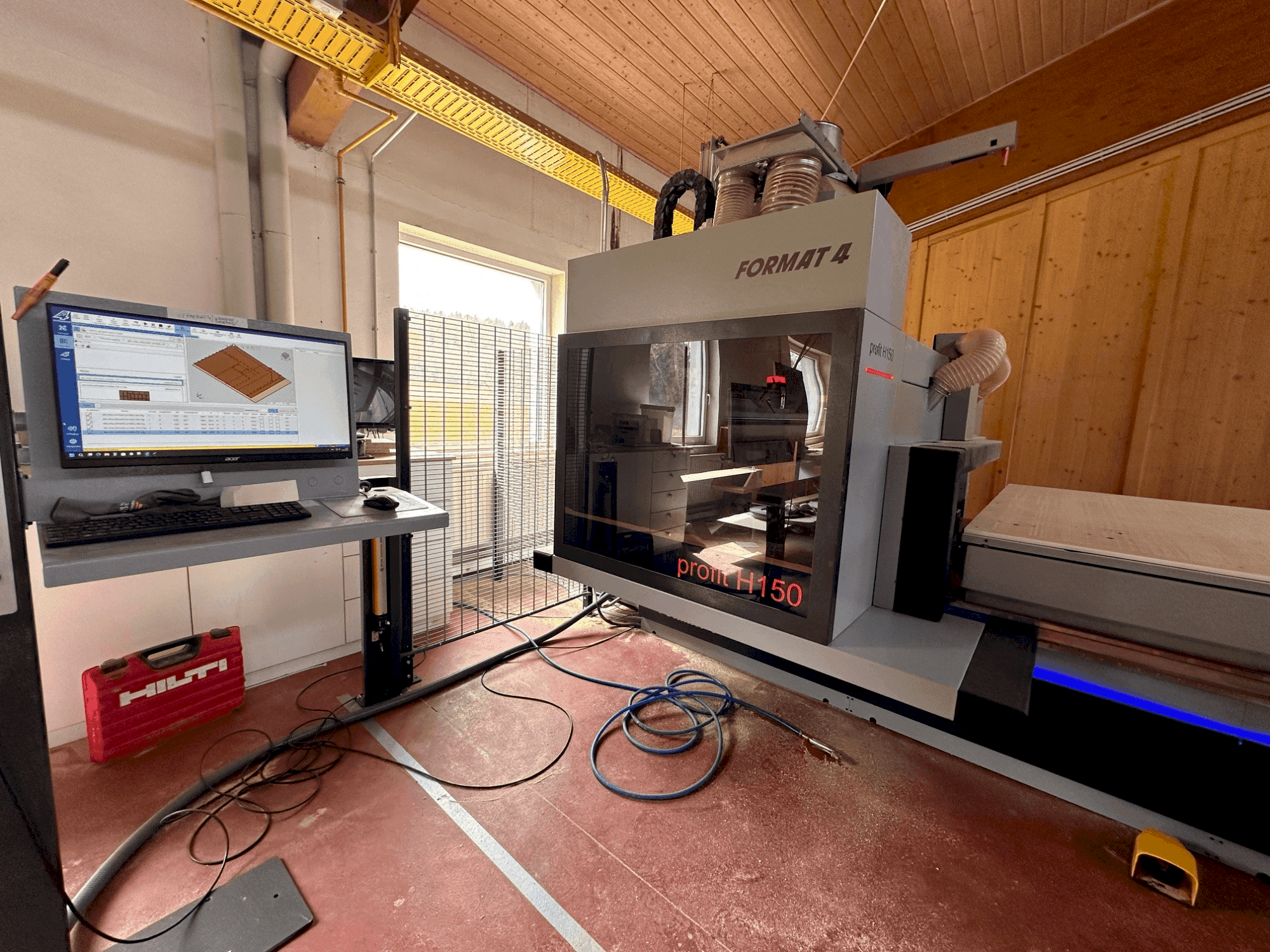

This 5-axis FELDER Format 4 Profit H150 22.32 T was manufactured in 2022. It features a 5-axis main spindle with 12 kW power, a 17-fold linear changer, and an 18-position plate changer. The machine includes a comprehensive control system with F4Operate, F4Toolbox, F4Create, and 3D nesting software F4Nest. It also boasts a complete compressed air system and automatic central lubrication. The FELDER FORMAT4 Profit H150 22.32 T machine we have for sale. Contact us for further details regarding this CNC Wood Machining Centre.

Overview

brand: FORMAT4
year: 2022
MODEL: Profit H150 22.32 T
application type: CNC Wood Machining
Location: Germany
machine type: CNC Wood Machining Centre

Technical Information - FORMAT4 Profit H150 22.32 T

Main drive

Spindle motor power: 12 kW
Tool taper: Partly with HSK
Number of axis: 5

Movement

X-AXIS Movement: 4455 mm
Y-AXIS Movement: 2595 mm
Z-AXIS Movement: 495 mm

Additional Information

Additional equipment

Automatic central lubrication: Yes
Control cabinet with new main computer: Yes // Control terminal with keyboard and mouse: Yes
Handheld terminal for remote control: Yes
Vacuum system: 1060 square meters (oversized)
Safety device with light barrier and bumper: Yes
Drilling head: 12 vertical drilling spindles
Controlled central extraction connection: Yes
Machine control: "F4Operate", "F4Tollbox", "F4Create"
3D nesting software: F4Nest
Powerful machine PC: Yes

Machine Benefits

Qualitative Machine Benefits

High precision with built-in 3d nesting software, efficient operation with automatic central lubrication and tool length measuring systems
Optional: vacuum crane for one-man loading of the 5-axis cnc
Schmalz company, jib 6 meters, suction load 250 kg
The machine hours: approx 300 hours
There are a total of 3 vacuum pumps installed, so the vacuum performance is very good. (original components. )
Clamex pin milling cutter that simultaneously mills the pockets with a drilling cutter with chip breaker / clamex grooving cutter that simultaneously mills the pockets with a drilling edge / diamond 12mm format pin cutter for formatting with soldered collet chuck / warsteiner lamello profile chamfering complete t-profile in one operation with collet chuck
Lamello end mill with collet chuck / lamello end mill with arbor / 8 pin end mills with spanner pliers / 30 drill bits / 35,6,8,10,15,30,35 drill bits / saw blade for cnc / 3 drills with collet / 8 vacuum pads for nesting / fixchip with pocket routing with drilling edge

Technical Machine Benefits

Air conditioning in control cabinet: yes
Automatic tool length measuring system: yes
Complete compressed air installation: yes
Unloading unit with light barrier: yes
Printer for labels: yes
Cad/cam macros for clamex, fixchip, cabineo: yes, completely set up and ready for operation
Tool changer: 17-fold linear changer, 18-position plate changer (tools available at extra charge)
Extensive tool changers with tools available at an extra charge, advanced control and software systems, high power 12 kw main spindle
Working field: x 3120 mm, y 2160 mm, z 200 mm
Travelling distance: x 4455 mm, y 2595 mm, z 495 mm

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
