- Fladder AUT-1000 VAC Deburring machine

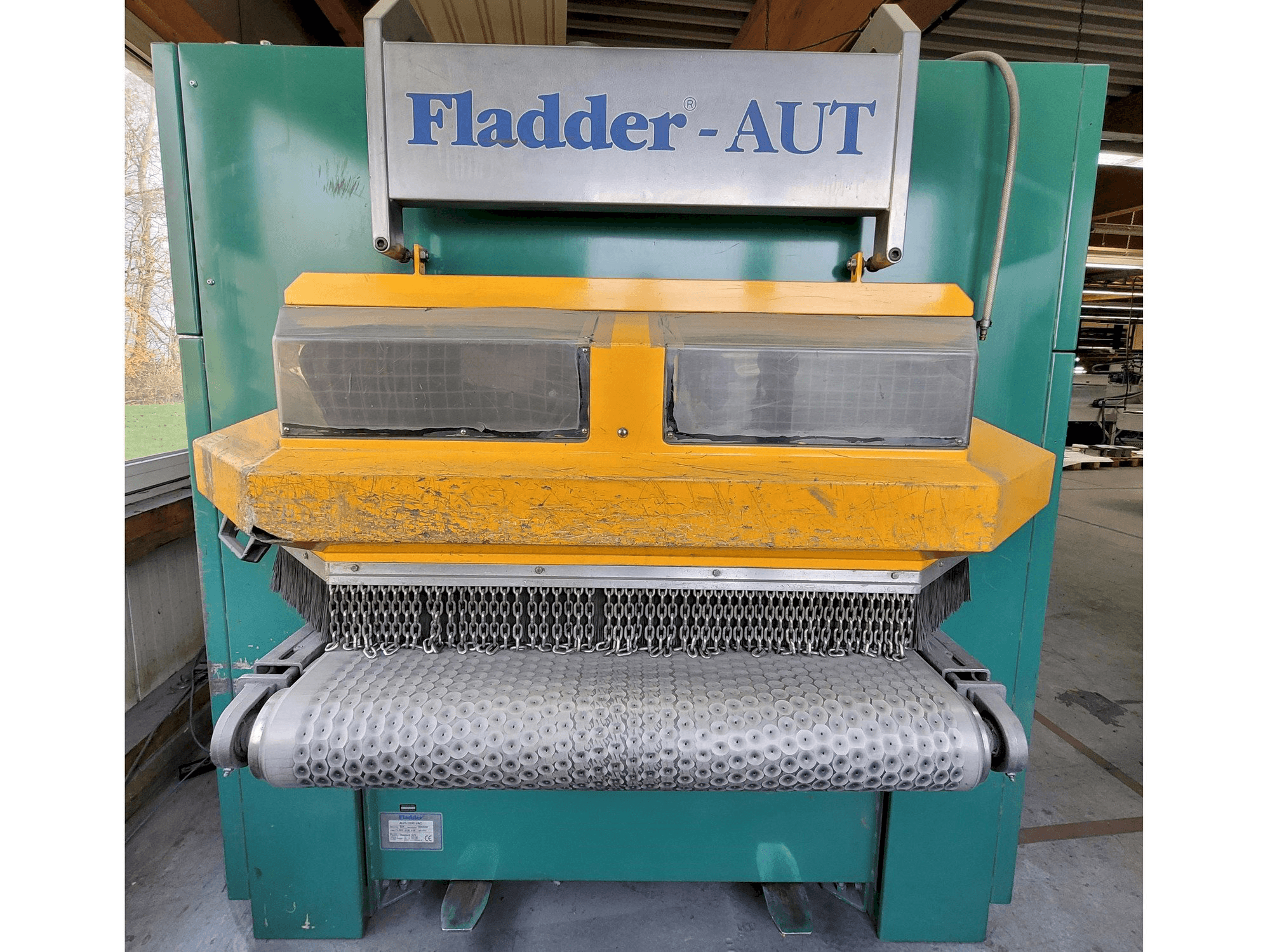

This Fladder AUT-1000 VAC Deburring machine was manufactured in the year 1998 in Denmark. The machine has 6 spindles and a spindle length of 350 mm.
Overview
- brand: Fladder
- year: 1998
- MODEL: AUT-1000 VAC
- application type: Deburring
- Location: Germany
- machine type: Deburring
- availability: Sold
- GINDUMAC ID: DE-DEB-FLA-1998-00001
Technical Information
General Data
- Measurements width: 1800 mm
- Measurements depth: 1710 mm
- Measurements height: 2110 mm
- Machine weight: 1500 kg
Main drive
- Number of spindles: 6
Additional Information
- Technical Machine Benefits:
- - Face height: 850 mm
- - Vacuum plan width: 1000 mm
- - Max. Workpiece height :100 mm
- - Max. Workpiece width: 1000-1200 mm
- - Throughput speed : 0,3 - 10 m/min.
- - Spindle length: 350 mm
- - Number of fladder® abrasive sheets: 144 - 220 st.
- - Rotary motor : 0,37 kw
- - Oscillation motor : 0,55 kw
- - Feed motor : 1,5 kw
- Qualitative Machine Benefits:
- - Compressed air: 1/4”, 6 atm
- - Extraction: 2500 m3/h
- - Suction nozzle: 1 x Ø200 mm
- - Fuse max. 63 a , fuse min. 50 a
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
