- ➤ Used FFG DMC DL 25SY For Sale | gindumac.com

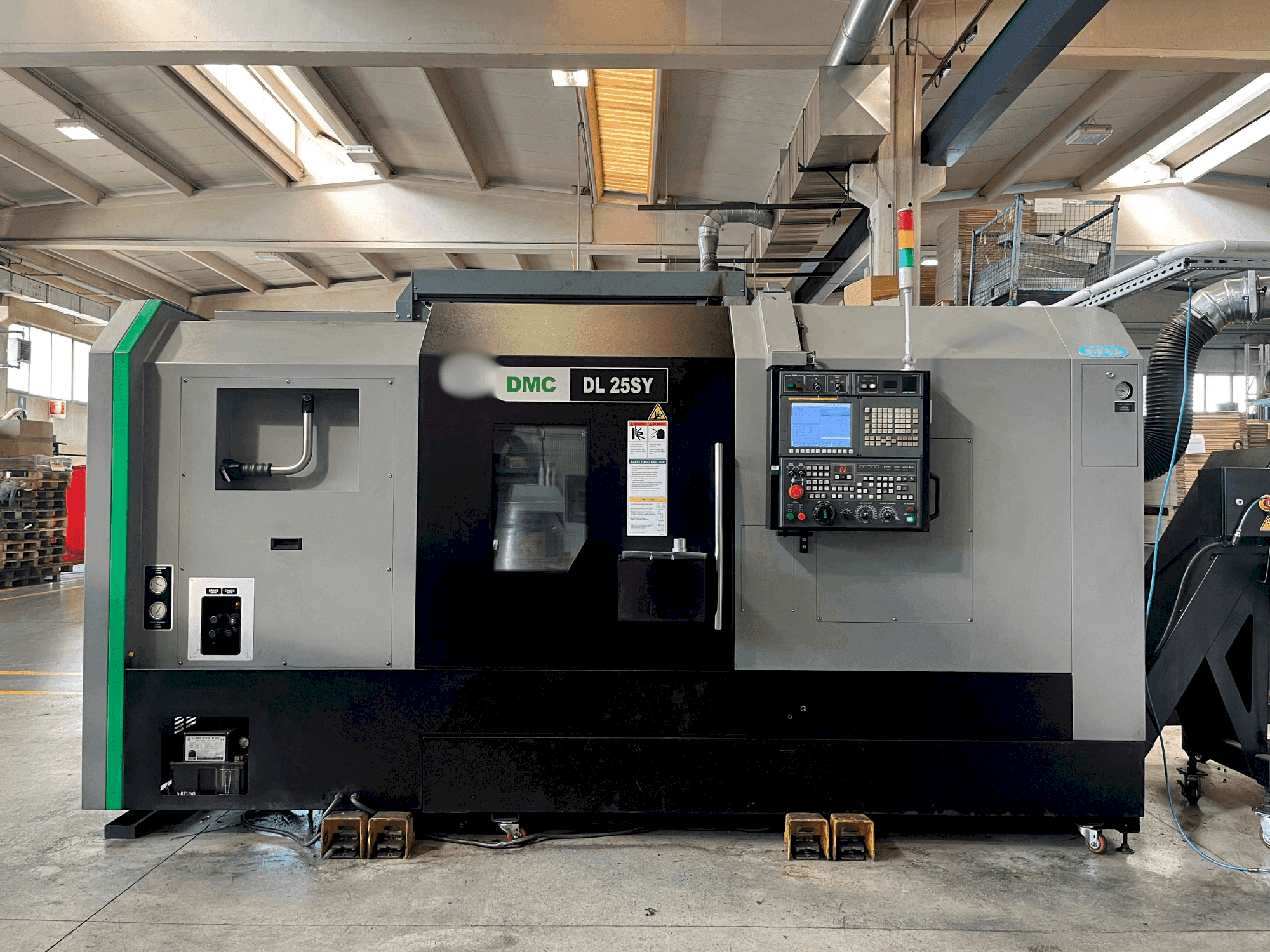

This 4-axis FFG DMC DL 25SY horizontal turning machine was manufactured in 2019. It features a FANUC 0i-TF control, a swing diameter of 710 mm, and a maximum turning diameter of 400 mm. The main spindle supports a 10" chuck, complemented by a sub-spindle with an 8" chuck. It includes a 12-position servo-driven turret and a chip conveyor. If you are looking to get high-quality turning capabilities, consider the FFG DMC DL 25SY machine we have for sale. Contact us for more information.
Overview
- brand: FFG
- year: 2019
- MODEL: DMC DL 25SY
- application type: Turning
- Location: Italy
- machine type: Horizontal Turning Machine
- availability: Immediately
- control unit brand: FANUC
Technical Information - FFG DMC DL 25SY
Control Unit
- Brand: FANUC
- Model: Series 0i TF
Main drive
- Spindle speed range: 3500 1/MIN
- Spindle motor power: 18/22 kW
- Tool taper: ASA A2-8
- Number of axis: 4
Media
- Chip conveyor: Yes
Additional Equipment
- - Tool presetter
- - Auto shutdown
- - High pressure coolant pump 50 bar
- - Part catcher with parts discharge belt
- - Sub-spindle part ejector
- - Bar feeder interface
- - Electric automatic door
- - Robot interface
Additional Information
- Technical Machine Benefits:
- - Main spindle chuck: 10"
- - Sub-spindle: speed - 4000 rpm, asa a2-6, chuck - 8", power - 11/15 kw
- - Max torque: 754 nm
- - Max turning diameter: 400 mm
- - Max turning length: 1000 mm
- - Type: 12-position servo-driven, motorized turret bmt55
- - Machine still under power
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
