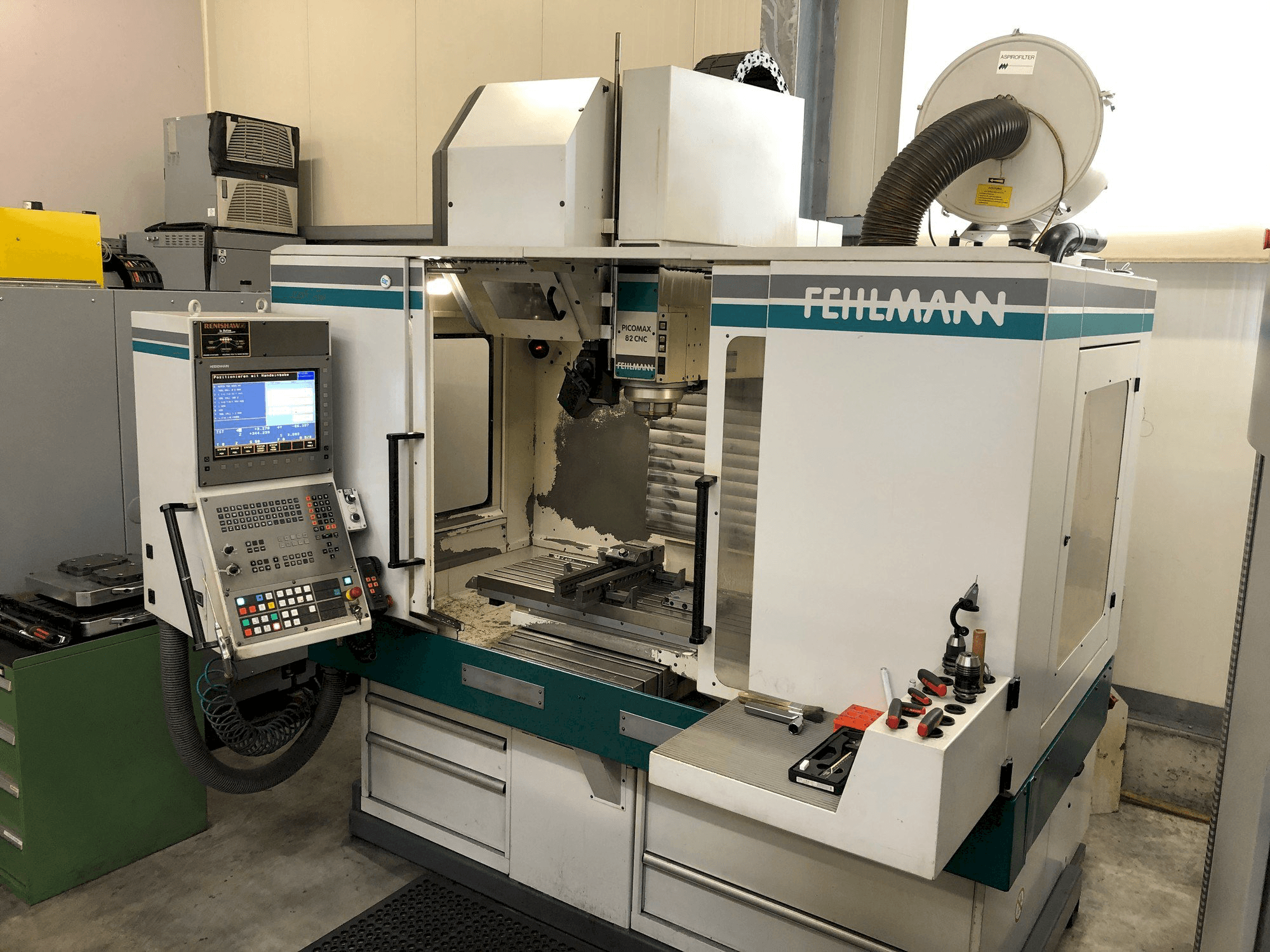

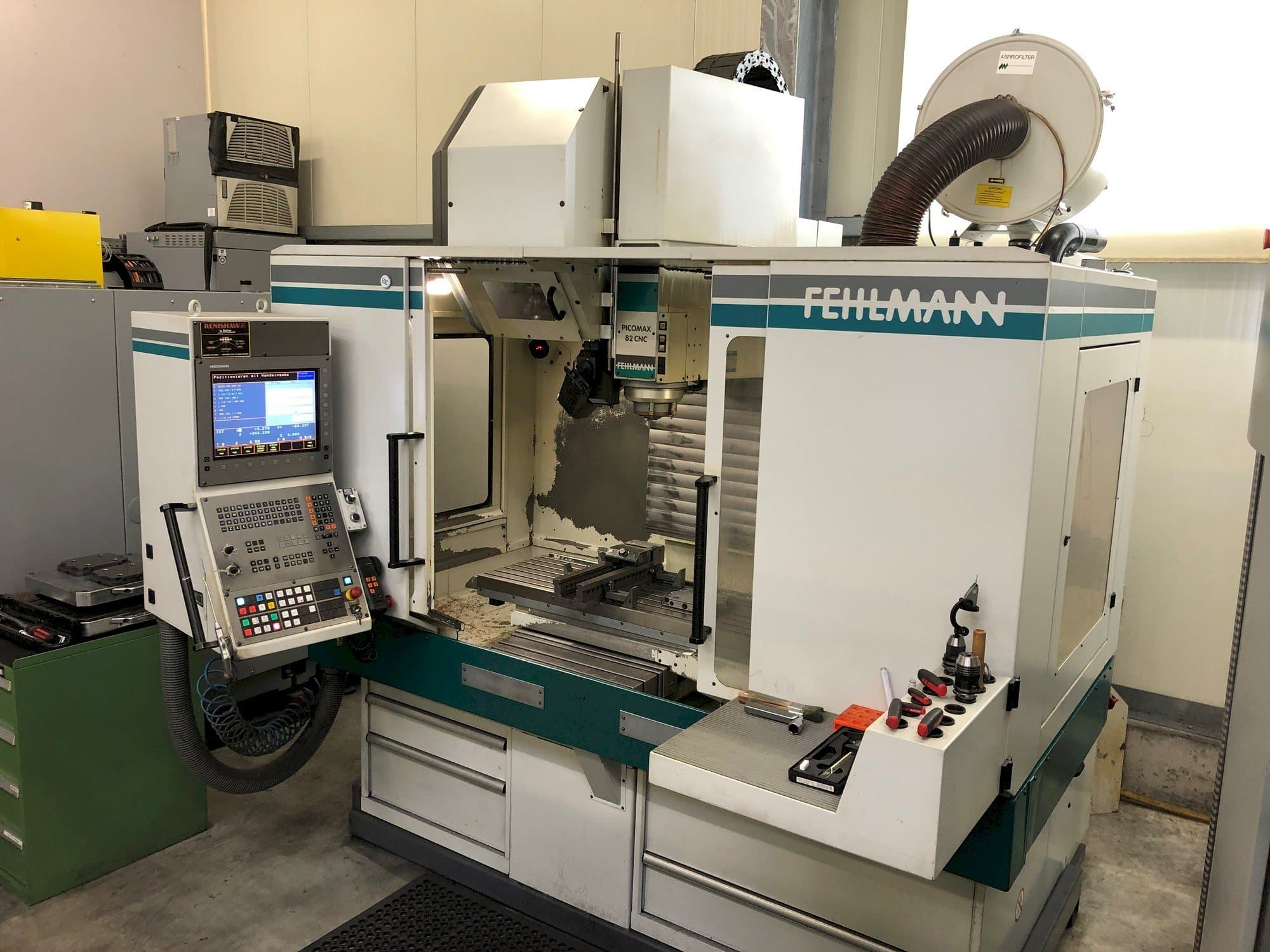

Front view of FEHLMANN PICOMAX 82 CNC machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

FEHLMANN PICOMAX 82 CNC

Photo Gallery

FEHLMANN - PICOMAX 82 CNCDE-MIL-FEH-1997-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
FEHLMANN PICOMAX 82 CNC

Show in original language

This FEHLMANN PICOMAX 82 CNC Vertical Machining Center was built in the year 1997 in Switzerland. It has a record of 41785 hours, of which approximately 19005 are spindle hours. This 3 axis machine is equipped with a HEIDENHAIN TNC 426 control unit. It works with a spindle speed range 50 - 16000 rpm.

Overview

brand: FEHLMANN
year: 1997
MODEL: PICOMAX 82 CNC
production hours: 41785
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
control unit brand: HEIDENHAIN

Technical Information - FEHLMANN PICOMAX 82 CNC

General Data

Measurements width: 3200 mm
Measurements depth: 2800 mm
Measurements height: 2750 mm
Machine weight: 4500 kg

Control Unit

Model: TNC 426
Brand: HEIDENHAIN

Main drive

Number of spindles: 1
Spindle speed range: 50 - 16000 1/MIN
Spindle motor power: 11 kW
Number of axis: 3

Movement

X-AXIS Movement: 685 mm
X-AXIS Feed Force: 6000 N
X-AXIS Rapid traverse: 12 m/min
Y-AXIS Movement: 315 mm
Y-AXIS Feed Force: 6000 N
Y-AXIS Rapid traverse: 12 m/min
Z-AXIS Movement: 540 mm
Z-AXIS Feed Force: 12000 N
Z-AXIS Rapid traverse: 15 m/min

Table

Outer length: 1230 mm
Outer width: 410 mm
Height adjustment: 1010 mm
Distance between: 50 mm
Inner width: 12-H8 mm
Min distance between vertical spindle and table: 0 - 125 mm
Max distance between vertical spindle and table: 670 mm
Table load: 250 kg

Tools

Max weight: 3 KG
Max tool diameter: All places occupied 63 MM - Free spaces required 100 MM
Max tool length: 260 MM

Media

Main electronic connection: 3 X 400 V / 50 Hz
Power consumption: 20 kW

Additional Information

Machine Benefits

Technical Machine Benefits

Speed: x- and y-axis 1 - 12'000 mm/min - z-axis 1 -15000 mm/min

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
