Feeler NBP 1000A

Photo Gallery

Feeler - NBP 1000ADE-MIL-FEE-2016-00002

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Feeler NBP 1000A For Sale | gindumac.com

Show in original language

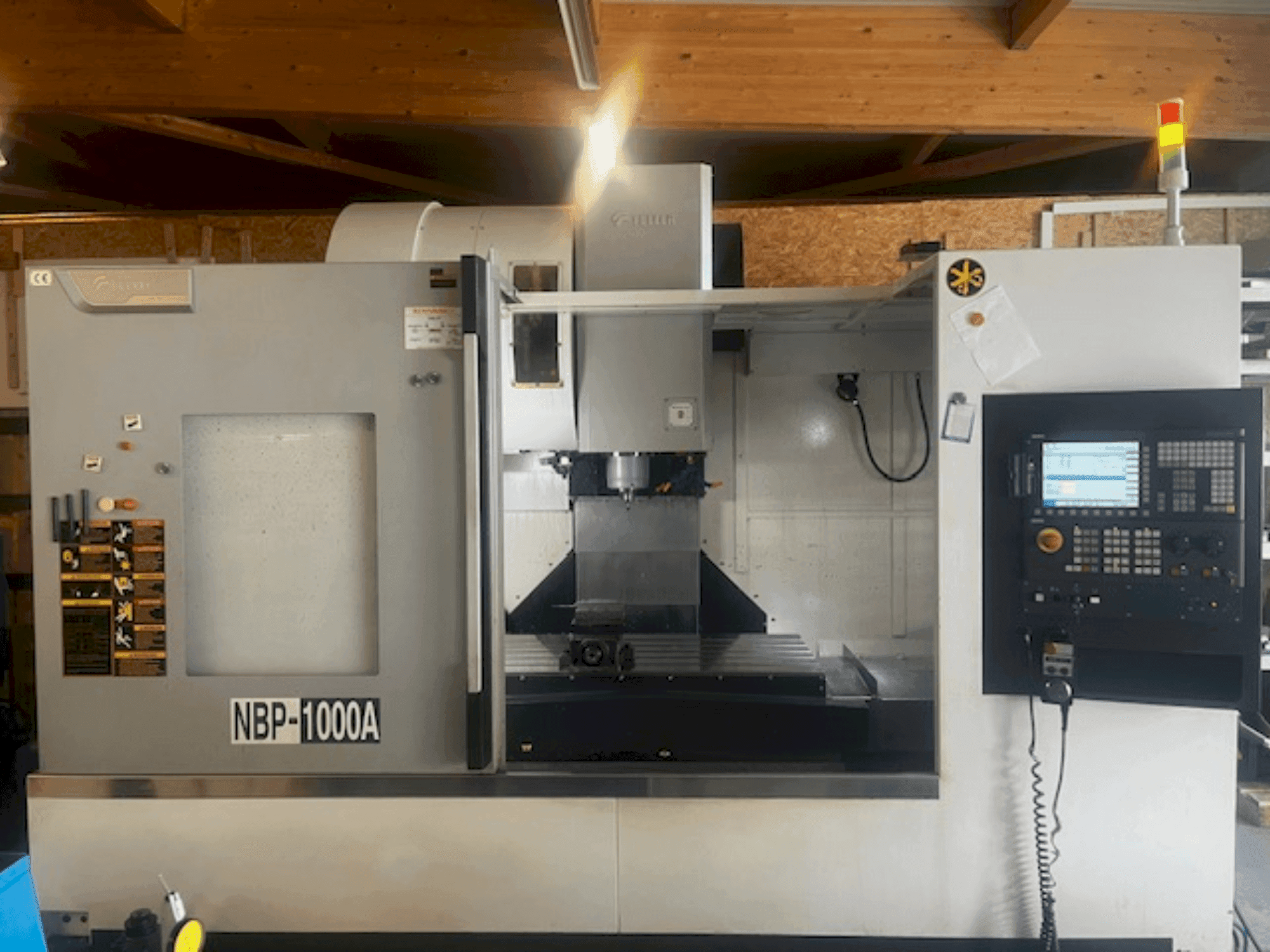

This 3-axis Feeler NBP 1000A vertical machining center was manufactured in 2016. It features a robust structure with Meehanite fine-lamella cast iron and heat-treated guideways for superior machining performance. The spindle operates at 10,000 rpm, supported by angular contact ball bearings and a temperature-controlled cooling unit. It includes a 30-station tool magazine with a double-arm changer and a Siemens Sinumerik 828D control system. Consider the opportunity to buy this Feeler NBP 1000A vertical machining center. Contact us for more information.

Overview

brand: Feeler
year: 2016
MODEL: NBP 1000A
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
control unit brand: SIEMENS

Technical Information - Feeler NBP 1000A

Control Unit

Control Brand: SIEMENS
Control Model: Sinumerik 828D

Movement

Number of Axes: 3
X-axis Travel: 1000 mm
Y-axis Travel: 610 mm
Z-axis Travel: 600 mm

Technical Specification

Max. Tool Weight: 8 kg
Spindle Power: 22.5 kW
Spindle Speed: 10000 RPM

Additional Information

Additional equipment

Pump pressure: 30 bar
Cartridge filter to protect the spindle rotary feedthrough
Fully enclosed with large doors and maintenance access
Prepared for oil mist extraction (Ø 200 mm)
Flushing nozzles on both sides
Screw/hinge belt conveyor
Chip bucket included
Ejector on the left, mounted on the front

Machine Benefits

Qualitative Machine Benefits

Comissioning was in 2018

Technical Machine Benefits

Robust, heat-treated spindle (58–62 hrc)
Temperature-controlled cooling unit for thermal stability
Front bearings: 4 angular contact ball bearings (Ø 70 mm)
Rear bearings: 2 angular contact ball bearings (Ø 60 mm)
Main drive siemens 1ph8133
Torque: 143 nm at 40% duty cycle (up to 1500 rpm)

Extra Information

Optional expansions: Rotary table preparation: Interface for NC rotary table (without axis module/servo drive) Workpiece measurement: Renishaw OMP60 probe Contact, optical signal transmission Ruby ball Ø 6 mm, length 50 mm IPX8, battery-operated Incl. OMI-2T transmission module Note: Tool holder not included in delivery. Optional: screw compressor. Control Unit SIEMENS Sinumerik 828D 10.4" color LCD User interface: SINUMERIK Operate with ShopMill Guide dimensions: X-axis: Guide width 90 mm, guide spacing 450 mm Y-axis: Guide width 143 mm, guide spacing 1210 mm Z-axis: Guide width 90 mm, guide spacing 450 mm Tools Pull stud: DIN 69872 (SK 40) Tool magazine: 30-station tool magazine Double-arm tool changer, change time: 2.5 s Injection Unit Coolant system: Flood cooling with ring nozzles around the main spindle Pump pressure: 2.5 bar, flow rate: 85 l/min Separate tank: 250 liters Integrated slideway oil return

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
