- ➤ Used FANUC ROBODRILL Alpha-T21iFL | Machining Center

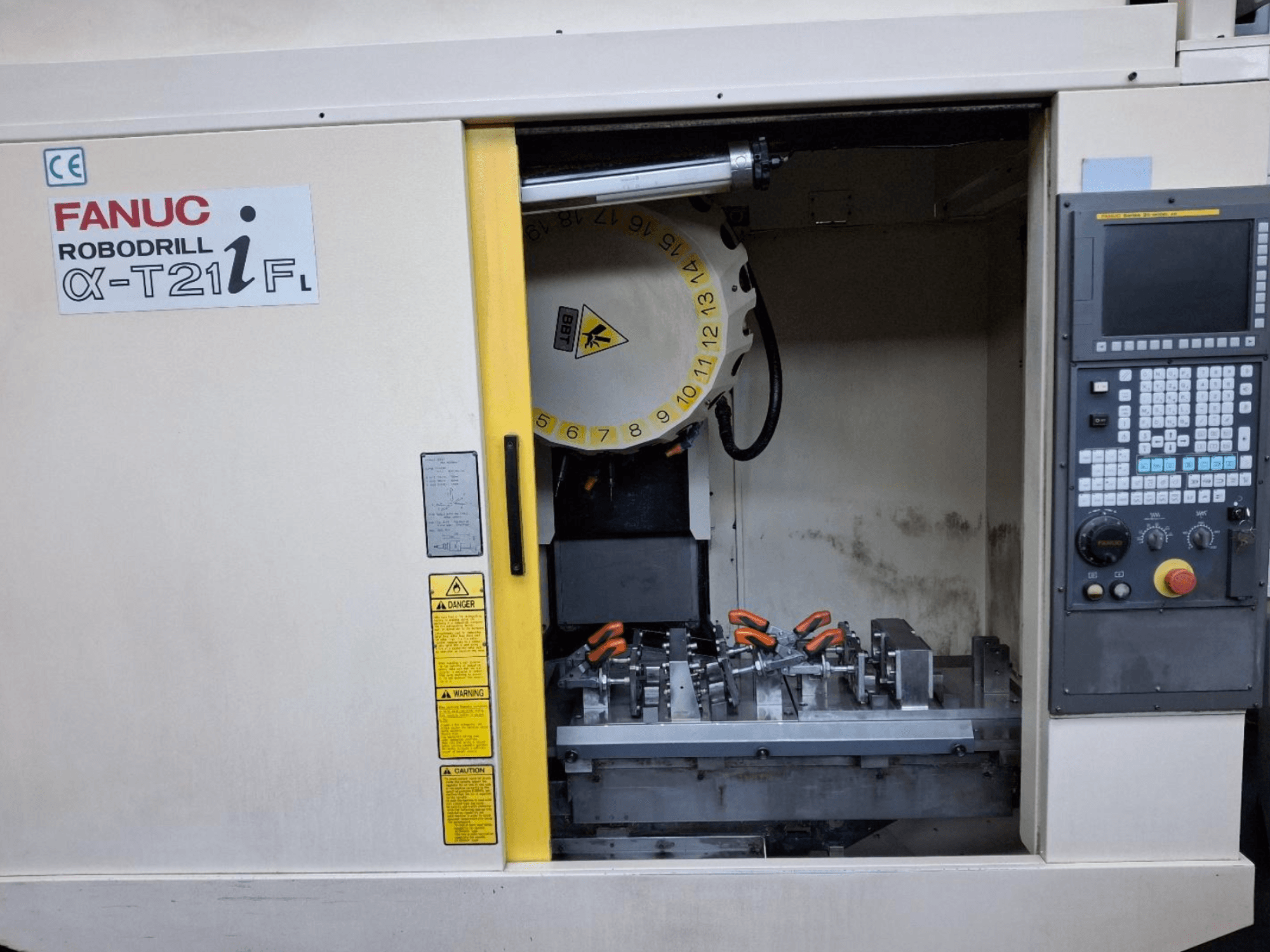

This 3-axis FANUC ROBODRILL Alpha-T21iFL was manufactured in 2008. It features an X-axis travel of 700 mm, Y-axis travel of 400 mm, and Z-axis travel of 330 mm. The machine has a rapid traverse rate of 54,000 mm/min and a spindle speed of 10,000 RPM. If you are looking to get high-quality drilling, tapping, and milling capabilities, consider the FANUC ROBODRILL Alpha-T21iFL vertical machining centre we have for sale. Contact us for further details.
Overview
- brand: FANUC
- year: 2008
- MODEL: ROBODRILL Alpha-T21iFL
- production hours: 10294
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
- control unit brand: FANUC
Technical Information - FANUC ROBODRILL Alpha-T21iFL
Control Unit
- Control Brand: FANUC
- Control Model: 31i-A5
Dimensions
- Machine Height: 2336 mm
- Machine Length: 2027 mm
- Machine Weight: 2000 kg
- Machine Width: 1565 mm
- Table Length: 650 mm
- Table Load: 300 kg
- Table Width: 400 mm
Movement
- Number of Axes: 3
- X-axis Travel: 700 mm
- Y-axis Travel: 400 mm
- Z-axis Travel: 330 mm
Technical Specification
- Max. Tool Weight: 2 kg
- Spindle Power: 5.5 kW
- Spindle Speed: 10000 RPM
- Tool Stations: 21
Additional Information
Control Model: FANUC 31i-A5
Table T-Slots: 3
T-Slot Size: 14 mm
T-Slot Pitch: 125 mm
Distance Table to Spindle Nose: 250 – 580 mm
Rapid Traverse Rate: 54,000 mm/min
Feed Rate: 1 – 30,000 mm/min
Acceleration: 1.5 G
Continuous Spindle Power: 3.7 kW
Spindle Taper: BBT30 Big Plus
Tool Holder: BT30
Tool Magazine Capacity: 21
Maximum Tool Length: 250 mm
Tool Change Time: 1.6 sec
Positioning Accuracy: 0.006 mm / 300 mm
Repeatability: ±0.002 mm
Memory Capacity: 512 KB
Display Size: 10.4 in
Signal Lamp
Coolant Tank Capacity: 200 L
Power Supply: 400 V / 50 Hz
Air Pressure Requirement: 0.35 – 0.5 MPa
Power-On Hours: 24,133 h
Run Time: 10,294 h
Application: High-Speed Drilling, Tapping and Milling of Precision Components
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
