- FANUC M20iA12L 6-axis robot + Fanuc iR Vision
Show in original language

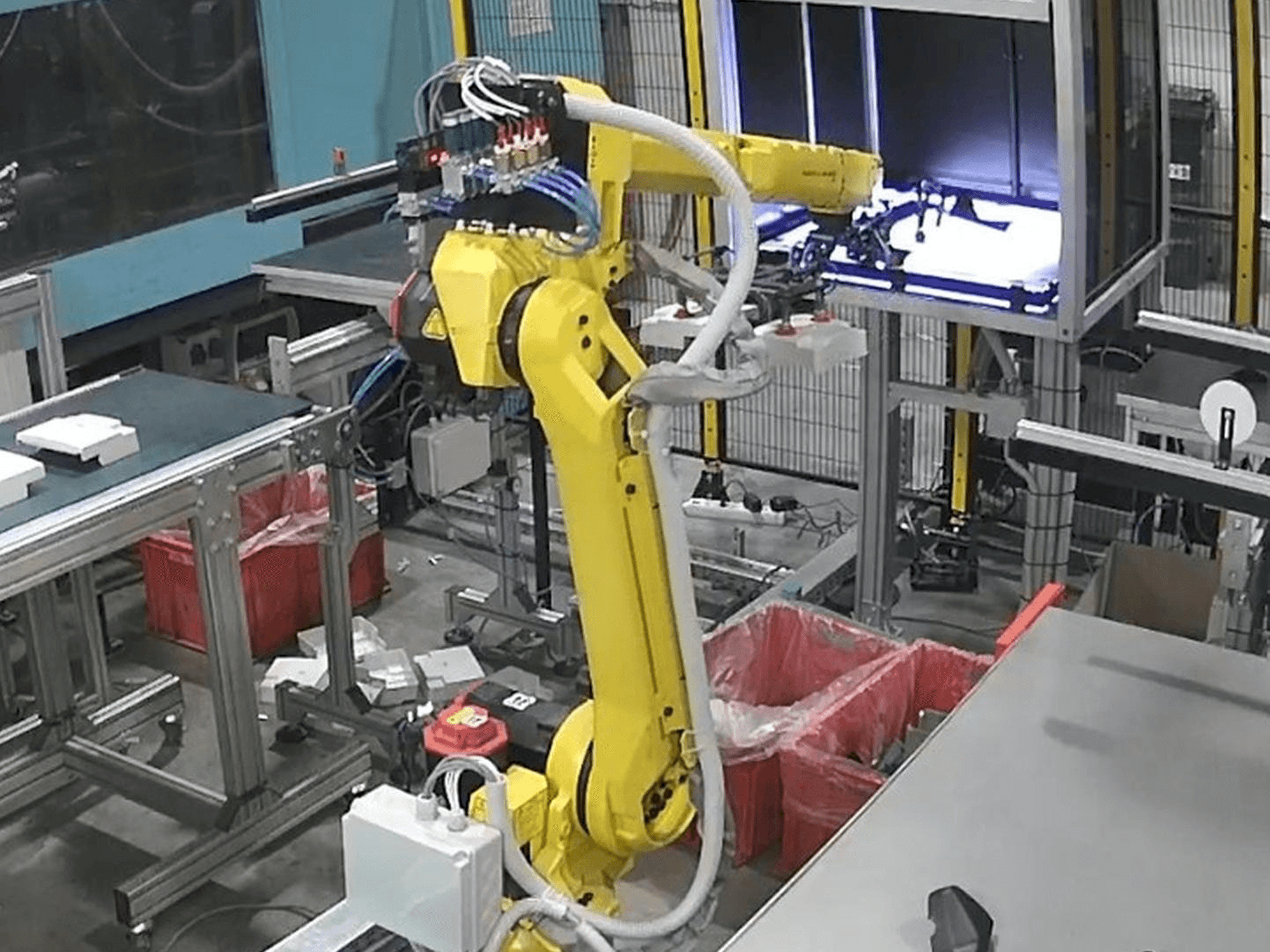

This FANUC M20iA12L 6-axis robot + Fanuc iR Vision was made in the year 2019 and has 500 hours. It is controlled by R-30iB Plus. The robot has a repeatability of ± 0.03* and a Robot footprint of 343 x 343 mm.
Overview
- brand: FANUC
- year: 2019
- MODEL: M20iA12L
- production hours: 500
- application type: Robotics
- Location: Poland
- machine type: Robot Arm
Technical Information - FANUC M20iA12L
Dimensions
- Machine Weight: 250 kg
Additional Information
Additional equipment
- Options included - Fanuc iR Vision
Machine Benefits
Technical Machine Benefits
- 6-axis robot + fanuc ir vision
- Repeatability - ± 0. 03*
- Motion range: j1 - 340 (370) deg, j2 - 260 deg , j3 - 475 deg, j4 - 400 deg, j5 - 360 deg, j6 - 900 deg
- Max speed: j1 - 210 deg/s, j2 - 210 deg/s, j3 - 265 deg/s, j4 - 420 deg/s, j5 - 450 deg/s, j6 - 720 deg/s
- J4 - moment/inertia: 22 / 0. 65 nm/kgm2, j5 - moment/inertia: 22/ 0. 65 nm/kgm2, j5 - moment/inertia: 9. 8/0. 17 nm/kgm2
- Robot footprint – 343 x 343 mm
- Mounting position floor: yes
- Mounting position upside down: yes
- Mounting position angle: yes
Extra Information
Fanuc iR Vision – included in the price
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
