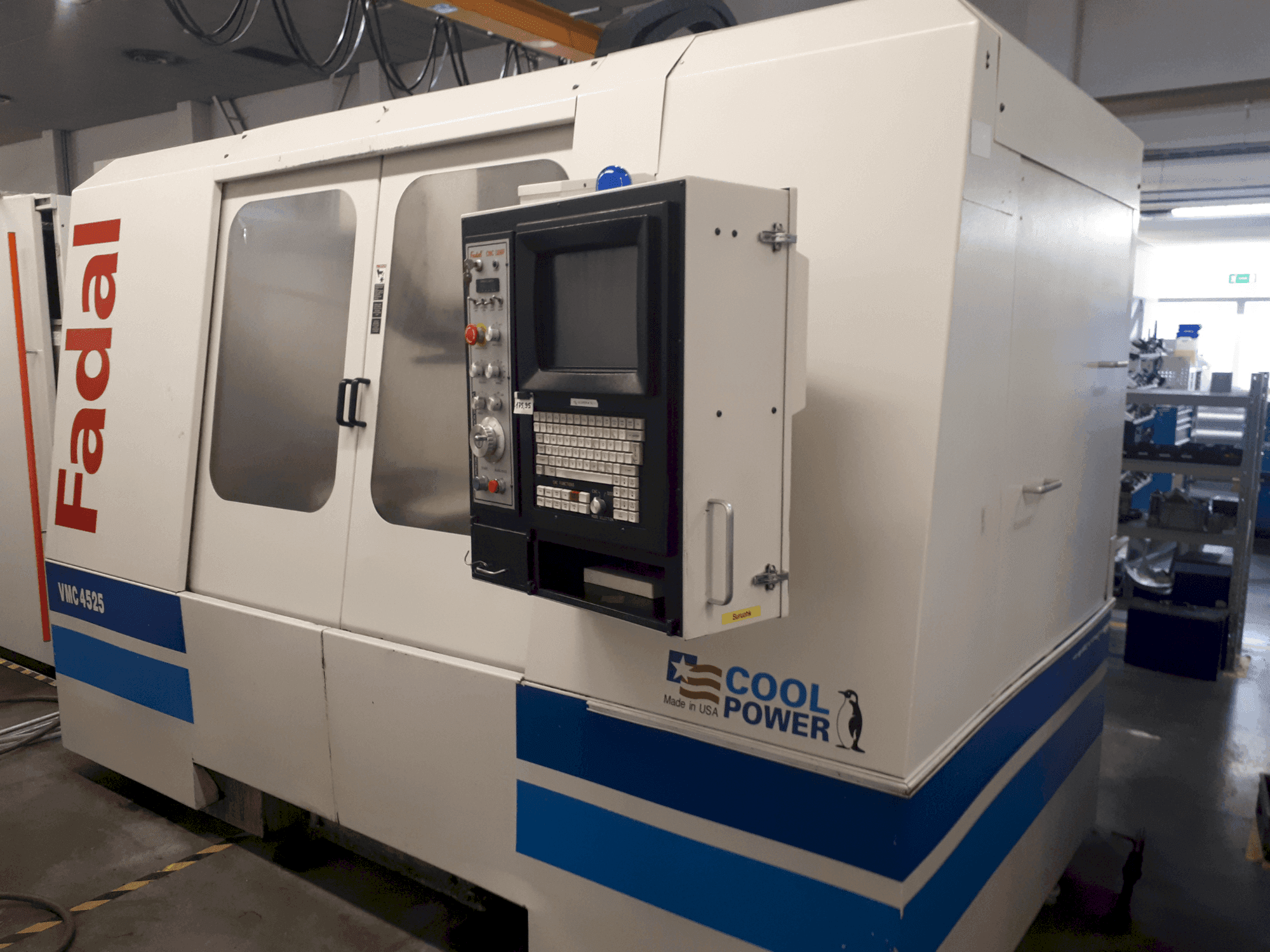

Front view of FADAL VMC4525 machine
Front view of FADAL VMC4525 machine

FADAL - VMC4525 EE-MIL-FAD-2000-00001

£ 10,486
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 3-axis Fadal VMC4525 was manufactured in 2000. A robust vertical machining center featuring a Fadal CNC 88HS control, it offers X/Y/Z travels of 1,143/635/610 mm and a table size of 1,359 × 635 mm. It supports a maximum workpiece weight of 1,928 kg and includes a 24-tool capacity magazine. Ideal for complex milling tasks. Contact us for more information about this machine.

Overview

  • brand: FADAL
  • year: 2000
  • MODEL: VMC4525
  • application type: Milling
  • Location: Estonia
  • machine type: Vertical Machining Centre

Technical Information - FADAL VMC4525

Dimensions

  • Machine Depth: 3250 mm
  • Machine Height: 3040 mm
  • Machine Weight: 6169 kg

Movement

  • Number of Axes: 3
  • X-axis Travel: 1143 mm
  • Y-axis Travel: 635 mm
  • Z-axis Travel: 610 mm

Technical Specification

  • Max. Tool Weight: 6.8 kg
  • Spindle Speed: 10000 RPM

Additional Information

  • Table size: 1,359 × 635 mm

  • Floor to table height: 787 mm

  • T-slots: 5 × 18 mm, 125 mm spacing

  • Spindle nose to table: 102–610 mm

  • Spindle center to column ways: 708 mm

  • Spindle orientation: Electromechanical

  • Spindle motor: 16.8 kW (22.5 HP), 2-speed vector drive

  • Optional high-torque motor: 22.4 kW (30 HP), 270 ft-lbs torque

  • Torque: 300 Nm (standard) / 375 Nm (optional)

  • Axis drive motors (X/Y/Z): AC, 16,903 N peak thrust

  • Ball screw diameter (X/Y/Z): 40 mm

  • Cutting feed rate: 0.25–10,160 mm/min (15,240 mm/min max @150%)

  • Tool changer: Dual arm, random, bi-directional

  • Tool magazine capacity: 24 tools

  • Tool change time: 1.9 s

  • Positioning accuracy: ±0.004 mm

  • Repeatability: ±0.0015 mm

  • Glass scales: Optional on X/Y/Z

  • Coolant: Spindle, headstock, and ballscrews cooled

  • Air requirement: 5.5 bar (120 psi, 15 scfm)

  • Electrical requirement: 230 VAC, 40/60 A (or 480 VAC, 20/25 A)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
