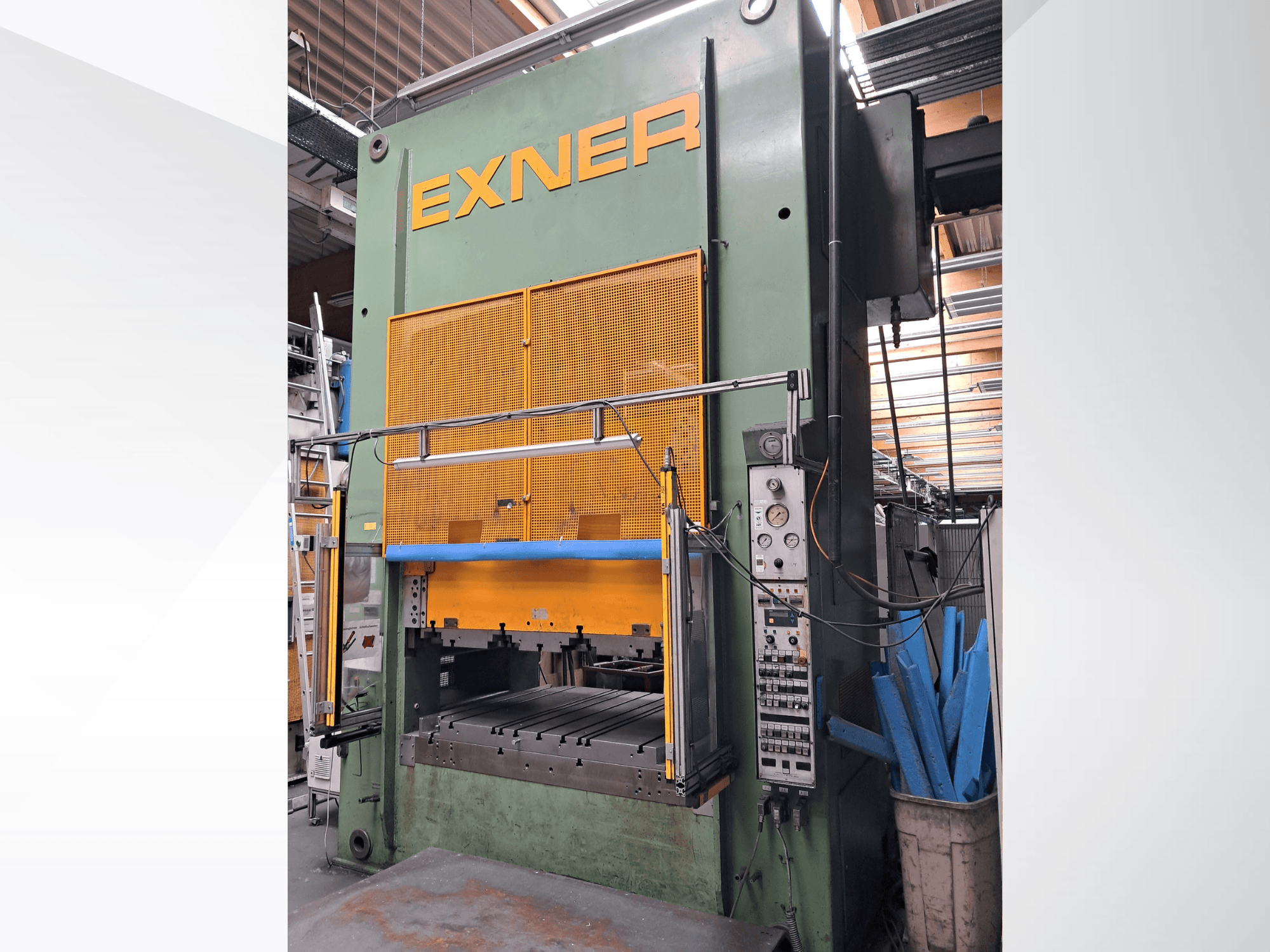

Hydraulic press manufactured in 1994. This EXNER EX SBR 150 features a pressing force of 1500 kN and a drive power of 46.5 kW. It has an oil capacity of 1300 liters and weighs 27000 kg. The machine is equipped with integrated front safety light curtains, protective yellow mesh guarding, and an operator control panel. If you are looking to get high-quality pressing capabilities, consider the EXNER EX SBR 150 machine we have for sale. Contact us for further details.
Overview
- brand: EXNER
- year: 1994
- MODEL: EX SBR 150
- application type: Bending
- Location: Germany
- machine type: Hydraulic Press
Technical Information - EXNER EX SBR 150
Dimensions
- Machine Height: 4830 mm
- Machine Length: 3000 mm
- Machine Weight: 30000 kg
- Machine Width: 4870 mm
- Table Length: 1300 mm
- Table Width: 1810 mm
Technical Specification
- Pressing Force: 1500 Kn
Additional Information
- Nominal Force: 1500 kN
- Total Power Requirement: 46.68 kW
- Oil Capacity: 1300 liters
- Overrun Distance: 48 mm
- Safety Distance: 216 mm
- Overrun Time: 135 ms
- Distance Between Columns: 1830 mm
- Shut Height (Min. Distance Table-Ram): 1200 mm
- Max. Ram Stroke: 700 mm
- Stroke Adjustment: 300 mm
- Return Force: 175000 N
- Number of Pressure Pistons: 1
- Pressure Piston Diameter: 320 mm
- Table Thickness: 1500 mm
- T-Slots: 4 slots, 22 mm width, 500 mm spacing
- Total Connected Load: 0.500 kVA
- Voltage: 400 V
- Frequency: 50 Hz
- Main Motor Power: 30 kW (1460 rpm)
- Oil Reservoir Capacity: 1380 liters (ISO VG46)
- Components: Equipped with integrated front safety light curtains, protective yellow mesh guarding, an integrated operator control panel on the frame, and a standalone main electrical control enclosure. Includes an additional die component plate.
- Included Accessories / Special Equipment: Cutting impact damping cylinders, Air oil cooler, Ram motor lubrication pump, 2-fold ram catch lock, 8-fold guidance, Tool protection, Maintenance platform
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
