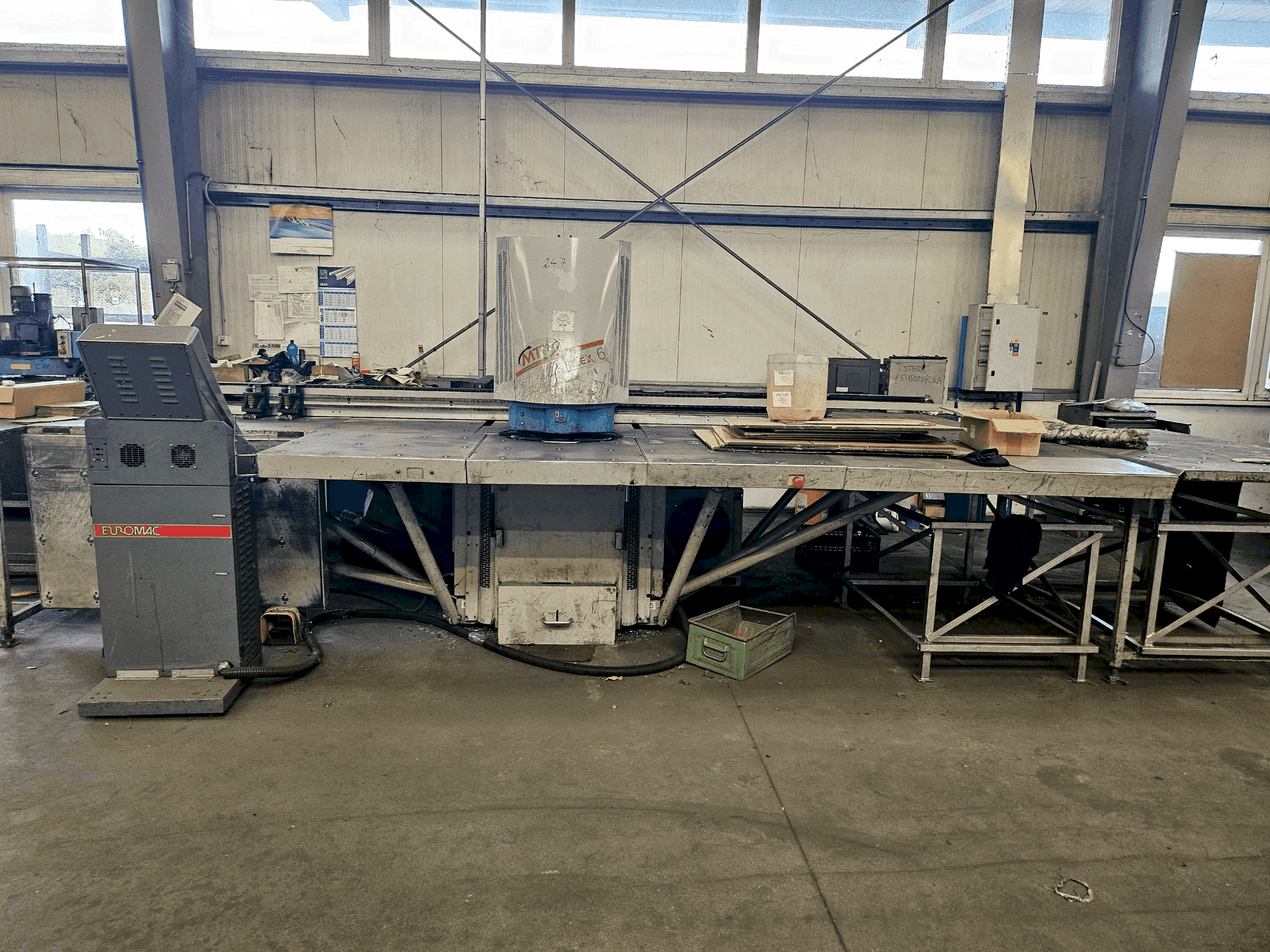

Front view of Euromac MTX Flex 6  machine

Euromac - MTX Flex 6AT-BEN-EUR-2011-00001

£ 32,400
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This Euromac MTX Flex 6 turret punch press was manufactured in 2011. It features a maximum punching force of 300 kN and can handle sheet weights up to 150 kg. The machine includes a servomotor-controlled hydraulic system and supports a maximum punching diameter of 85 mm at Autoindex stations. Ideal for high-speed operations, it offers up to 375 strokes per minute at 20 mm pitch. For more information about this turret punch press, please reach out to us.

Overview

  • brand: Euromac
  • year: 2011
  • MODEL: MTX Flex 6
  • application type: Bending & Punching
  • Location: Austria
  • machine type: Turret Punch Press
  • availability: Immediately

Technical Information - Euromac MTX Flex 6

General Data

  • Measurements width: 3630 mm
  • Measurements depth: 4850 mm
  • Machine weight: 8500 kg

Main drive

  • Punching force: 300 kN
  • Stroke adjustment: Yes
  • Number of axis: 2

Movement

  • X-AXIS Movement: 2500 mm
  • Y-AXIS Movement: 1250 mm

    Additional Equipment

    • - Tank capacity: 135 liters

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Stroke adjustment: 0. 1 to 31 mm
        • - Punching accuracy, shape repeatability accuracy, autoindex features
        • - Automatic repositioning: up to 10000 mm
        • - Hydraulic system: controlled by a servomotor (standard)
        • - Clamp aperture: 11 mm
        • - Operating system: windows® 7 - 64bit
        • - Usb ports: 6
        • - Installed power: 8. 5 kw
        • - Average power draw: 4. 5 kw/h
        • - Workpiece:maximum punching diameter: 85 mm

      Extra information

      • - Machine still under power

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
