Euromac - MTX Flex 6 HybridCZ-PUN-EUR-2014-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Sheet Metal Machinery
- Euromac MTX Flex 6 Hybrid Turret Punching Machine

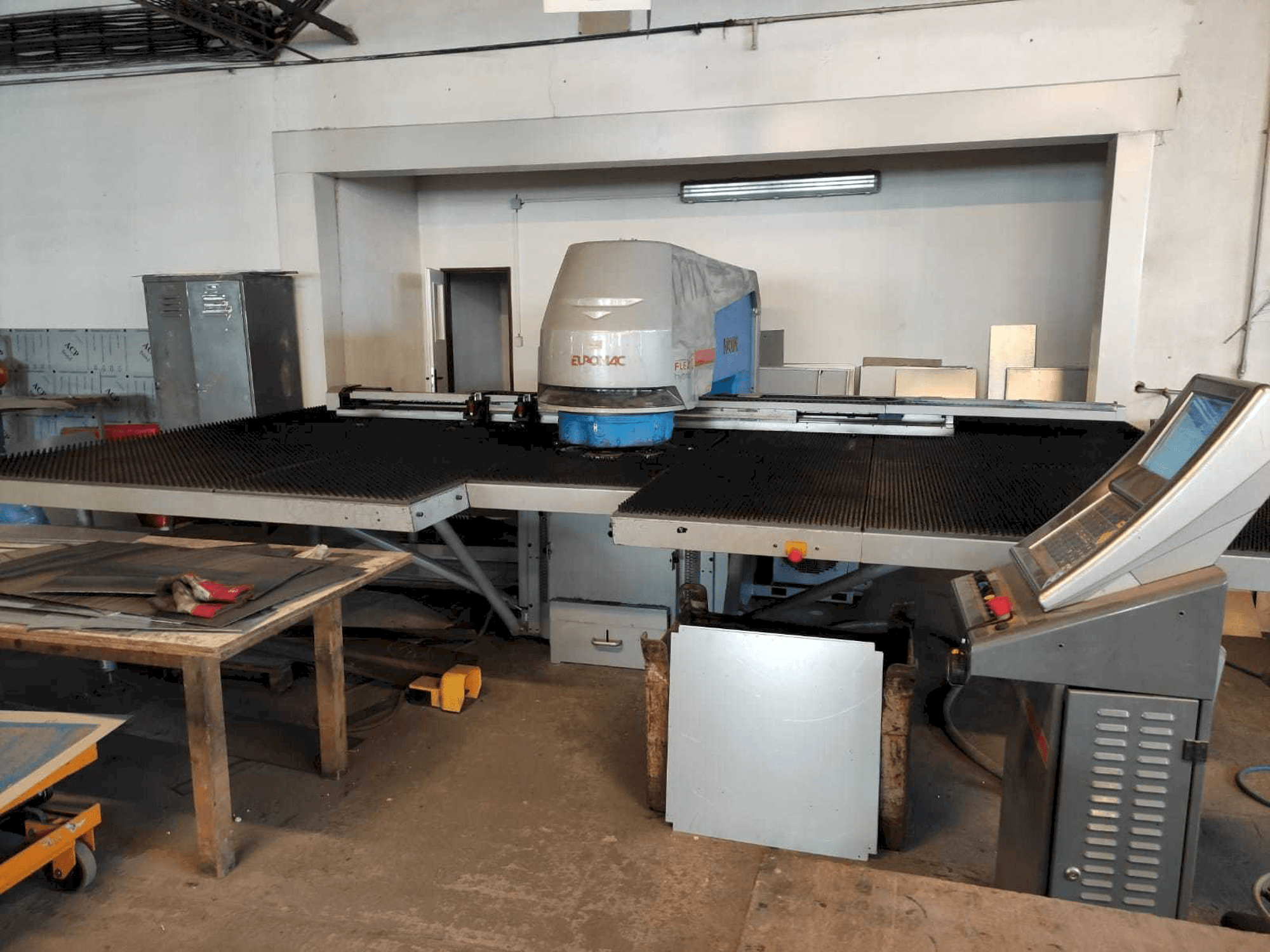

This Euromac MTX Flex 6 Hybrid Turret Punching Machine from 2014 was manufactured in Italy. It has an overall working time of 19803 hours, of which 12495 are hydraulics on time. Operated through a control unit of the same brand. This machine works with a punching force 220 kN. It is in very good conditions.
Overview
- brand: Euromac
- year: 2014
- MODEL: MTX Flex 6 Hybrid
- production hours: 19803
- application type: Punching
- Location: Czech Republic
- machine type: CNC Punch Press
Technical Information - Euromac MTX Flex 6 Hybrid
Dimensions
- Machine Depth: 3880 mm
- Machine Weight: 8800 kg
Movement
- X-axis Travel: 2500 mm
- Y-axis Travel: 1500 mm
Technical Specification
- Max. Sheet Thickness: 5 mm
- Punching Force: 220 Kn
Additional Information
Machine Benefits
Qualitative Machine Benefits
- Very good conditions
- Low hours
Technical Machine Benefits
- Large working area
- Position accuracy (mm) +/- 0. 05
- Precision in forming repeatability (mm) +/- 0. 1
- Bidirectional autoindex stations 3
- Opening of clamps (mm) 11
- Automatic positioning clamps 2
- Thickness range (mm) 0. 6 - 5
- Installed power (kw) 8. 5
- Max. Hit rate (1/min): punching with 20 mm pitch - 375; nibbling with 1 mm pitch - 1000; marking - 2000
- Multitool xmte 6
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
