Euromac - 1250 STX Flex 12 HybridES-PUN-EUR-2016-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Sheet Metal Machinery
- ➤ Used Euromac 1250 STX Flex 12 Hybrid | Punching Machine

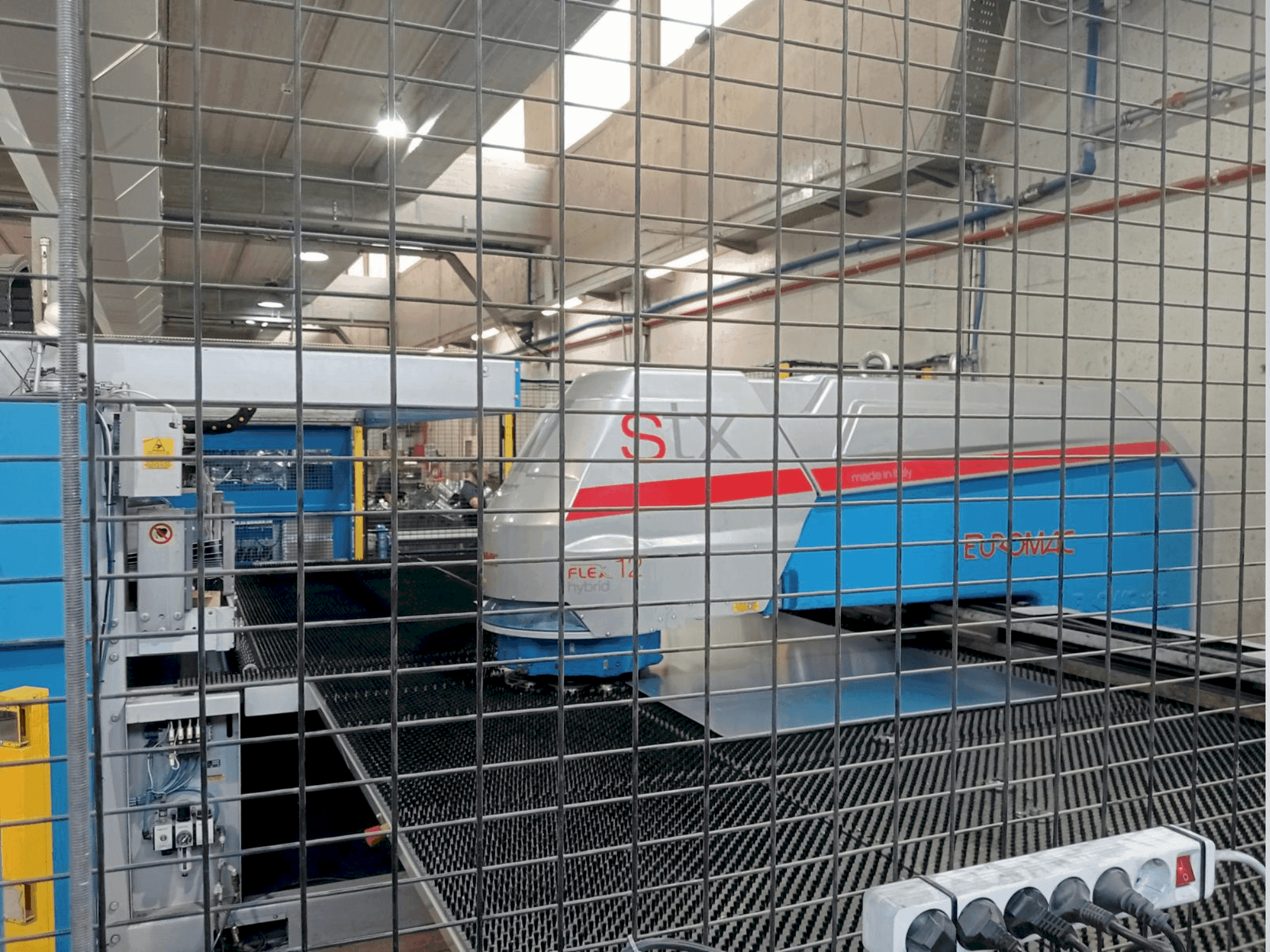

This Euromac 1250 STX Flex 12 Hybrid was manufactured in 2016. A robust punching machine with a maximum punching force of 300 kN and a thickness range of 0.6 to 6 mm. It features a numerically controlled stroke depth from 0.1 to 31 mm and bidirectional autoindex stations. Ideal for high precision tasks, the machine we have for sale supports a max. sheet weight of 150 Kg at reduced axis speed. Contact us for further details regarding this punching machine.
Overview
- brand: Euromac
- year: 2016
- MODEL: 1250 STX Flex 12 Hybrid
- application type: Punching
- Location: Spain
- machine type: CNC Punching Machine
Technical Information - Euromac 1250 STX Flex 12 Hybrid
Movement
- Number of Axes: 2
- X-axis Travel: 2250 mm
- Y-axis Travel: 1250 mm
Technical Specification
- Max. Sheet Thickness: 6 mm
Additional Information
Additional equipment
- Hydraulic Servomotor Controlled System: Standard
- Bidirectional Autoindex Stations: 3
- USB Port: 6
Machine Benefits
Technical Machine Benefits
- Average consumption: 4. 5 kw/h
- Max sheet weight at reduced axis speed: 150 kg
- Numerically controlled stroke depth: 0. 1 to 31 mm
- Opening of clamps: 11 mm
- Automatic positioning clamps: 2
- Punching with 20 mm pitch: 375
- Nibbling with 1 mm pitch: 1000
- Marking: 2000
- Advanced positioning and accuracy with hydraulic servomotor controlled system
Extra Information
Machine still under power
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
