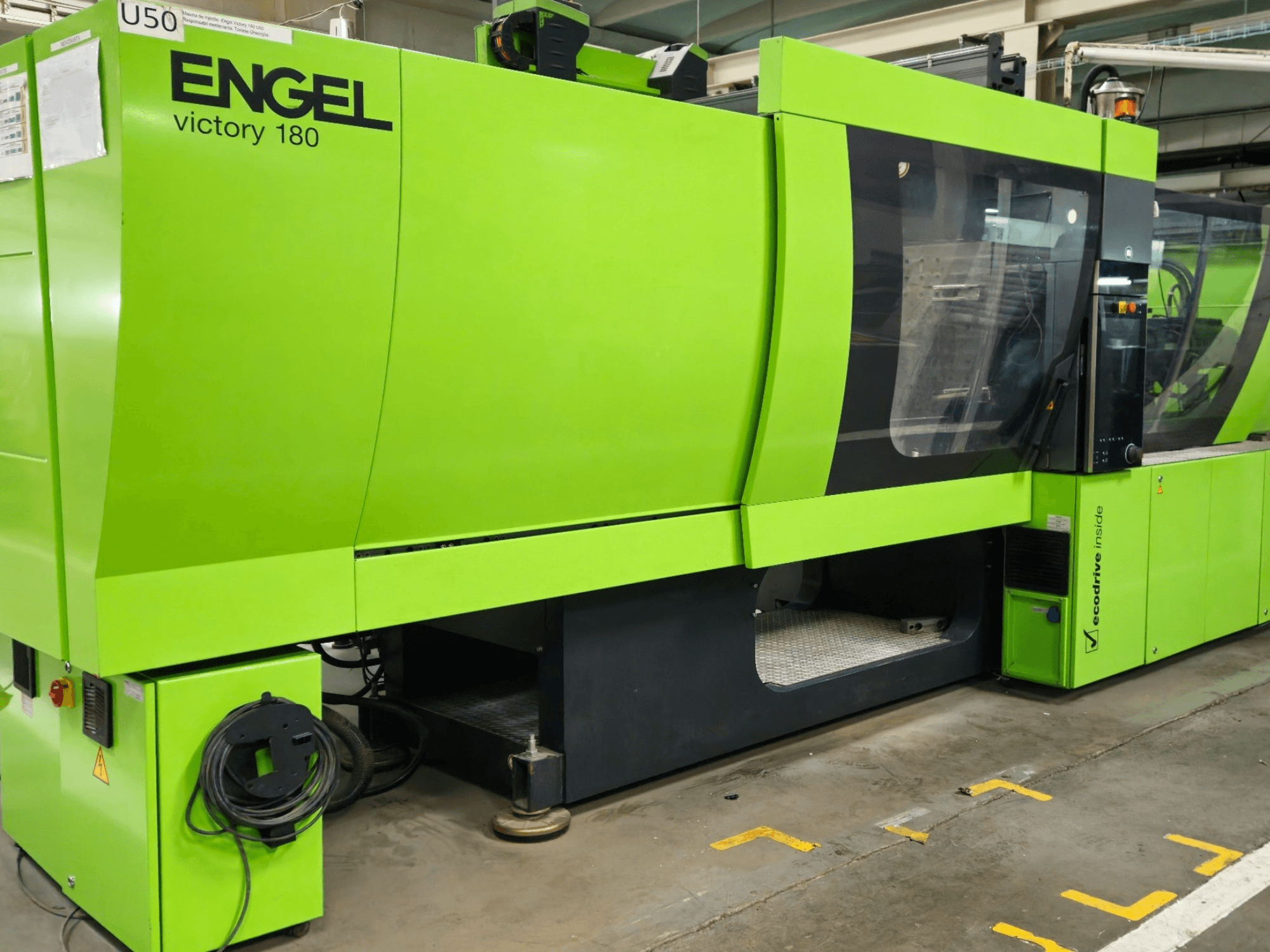

This Engel VICTORY 750/180 tech was manufactured in 2015. It features a tie-bar-less design, enhancing flexibility and accessibility for various mould sizes. With a clamping force of 1,800 kN and a screw diameter of 50 mm, it supports a maximum injection volume of 393 cm³. Currently in production and in excellent condition, this machine also includes a robot interface EUROMAP 67. Contact us for more information about this machine.
Overview
- brand: Engel
- year: 2015
- MODEL: VICTORY 750/180 tech
- production hours: 47013
- application type: Injection Moulding
- Location: Romania
- machine type: Hydraulic Injection Moulding Machine
Technical Information - Engel VICTORY 750/180 tech
Dimensions
- Machine Height: 2300 mm
- Machine Length: 5861 mm
- Machine Weight: 12200 kg
Technical Specification
- Clamping Force: 1800 kN
- Screw Diameter: 50 mm
Additional Information
Condition: Excellent
Status: In production
Operating hours: 47,013 h
Maximum injection volume: 393 cm³
Minimum mould height: 292 mm
Maximum mould height: 1,049 mm
Platen opening stroke: 757 mm
Platen dimensions (W × L): 880 × 830 mm
Tie-bar distance: Tie-bar-less design
Motor power: 34 kW
Heater power: 15.35 kW
Electrical connection pins: 16
Injection nozzle radius (tip): R35
Centering ring diameter: 125 mm
Robot interface: EUROMAP 67
Number of cores: 0
Number of heating zones: 0
Additional equipment
Equipped with robot: Yes
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
