Engel - DUO 5550/800 HU-INJ-ENG-2003-00002
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Plastics Processing Machinery
- ➤ Used Engel DUO 5550/800 For Sale | gindumac.com

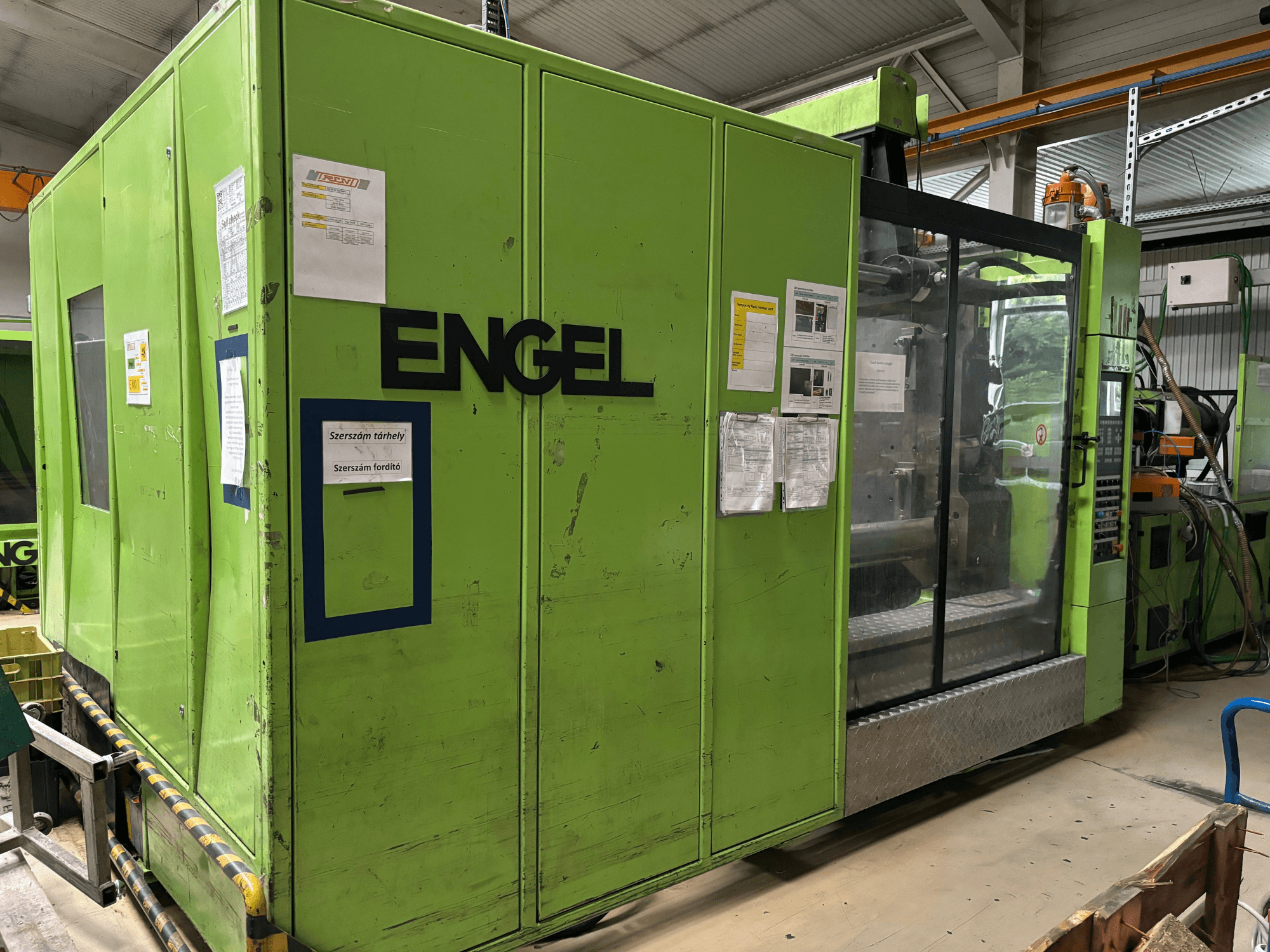

Hydraulic injection moulding machine manufactured in 2003. This Engel DUO 5550/800 features a clamping force of approximately 800 tons and a screw diameter of about 90 mm. It has a shot volume of around 2700 cm³ and a maximum injection pressure of approximately 1900 bar. If you are looking to get high-quality injection moulding capabilities, consider the Engel DUO 5550/800 machine we have for sale. Contact us for further details.
Overview
- brand: Engel
- year: 2003
- MODEL: DUO 5550/800
- application type: Injection Moulding
- Location: Hungary
- machine type: Hydraulic Injection Moulding Machine
Technical Information - Engel DUO 5550/800
Dimensions
- Machine Height: 2500 mm
- Machine Length: 8900 mm
- Machine Weight: 44000 kg
- Machine Width: 3000 mm
Technical Specification
- Clamping Force: 8000 kN
- Screw Diameter: 90 mm
Additional Information
Shot volume: ~2700 cm³
Max. injection pressure: ~1900 bar
Plasticizing capacity: ~77 g/s
Clamping unit: Two-platen design (no traditional toggle), larger mold space for easier changes, even clamping force distribution
Injection unit: Hydraulic, high-performance plasticizing; suitable for thick-walled or large-volume parts
Control system: ENGEL EC100 or similar; basic CNC functions and recipe management; capable of integrating robots and peripherals
Typical applications: Automotive components (e.g., bumpers, dashboard elements), large housings and covers, industrial parts, thick-walled technical components
Advantages: High clamping force for large parts, more compact than traditional tie-bar machines, stable industrial design, easy to automate
Additional equipment
Not specified/included in the provided information
Note: Controller indicates integration of robots and peripherals is possible, but no accessories are listed as part of the delivery scope
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
