Emmegi TRIMMER 2A

Emmegi - TRIMMER 2ACH-OTH-EMM-2009-00002

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Emmegi TRIMMER 2A

Show in original language

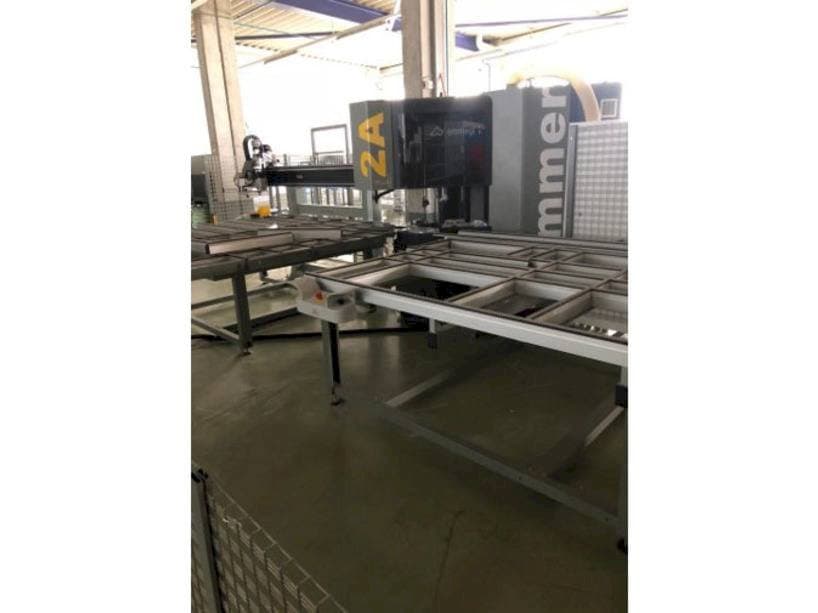

This Emmegi TRIMMER 2A was made in the year 2009 in Italy. Is a CNC corner cleaning machine for PVC frames with 2 interpolated axes and automatic cycle which, when suitably configured, is able to recognize the size of the profile to be cleaned. It has a 275 mm diameter knife which allows, with different work programs, cleaning the outer corner on various profiles.

Overview

brand: Emmegi
year: 2009
MODEL: TRIMMER 2A
application type: Other Machine Tools
Location: Switzerland
machine type: Machine Tool

Technical Information - Emmegi TRIMMER 2A

Dimensions

Machine Weight: 3500 kg

Movement

Number of Axes: 2

Additional Information

Machine Benefits

Qualitative Machine Benefits

Machine in excellent condition
Cutter motor power rating (kw) 2,4
Places available for top / bottom units 5 / 5
Machinable surfaces: with cutter (external profile) 1, with top and bottom units with knife (top and bottom surfaces, internal profile) 3, with milling unit (top and bottom surfaces) 2
Perimeter enclosure guard for semiautomatic and automatic trimmer 2a

Technical Machine Benefits

Max. Frame size with manual feeding unlimited
Max. Frame size with automatic feeding (optional turntable) (mm) 2. 300 x 2. 300 (2,7 kg/m) 2. 500 x 2. 500 (2,5 kg/m)
Min. Frame size, external measurement (mm) 350 x 350
Min. Frame size, internal measurement (mm) 210 x 210
Max. Profile height (mm) 120 / 200 (optional)
Min. Profile height (mm) 40
Max. Profile width (mm) 150
Cutter holder shaft diameter (mm) 32
Cutter speed (depending on cutter diameter) (rpm) 0 ÷ 12. 000
Cutter diameter (mm) 275

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
