Elumatec SBZ 140
Elumatec - SBZ 140
2007
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- elumatec SBZ 140 Vertical Machining Center

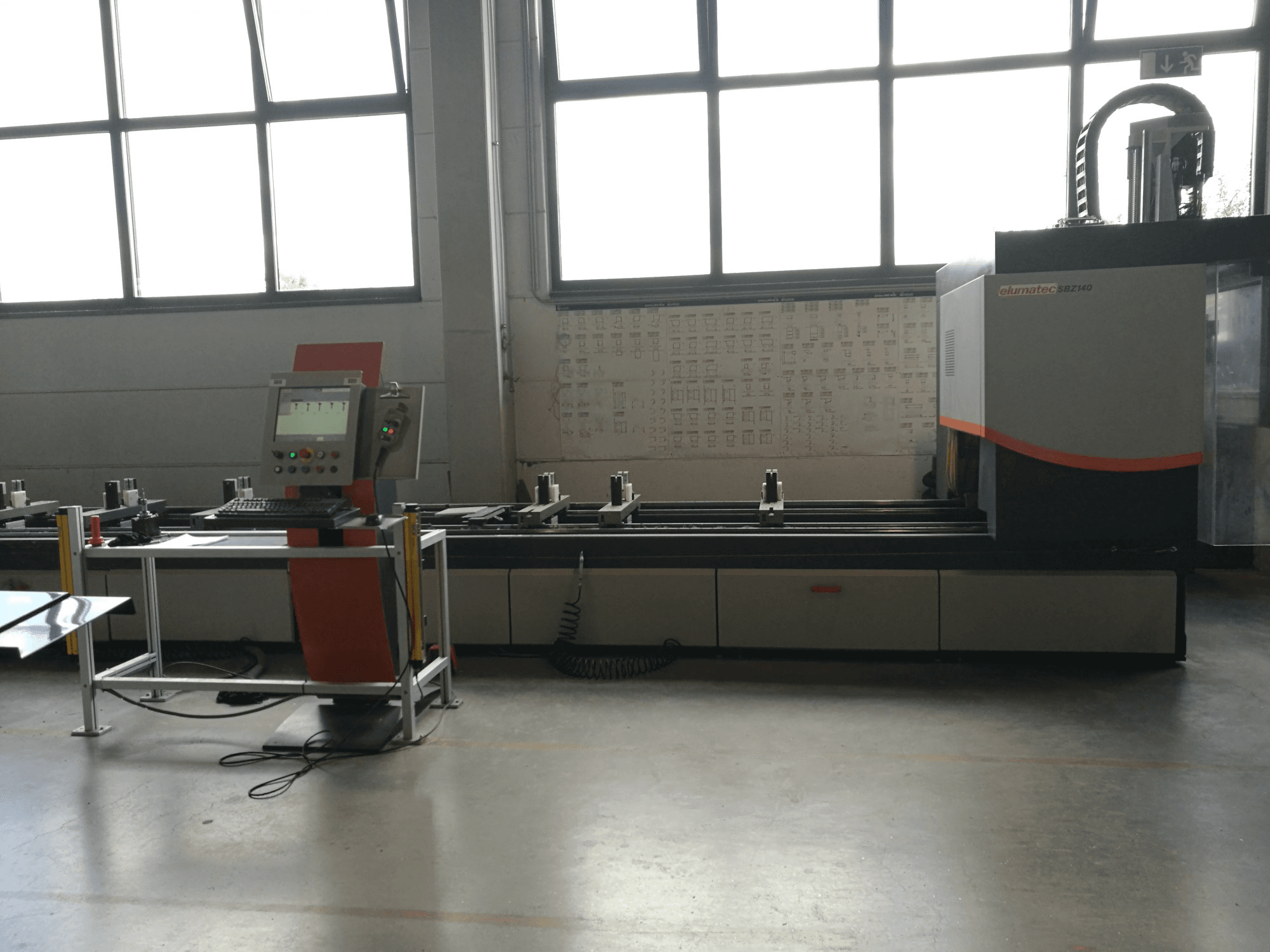

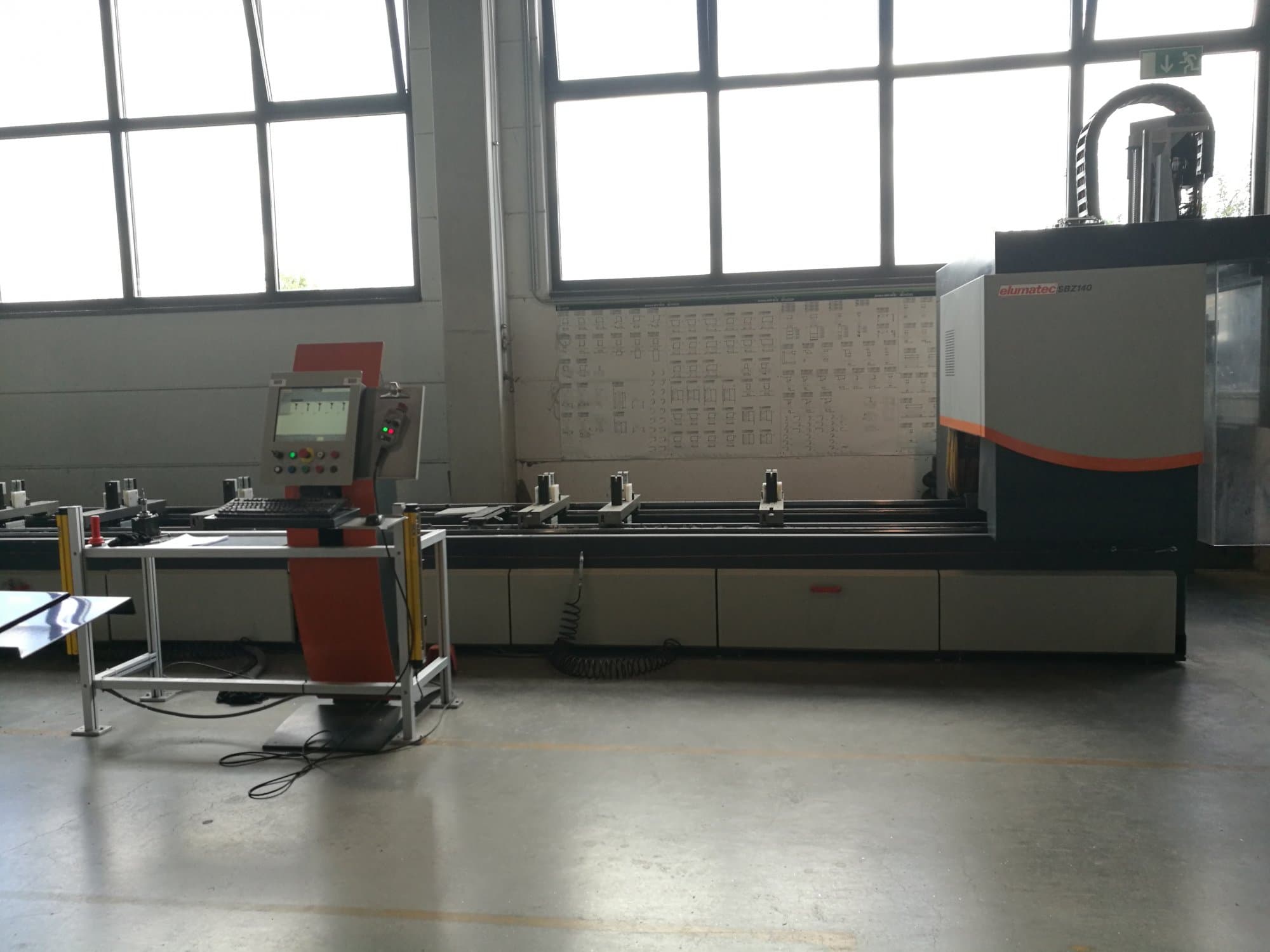

This elumatec SBZ 140 Vertical Machining Center from 2007 was manufactured in Germany and is in operation for 10070 production hours since then. Equipped with a Ferrocontrol Control Unit, this 4-Axis machine stands out due to its 2 separate working zones allowing shuttle operation and the stepless 180° adjustment. During the past, this machine has mainly worked with 15 mm aluminium profiles and comes with 8 tools included.
Overview
- brand: Elumatec
- year: 2007
- MODEL: SBZ 140
- production hours: 10070
- application type: Milling
- Location: Germany
- machine type: Machining centers (vertical)
- availability: Sold
- control unit brand: FERROMATIK
- GINDUMAC ID: DE-MIL-ELU-2007-00001
Technical Information
General Data
- Measurements width: 7000 mm
- Measurements depth: 1600 mm
- Measurements height: 2800 mm
- Machine weight: 5500 kg
Control Unit
- Brand: Ferrocontrol
Main drive
- Spindle speed range: 24000 1/min
Movement
- X-AXIS Movement: 7600 mm
- Y-AXIS Movement: 850 mm
- Z-AXIS Movement: 650 mm
Workpiece
- Workpiece weight: 140 kg
Table
- Outer length: 7000 mm
- Outer width: 850 mm
Tools
- Max tool diameter: 80 mm
- Max tool length: 200 mm
Media
- Main electronic connection: 3x 400 V
- Power consumption: 40 kVA
- Oil water separator: Yes
Additional Equipment
- - 8x Tool
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
