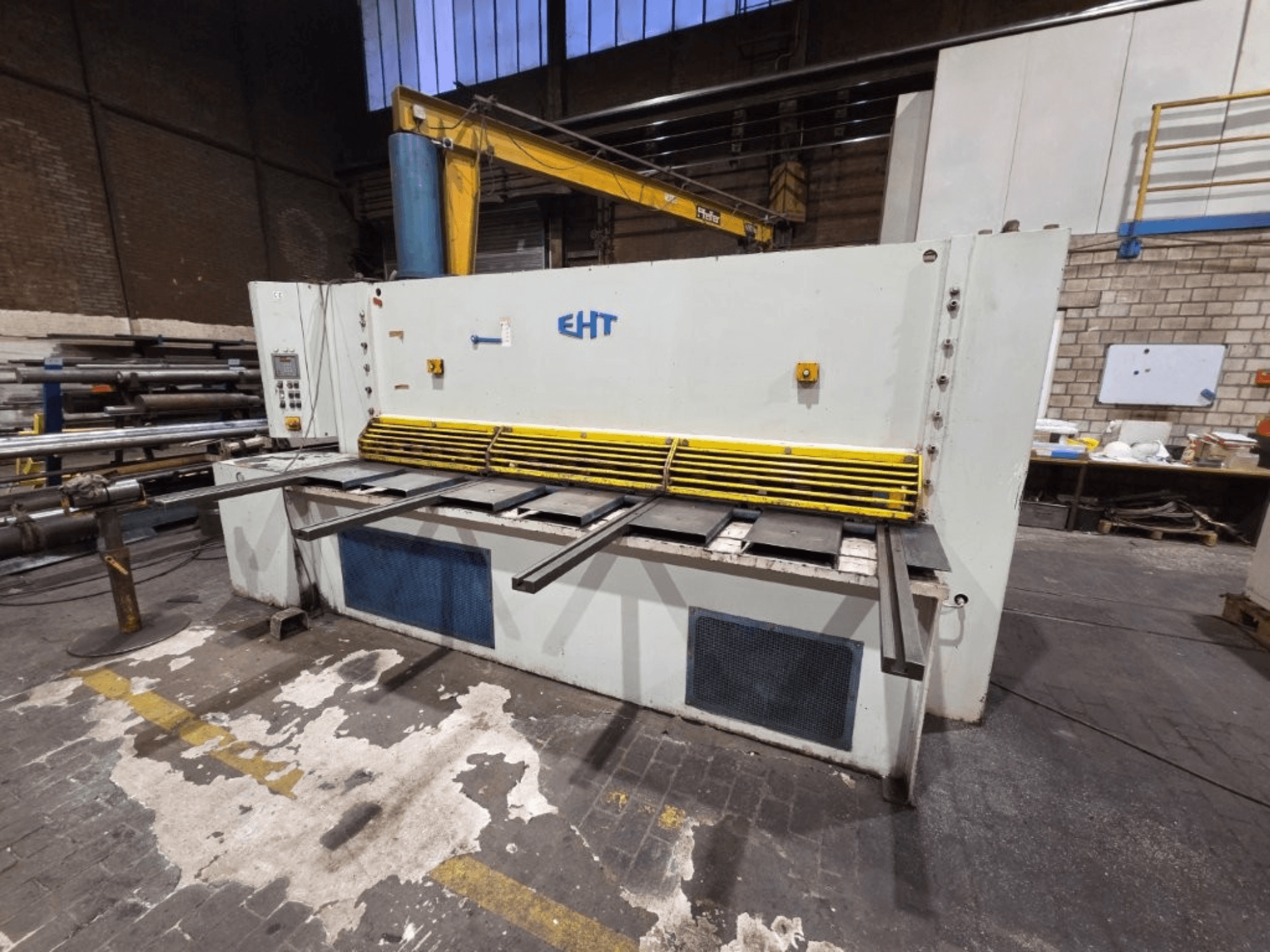

This EHT ECOCUT was manufactured in 2003. A robust hydraulic shearing machine, it features a cutting length of 3,050 mm and a thickness capacity of 13 mm. It operates with an 18.5 kW main motor and includes an ELGO P8511 control for precision. Consider the opportunity to buy this EHT ECOCUT hydraulic shearing machine. Contact us for more information.
Overview
- brand: EHT
- year: 2003
- MODEL: ECOCUT
- production hours: 3542
- application type: Shearing
- Location: Germany
- machine type: Hydraulic Shearing Machine
Additional Information
Cutting capacity:
Cutting length: 3,050 mm
Cutting thickness: 13 mm
Material tensile strength: 450 N/mm²
Hydraulic system:
Oil volume: 300 liters
Electrical data:
Current type: AC
Frequency: 50 Hz
Operating voltage: 400 V
Control voltage: 24 V DC
Rated current: 45 A
Main fuse rated current: 63 A
Main motor power: 18.5 kW
Control / documentation:
Control type: ELGO P8511 (NC backgauge control)
Electrical circuit diagram no.: 111 796
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
