ECOKRAFT - LP 22DE-OTH-ECO-2023-00001

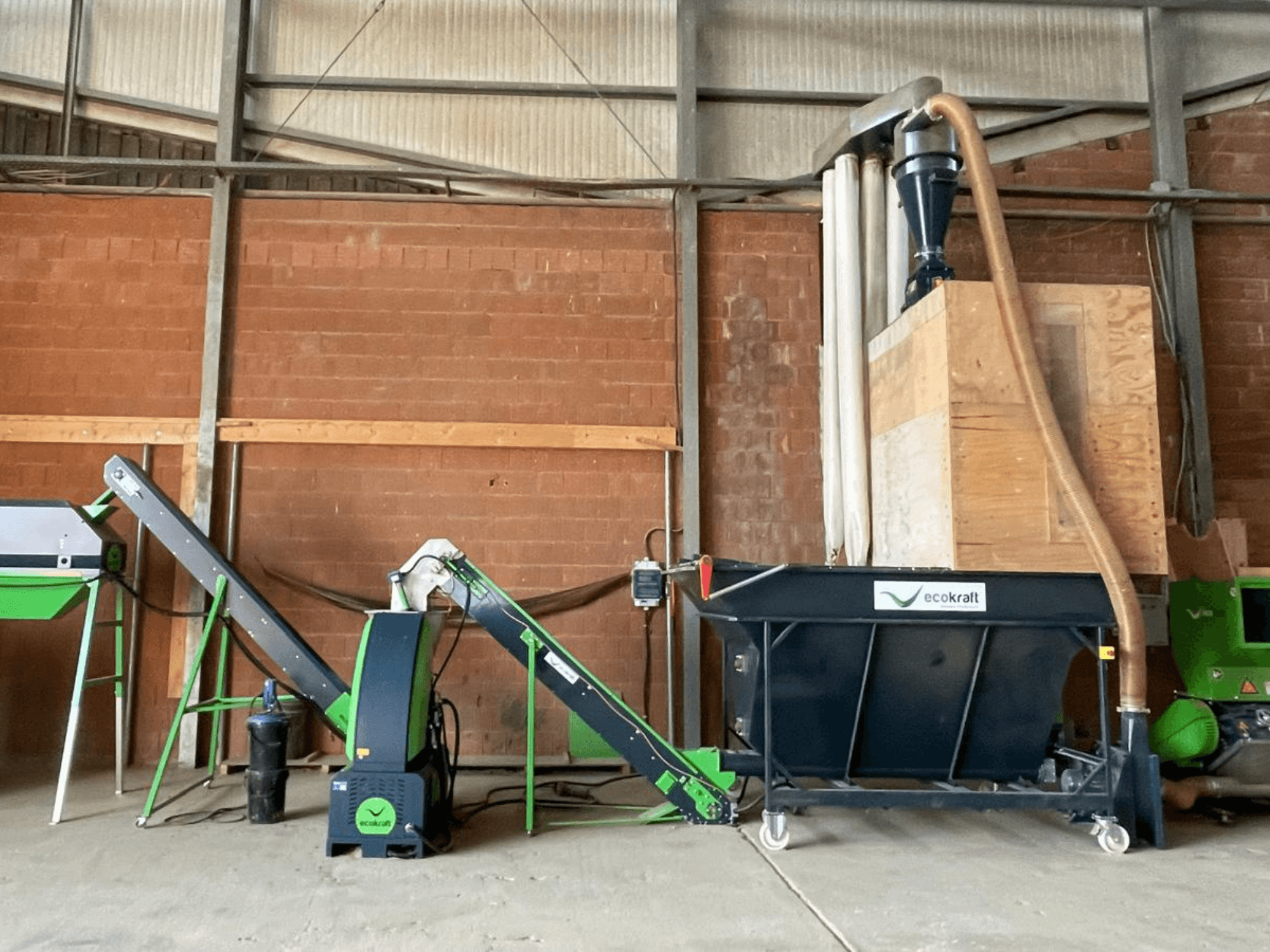

- Machine Type: Pellet Plant / Pellet Press Line

- Power Rating (Cutting Mill): 22.5 kW

- Material Bunker Capacity: 4 m³ (with discharge)

- Material Container Automatic Operation Capacity: 4 m³ (discharge via conveyor belt)

- Operating Hours (from HMI readout):

- Power On Time: 3795 h

- Total Press Run Time: 1008 h

- Current Press Run Time: 1008 h

- Removal Conveyor: 1158 h

- Screening System: 1158 h

- Water Pump: 609 h

- Bunker Conveyor: 259 h

- Bunker Discharge: 230 h

- Bunker Agitator: 201 h

- Cross Conveyor: 0 h

- Drum Screen Dimensions: Ø 300 mm x Length 1,200 mm

- Drum Screen Discharge Height: Max. 1,800 mm (variable height adjustment, side filling right/left)

- Conveyor Belt Specifications: Length 3,600 mm, Discharge Height 2,600 mm, Belt Width 150 mm, Number of Cleats: 49, Motor Speed 46 rpm

- Big-Bag Frame Vario 1.0: Suitable for size 95x95x100 cm (1.0 m³)

- Big-Bag Frame Vario 1.5: Suitable for size 95x95x150 cm (1.5 m³)

- Optional Equipment & Features:

- Pellet Press LP22

- Load-dependent feed control

- Rotary valve

- Frost-proof control panel with touchscreen interface

- Remote maintenance and fault analysis module

- SMS module

- Temperature monitoring and control for press room

- Manual potentiometer for material flow regulation

- Pressol pneumatic grease system (for 18 kg bucket)

- Control cabinet with VFD for LP22 connection

- Cable set for automatic operation

- Level sensor
