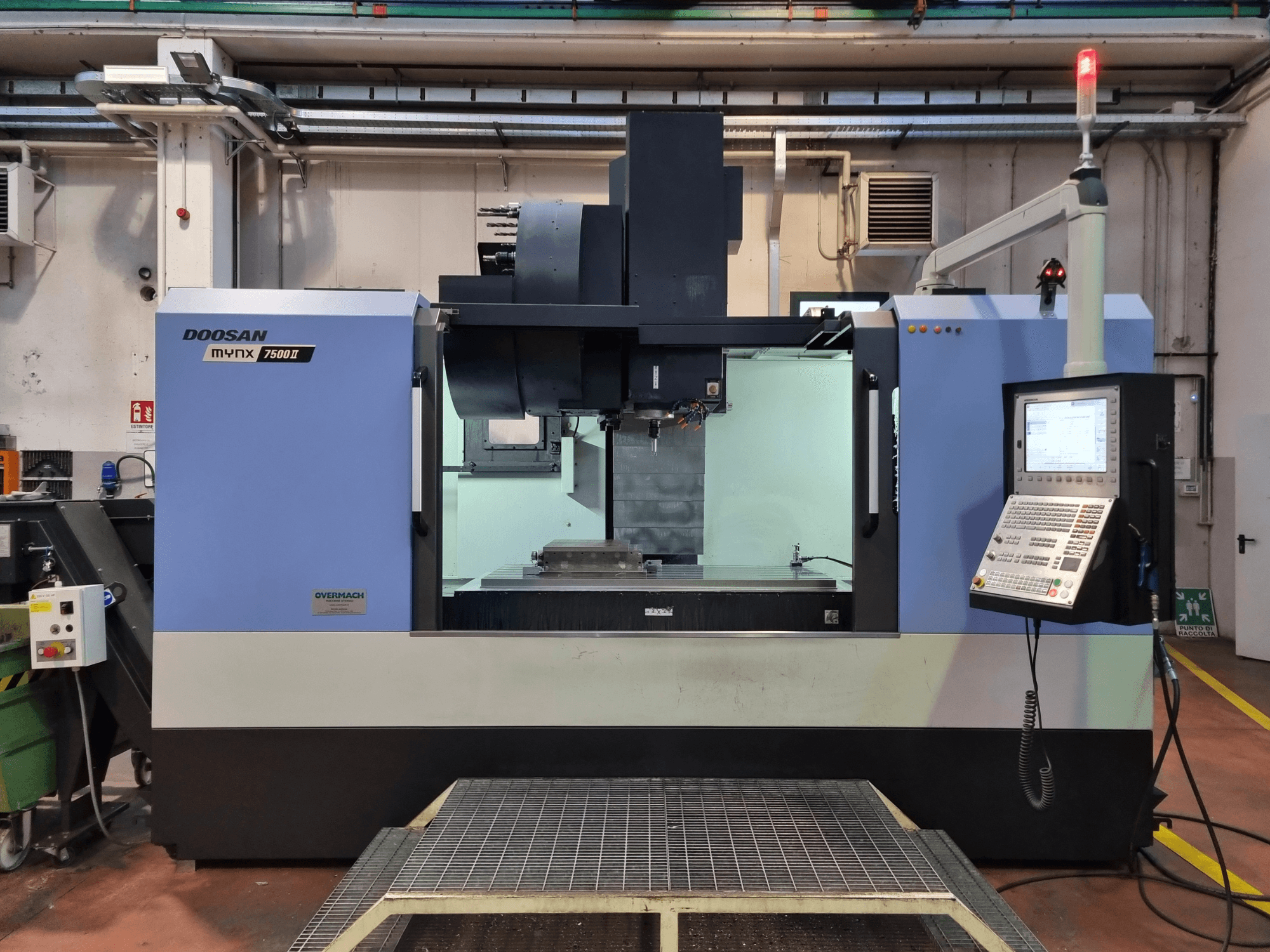

This 3-axis DOOSAN MYNX 7500 was manufactured in 2020, featuring a Heidenhain TNC 620 control with a TS 460 probe. It has a table size of 1600 mm by 750 mm and a maximum spindle speed of 12,000 rpm. With dimensions of 5000 × 4050 × 3235 mm and a weight of 13,500 kg, consider the opportunity to buy this DOOSAN MYNX 7500 vertical machining centre. Contact us for more information.
Overview
- brand: DOOSAN
- year: 2020
- MODEL: MYNX 7500
- production hours: 11574
- application type: Milling
- Location: Italy
- machine type: Vertical Machining Centre
Technical Information - DOOSAN MYNX 7500
Dimensions
- Machine Depth: 4050 mm
- Machine Height: 3235 mm
- Machine Length: 5000 mm
- Machine Weight: 13500 kg
Movement
- X-axis Travel: 1525 mm
- Y-axis Travel: 762 mm
- Z-axis Travel: 625 mm
Additional Information
Table Length: 1600 mm
Table Width: 750 mm
Spindle Taper: ISO 40 dual contact
Maximum Spindle Speed: 12000 rpm
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
