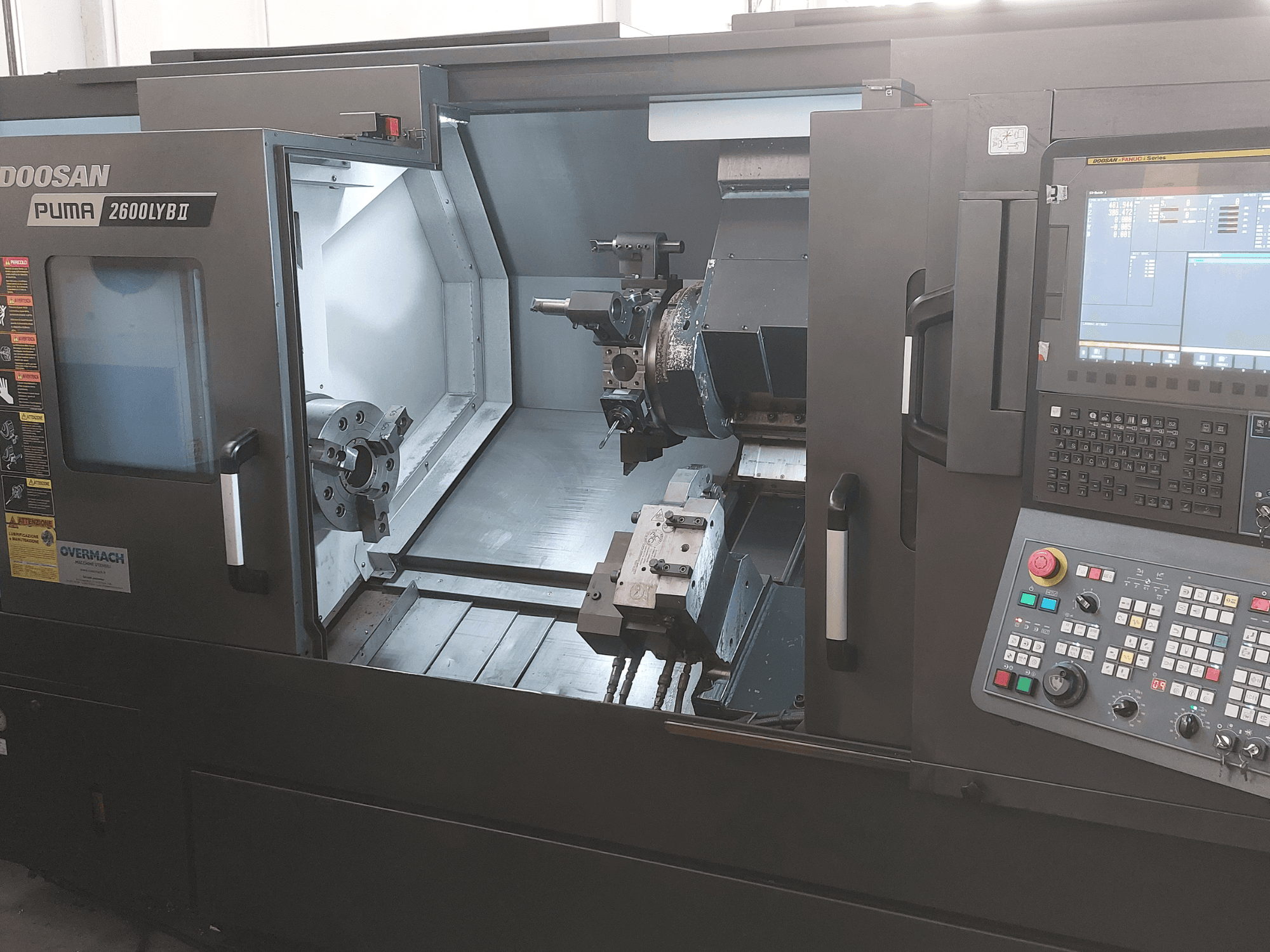

DOOSAN Puma 2600 LYB II Horizontal Turning Machine in front view, showcasing interior with chuck, tool holder, and control panel.
DOOSAN Puma 2600 LYB II Horizontal Turning Machine in front view, showcasing interior with chuck, tool holder, and control panel.

DOOSAN - Puma 2600 LYB IIIT-TUR-DOO-2021-00002

£ 116,727
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 4-axis DOOSAN Puma 2600 LYB II was manufactured in 2021. It features a maximum turning diameter of 376 mm and a turning length of 1,350 mm. The machine includes a 12-station turret, a live tailstock, and a steady rest with a diameter range from 40 mm to 200 mm. If you are looking to get high-quality turning capabilities, consider the DOOSAN Puma 2600 LYB II horizontal turning machine we have for sale. Contact us for further details.

Overview

  • brand: DOOSAN
  • year: 2021
  • MODEL: Puma 2600 LYB II
  • application type: Turning
  • Location: Italy
  • machine type: Horizontal Turning Machine

Technical Information - DOOSAN Puma 2600 LYB II

Dimensions

  • Machine Height: 2163 mm
  • Machine Length: 4438 mm
  • Machine Weight: 7500 kg
  • Machine Width: 2005 mm

Movement

  • Number of Axes: 4
  • X-axis Travel: 260 mm
  • Y-axis Travel: 105 mm
  • Z-axis Travel: 830 mm

Technical Specification

  • Counter Spindle: Yes
  • Driven Tools: Yes
  • Spindle Power: 22 kW
  • Spindle Speed: 2800 RPM

Additional Information

  • Capacity

    • Swing over bed: 780 mm

    • Swing over carriage: 630 mm

    • Recommended turning diameter: 315 mm

    • Max turning diameter: 376 mm

    • Max turning length: 1,350 mm

    • Bar capacity: 102–103 mm

  • Main spindle

    • Nose: ASA A2-11

    • Bearing diameter: 160 mm

    • Through-spindle bore: 115 mm

    • C-axis indexing accuracy: 0.001°

  • Sub-spindle (if equipped)

    • Speed: 4,500 rpm

    • Nose: ASA A2-5

    • Bore: 62 mm

  • Turret

    • Stations: 24 (option installed; standard 12)

    • Tool size: 25 mm

    • Boring bar capacity: 50 mm

    • Indexing time: 0.15 s

    • Live tool speed: 5,000 rpm

  • Axes

    • C rotation: 360°

  • Rapid traverse

    • X: 30 m/min

    • Z: 30 m/min

    • C: 10 m/min

  • Tailstock

    • Type: Live tailstock

    • Quill diameter: 100 mm

    • Taper: MT5

    • Quill stroke: 100 mm

  • Motor / Power

    • Live tool motor: 7.5 / 1.5 kW

    • Feed motor: 3.0 / 4.0 / 3.0 kW

    • Coolant pump motor: 0.4 kW

    • Electrical capacity: 46.40 kVA

Additional equipment

  • 315 mm chuck

  • MORARI steady rest, 40–200 mm diameter range

  • Three motorized radial Eppinger live toolholders/spindles

  • Tool presetting system (tool presetter)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Your account manager:

Borja Garcia

Borja Garcia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

get in contact

Payment Terms

  • Payment in advance

  • Asset Financing
