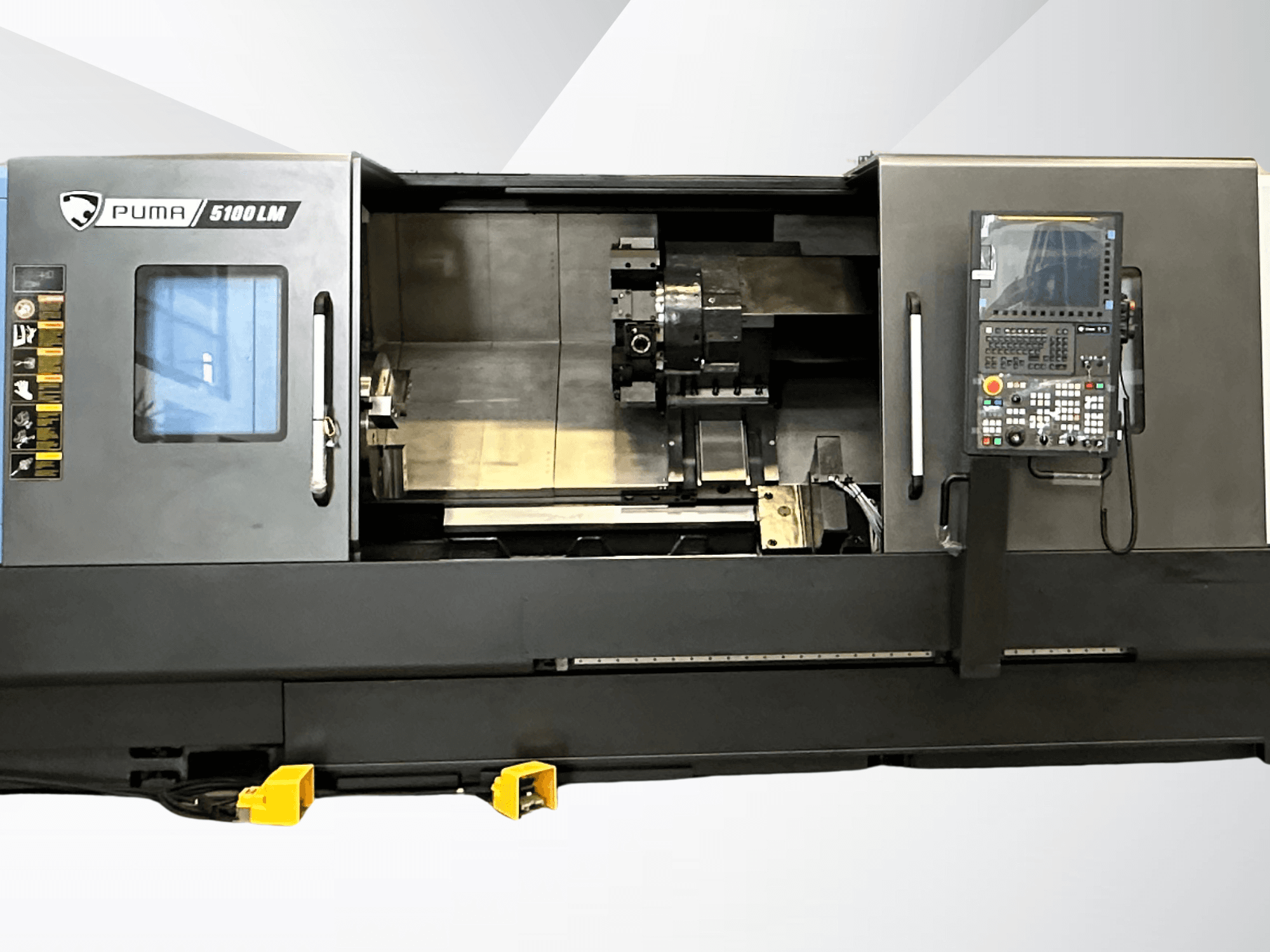

This 4-axis DN SOLUTIONS PUMA 5100 LMB was manufactured in 2024. It features a maximum turning diameter of 650 mm and a turning length of 2002 mm, along with a main spindle chuck size of 21 inches (535 mm). The machine includes a rapid traverse speed of 16 m/min and a maximum spindle speed of 1500 rpm. If you are looking to get high-quality turning capabilities, consider the DN SOLUTIONS PUMA 5100 LMB turn-mill centre we have for sale. Contact us for further details.
Overview
- brand: DN SOLUTIONS
- year: 2024
- MODEL: PUMA 5100 LMB
- application type: Turning
- Location: Germany
- machine type: Turn-Mill Centre
- control unit brand: FANUC
Technical Information - DN SOLUTIONS PUMA 5100 LMB
Control Unit
- Control Brand: FANUC
- Control Model: 0i-F
Dimensions
- Machine Height: 2272 mm
- Machine Length: 5879 mm
- Machine Weight: 12200 kg
- Machine Width: 2275 mm
Movement
- Number of Axes: 4
- X-axis Travel: 362 mm
- Y-axis Travel: 110 mm
- Z-axis Travel: 2155 mm
Technical Specification
- Counter Spindle: Yes
- Driven Tools: Yes
- Spindle Power: 45 kW
- Spindle Speed: 1500 RPM
Additional Information
Main spindle chuck size: 21 inch (535 mm)
Bar capacity: 166 mm
Rapid traverse X: 16 m/min
Main spindle torque: 2957 Nm
Max turning diameter: 650 mm
Max turning length: 2002 mm
Driven tool speed: 4000 rpm
Number of tool stations: 12
Tool holder type: BMT75
Guideway type: Box guideways
C-axis: Yes
Electrical connection: 380 V
Electrical supply: 3 phase
Frequency: 50 / 60 Hz
Rated power: 61.56 kVA
Full load current: 93.53 A
Short circuit capacity: 10 kA
Interrupting capacity: 5 kA
Additional equipment
Chip conveyor (included)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
