DN SOLUTIONS - DNM 4500PL-MIL-DNS-2022-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- ➤ Used DN SOLUTIONS DNM 4500 For Sale | gindumac.com

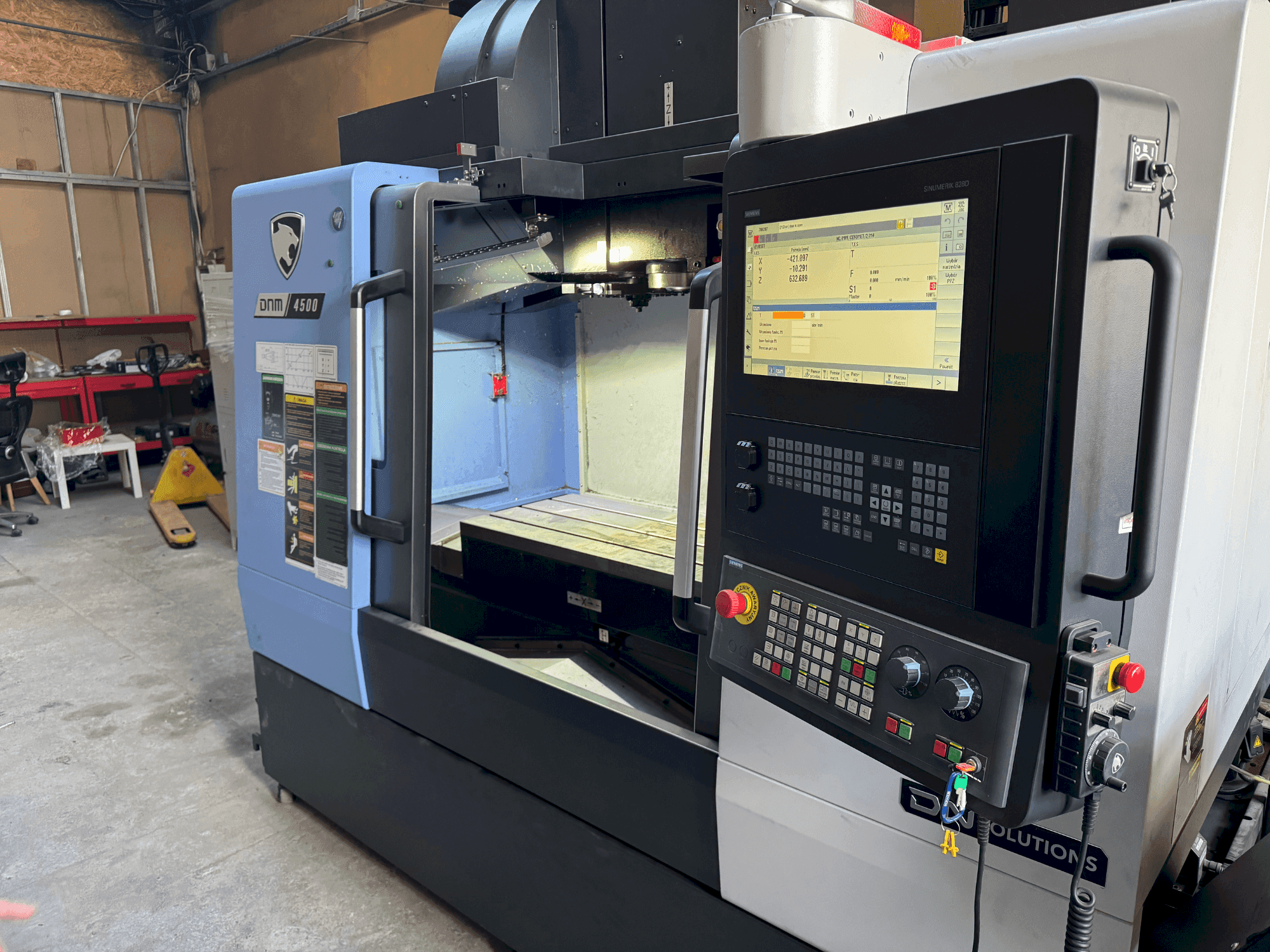

This 3 DN SOLUTIONS DNM 4500 vertical machining center was manufactured in 2022. Consider the opportunity to buy this DN SOLUTIONS DNM 4500 vertical machining center. Contact us for more information.
Overview
- brand: DN SOLUTIONS
- year: 2022
- MODEL: DNM 4500
- production hours: 83
- application type: Milling
- Location: Poland
- machine type: Vertical Machining Centre
- control unit brand: SIEMENS
Technical Information - DN SOLUTIONS DNM 4500
Control Unit
- Control Brand: SIEMENS
- Control Model: Sinumerik 828D
Dimensions
- Table Length: 1000 mm
- Table Load: 600 kg
- Table Width: 450 mm
Movement
- Number of Axes: 3
- X-axis Travel: 800 mm
- Y-axis Travel: 450 mm
- Z-axis Travel: 510 mm
Technical Specification
- Max. Tool Weight: 8 kg
- Number of Tools: 30
- Spindle Power: 11 kW
- Spindle Speed: 12000 RPM
Additional Information
Machine Benefits
Technical Machine Benefits
- Servo motor power: x & y axes: 1. 8 kw z-axis: 3. 0 kw
- Maximum spindle torque: 141 nm
- Transmission type: direct drive
- Tool change mechanism: arm-type
- Tool taper: iso #40 7/24 with: big plus bt spindle taper
- Tool-to-tool change time: 1. 2 seconds
- Chip-to-chip time: 3. 2 seconds
- Doosan dnm 4500 siemens – shop mill/temperature compensation function/roller linear guides/spindle cooling 20 bar /led work area lighting /3-color signal led lamp
- Main spindle speed up to 12,000 rpm/ 30-tool magazine, cam type /big plus bt taper
- Prepared for 4th axis /doosan tool monitoring
Extra Information
Machine still under power // Options included: SIEMENS – Shop Mill/ Chip conveyor/ Temperature compensation function/ Roller linear guides/ Through-spindle cooling, 20 bar LED lighting of the working area/ 3-color LED signal lamp/ Spindle speed up to 12,000 rpm/ Tool magazine for 30 tools, CAM type/ BIG PLUS BT spindle taper/ Prepared for 4th axis/ Doosan Tool Monitoring system
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
