DMG Mori Seiki - DMC 635V ecoline IT-MIL-DMG-2013-00003
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- ➤ Used DMG Mori Seiki DMC 635V ecoline | Machining Center

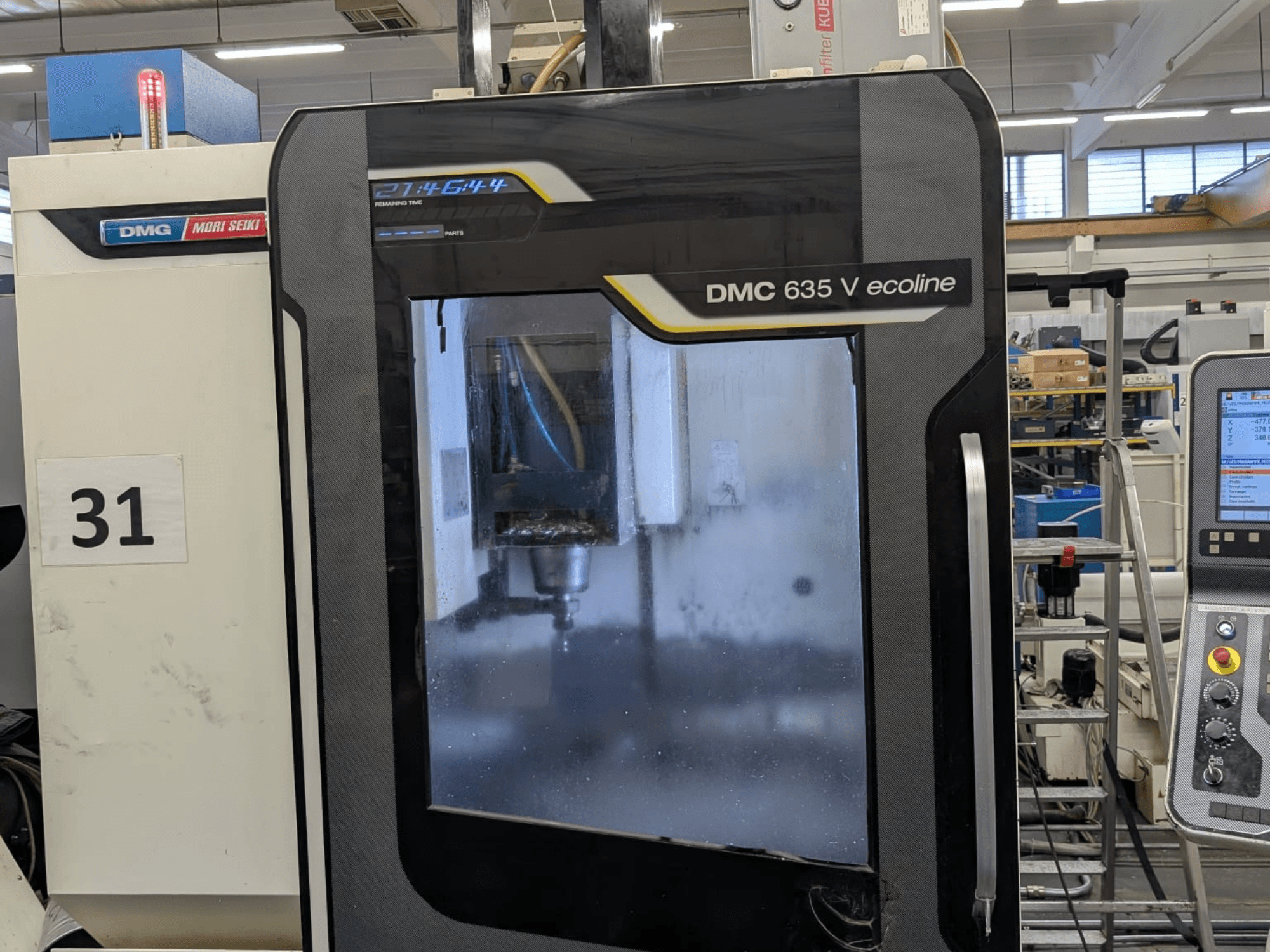

This 3-axis DMG Mori Seiki DMC 635V ecoline was manufactured in 2013. It features an X-axis travel of 635 mm, Y-axis travel of 510 mm, and Z-axis travel of 460 mm. The machine is equipped with a maximum spindle speed of 12,000 rpm and a tool magazine that holds up to 30 tools. If you are looking to get high-quality machining capabilities, consider the DMG Mori Seiki DMC 635V ecoline vertical machining centre we have for sale. Contact us for further details.
Overview
- brand: DMG Mori Seiki
- year: 2013
- MODEL: DMC 635V ecoline
- application type: Milling
- Location: Italy
- machine type: Vertical Machining Centre
Technical Information - DMG Mori Seiki DMC 635V ecoline
Dimensions
- Machine Weight: 3950 kg
Movement
- Number of Axes: 3
- X-axis Travel: 635 mm
- Y-axis Travel: 510 mm
- Z-axis Travel: 460 mm
Technical Specification
- Spindle Power: 13 kW
- Spindle Speed: 12000 RPM
Additional Information
Spindle:
Power: 13 kW (40% ED) / 9 kW (100% ED)
Max torque: 83 Nm (40% ED) / 57 Nm (100% ED)
Feed rates:
Rapid traverse: 20–12,000 mm/min
Table / layout (según plano):
Table travel usable: X 635 / Y 510
Table center to spindle nose aprox.: según esquema (standard DMC 635 V)
Hours (según contador foto):
Power on: ~20,933 h
Operating: ~8,347 h
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
