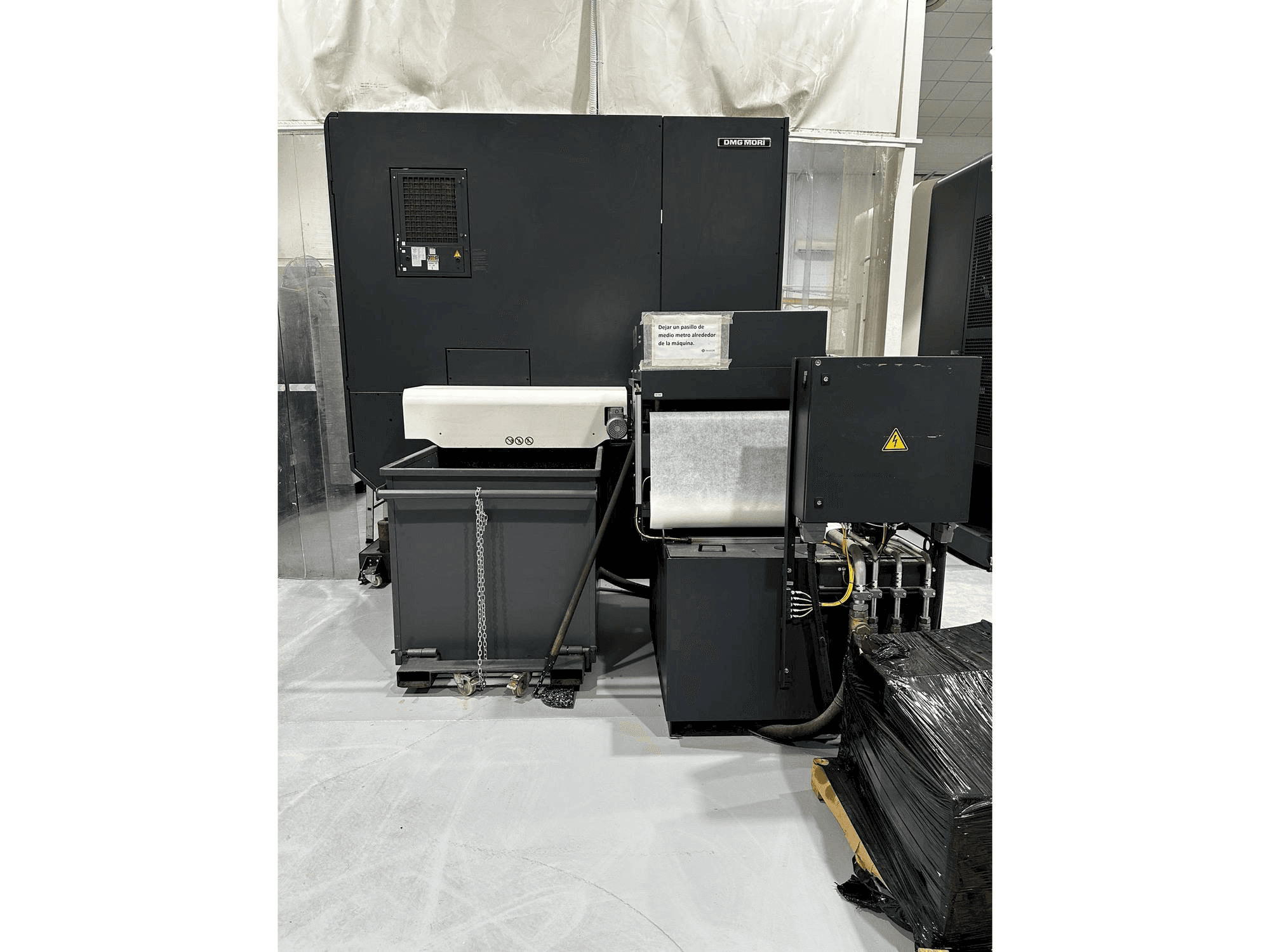

DMG MORI DMU 95 monoBLOCK

Photo Gallery

DMG MORI - DMU 95 monoBLOCKES-MIL-DMG-2019-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
DMG MORI DMU 95 monoBLOCK Universal Machining center

Show in original language

This DMG MORI DMU 95 monoBLOCK Universal Machining center was manufactured in the year 2019 in Germany. It is equipped with a CELOS HEIDENHAIN ITNC 640 ErgoLine control unit and has 5 axis. The machine has a spindle speed of 20000 rpm.

Overview

brand: DMG MORI
year: 2019
MODEL: DMU 95 monoBLOCK
application type: Milling
Location: Spain
machine type: Universal Machining Centre
control unit brand: HEIDENHAIN

Technical Information - DMG MORI DMU 95 monoBLOCK

Control Unit

Control Brand: HEIDENHAIN
Control Model: TNC 640 ERGOline Touch

Dimensions

Machine Weight: 14000 kg

Movement

Number of Axes: 5
X-axis Travel: 950 mm
Y-axis Travel: 850 mm
Z-axis Travel: 650 mm

Technical Specification

Spindle Power: 35 kW
Spindle Speed: 20000 RPM
Taper Size: SK 40

Additional Information

Machine Benefits

Technical Machine Benefits

The spindle had 3729 hours.

Extra Information

Motor spindle speedMASTER® 20,000 rpm 35 kW / 46.9 hp (40% duty cycle); 25 KW / 33.5 hp (100% duty cycle) Spindle taper SK 40 to DIN 69871 Tool clamping to DIN 69872 Vertical headstock Tool change system double gripper Chain magazine 60 magazine pockets SK 40 NC swivel rotary table Table plate C-axis: d 850 × 750 mm / 33.4 x29.5 in, integrated in rigid table 1,000 mm x 750 mm / 39.4 in x 29.5 in MPC Machine Protection Control Chip trough with integrated coolant tank 500 | / 132 gallon Celos With Heidenhain TNC 64021.5 " ERGOline Touch® Control with Multi-Touch-Screen Internal coolant supply 40bar / 23 l/min 3D quickSET
