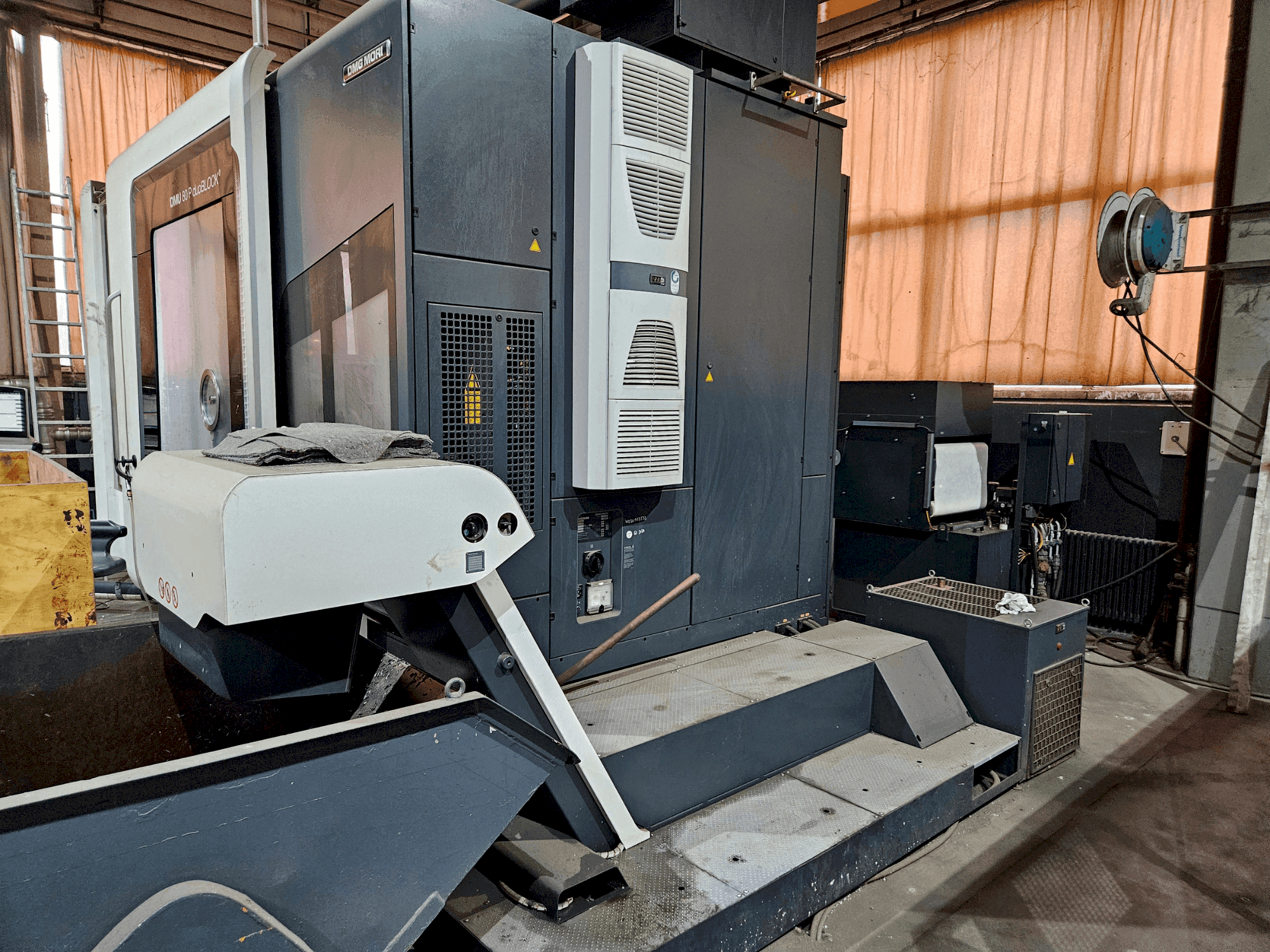

Front view of DMG MORI DMU 80 P duoBLOCK machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

DMG MORI DMU 80 P duoBLOCK

Photo Gallery

DMG MORI - DMU 80 P duoBLOCKDE-MIL-DMG-2015-00002

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used DMG MORI DMU 80 P duoBLOCK For Sale | gindumac.com

Show in original language

This 5-axis DMG MORI DMU 80 P duoBLOCK was manufactured in 2015. It features a Siemens 3D 840D sl Operate CELOS control system, a universal milling head with a swiveling range of 210°, and a motor spindle speed up to 18,000 rpm. The machine offers a working area of 800 x 1050 x 850 mm and supports a table load of 1500kg. If you are looking to get high-quality milling capabilities consider the DMG MORI DMU 80 P duoBLOCK machine we have for sale. Contact us for more information.

Overview

brand: DMG MORI
year: 2015
MODEL: DMU 80 P duoBLOCK
application type: Milling
Location: Germany
machine type: Universal Machining Centre
control unit brand: SIEMENS

Technical Information - DMG MORI DMU 80 P duoBLOCK

Control Unit

Control Brand: SIEMENS
Control Model: 840D sl Operate CELOS

Dimensions

Table Length: 900 mm
Table Load: 1500 kg
Table Width: 700 mm

Movement

Number of Axes: 5

Technical Specification

Spindle Speed: 18000 RPM

Additional Information

Additional equipment

Tank 600 litres
Flushing gun 2 bar / 40l/min
Oil/emulsion mist separator; throughput volume 1,600 m³/h
Cone cleaning brush
Infrared probe Heidenhain TS 649
Tool measurement in the work frame Blum Laser NT-hybrid
3D quickSET extension
MPC Machine Protection Control

Machine Benefits

Technical Machine Benefits

Table: groove width: 14 mm
Distance between the t grooves: 63 mm
Direct measuring system
Fully protected cab
Package 40 bar / 17l/min
Ikz through spindle centre; blast air through spindle centre
Universal milling head with controlled axis
Swivelling angle max. 210°
Rapid traverse 30 1/min / turning speed max. 4th axis: 40 rpm / 4th axis swivelling range: 360 x 0. 001°
Working area: longitudinal 800mm, transverse 1050mm, vertical 850mm / feed lengthwise/crosswise/vertical: 60000/6000/6000 mm/min / rapid traverse longitudinal/transverse/vertical: 60/60/60 m/min

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
