- ➤ Used DMG MORI DMU 75 MonoBlock For Sale | gindumac.com

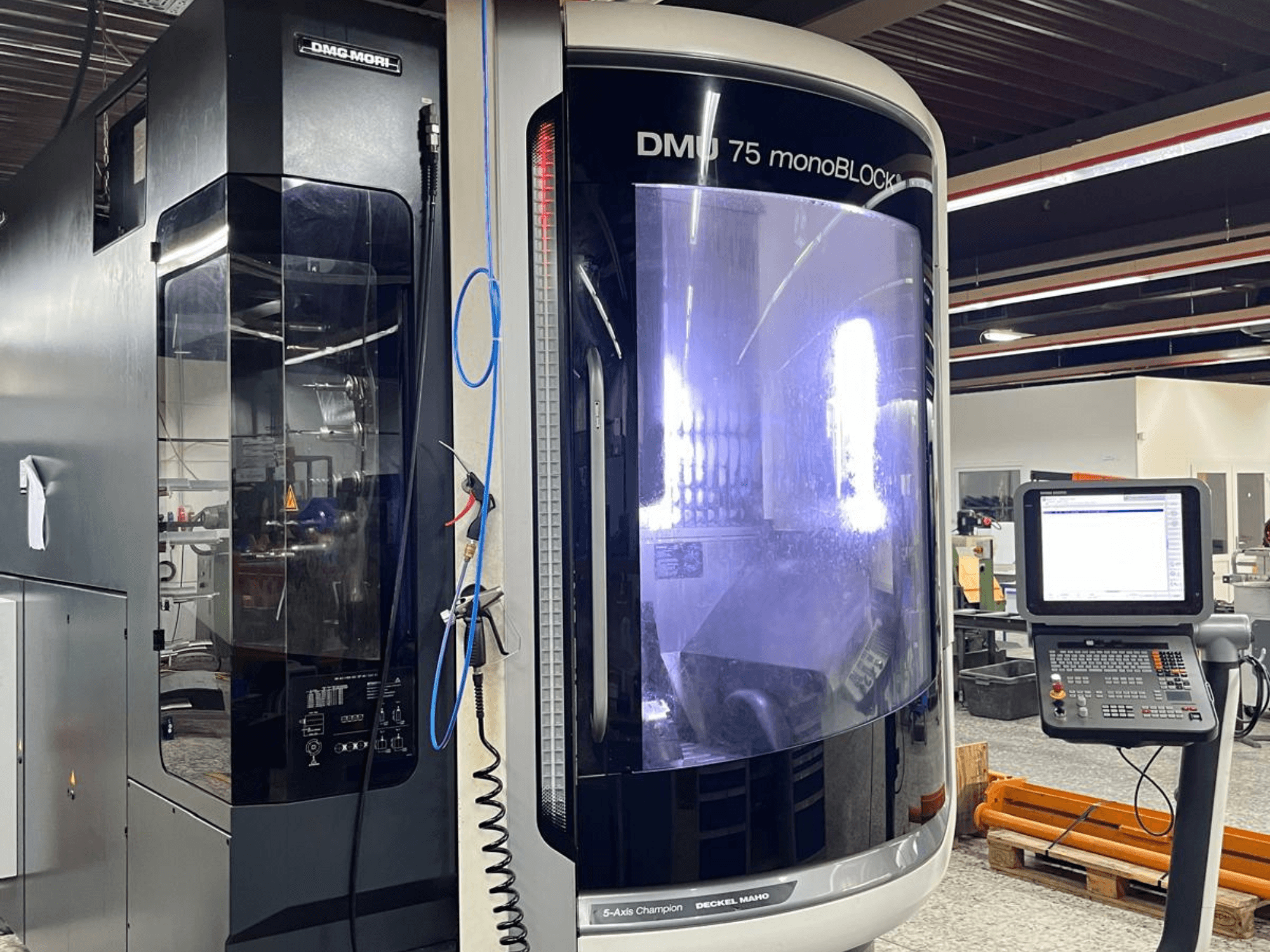

This 5-axis DMG MORI DMU 75 MonoBlock was manufactured in 2015. It features an X-axis travel of 750 mm, Y-axis travel of 650 mm, and Z-axis travel of 560 mm. The machine is equipped with a spindle speed of 20,000 rpm and a tool magazine with 60 positions. If you are looking to get high-quality machining capabilities, consider the DMG MORI DMU 75 MonoBlock universal machining centre we have for sale. Contact us for further details.
Overview
- brand: DMG MORI
- year: 2015
- MODEL: DMU 75 MonoBlock
- production hours: 11223
- application type: Milling
- Location: Germany
- machine type: Universal Machining Centre
- control unit brand: HEIDENHAIN
Technical Information - DMG MORI DMU 75 MonoBlock
Control Unit
- Control Brand: HEIDENHAIN
- Control Model: TNC 640
Dimensions
- Machine Height: 800 mm
- Table Width: 650 mm
Movement
- Number of Axes: 5
- X-axis Travel: 750 mm
- Y-axis Travel: 650 mm
- Z-axis Travel: 560 mm
Technical Specification
- Number of Tools: 60
- Spindle Speed: 20000 RPM
- Taper Size: SK 40
- Through-spindle Coolant: Yes
Additional Information
5-axis simultaneous machining
Spindle taper: SK 40
Tool magazine: 60 positions
Internal coolant supply: 40 bar
Spindle Hours: 11,223 h
Machine on hours: 32,851 h
A-axis Range: +/- 120 degree
C-axis Range: 360 degree
Table: Integrated CNC rotary table (diameter 650 mm) within an 800 x 650 mm table surface
Clamping: Hydraulic clamping for the swivel rotary table
Probing: HEIDENHAIN touch probe
Chip Management: Chip conveyor
Coolant: Internal Coolant Supply (ICS / IKZ) 40 bar
Coolant Tank: 600-liter capacity with paper band filter
Cleaning: Wash-down gun (spray pistol)
Extraction: Extraction unit (mist collector)
Table type: Integrated swivel rotary table
Additional equipment
Infrared measuring probe
Electronic handwheel
Chip conveyor
Internal coolant supply system with paper band filter
3D Quickset preparation
Coolant ring nozzle
Air blast
Operating Mode 4 (BA4)
Safety glass window
DMG Netservice client
Optional: approx. 80 tools available
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
