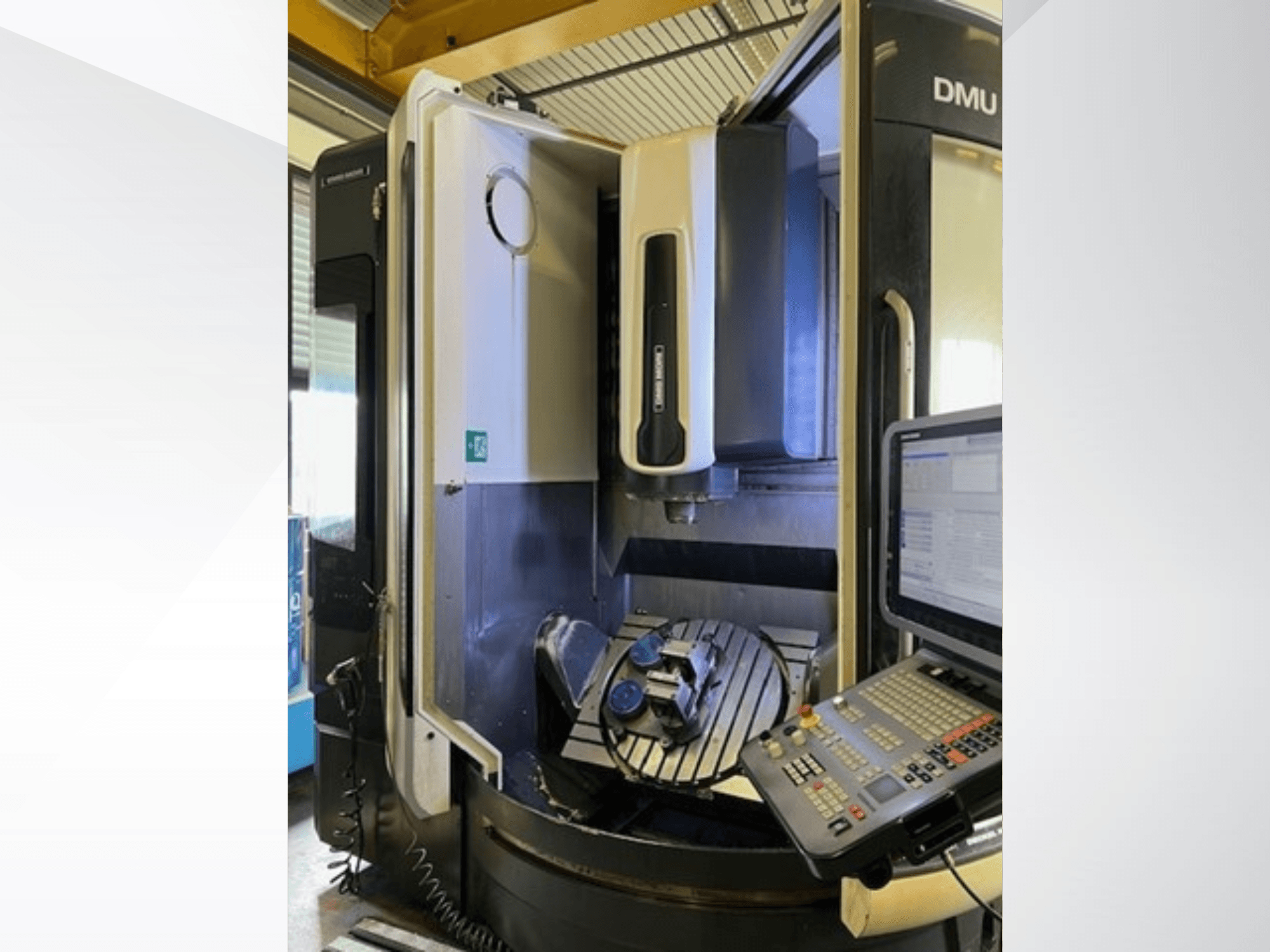

This 5-axis DMG MORI DMU 75 Monoblock was manufactured in 2015. It features an impressive X-axis travel of 750 mm, Y-axis travel of 650 mm, and Z-axis travel of 560 mm. The machine is equipped with a maximum spindle speed of 18,000 rpm and offers 60 tool positions. If you are looking to get high-quality machining capabilities, consider the DMG MORI DMU 75 Monoblock universal machining centre we have for sale. Contact us for further details.
Overview
- brand: DMG MORI
- year: 2015
- MODEL: DMU 75 Monoblock
- production hours: 9612
- application type: Milling
- Location: Germany
- machine type: Universal Machining Centre
- control unit brand: HEIDENHAIN
Technical Information - DMG MORI DMU 75 Monoblock
Control Unit
- Control Brand: HEIDENHAIN
- Control Model: 640
Dimensions
- Machine Weight: 11600 kg
Movement
- Number of Axes: 5
- X-axis Travel: 750 mm
- Y-axis Travel: 650 mm
- Z-axis Travel: 560 mm
Technical Specification
- Spindle Speed: 18000 RPM
Additional Information
Power: 48 kVA
Rated apparent power: 35 kVA
Max input current: 70 A
Full load current: 80 A
Voltage: 400 V
Frequency: 50 Hz
Control voltage: 24 V
Spindle speed: up to 18,000 1/min
Tool interface: HSK
Tool magazine capacity: 60 positions
B-axis: -5° to +110°
C-axis: 360°
Table size: 800 mm (L) x 650 mm (W)
Machine Protection Control (MPC)
Infinitely variable speed control
Operating mode 3
Additional equipment
Scraper belt chip conveyor (chip conveyor)
Internal coolant supply
40 bar coolant system with 600 l tank and paper belt filter
40 bar IHK pressure relief valve
Coolant ring nozzle
Water jet gun / cleaning gun
Air cooling system through spindle center
Mechanical oil and emulsion mist separator, 3 bar
Blum laser for tool radius and length measurement
Heidenhain TS 460 infrared touch probe
Handwheel
Climate control package
Documentation/manual
Preparation for automation/handling system
Extractor probe
Optional: Schunk zero point system and tools
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
