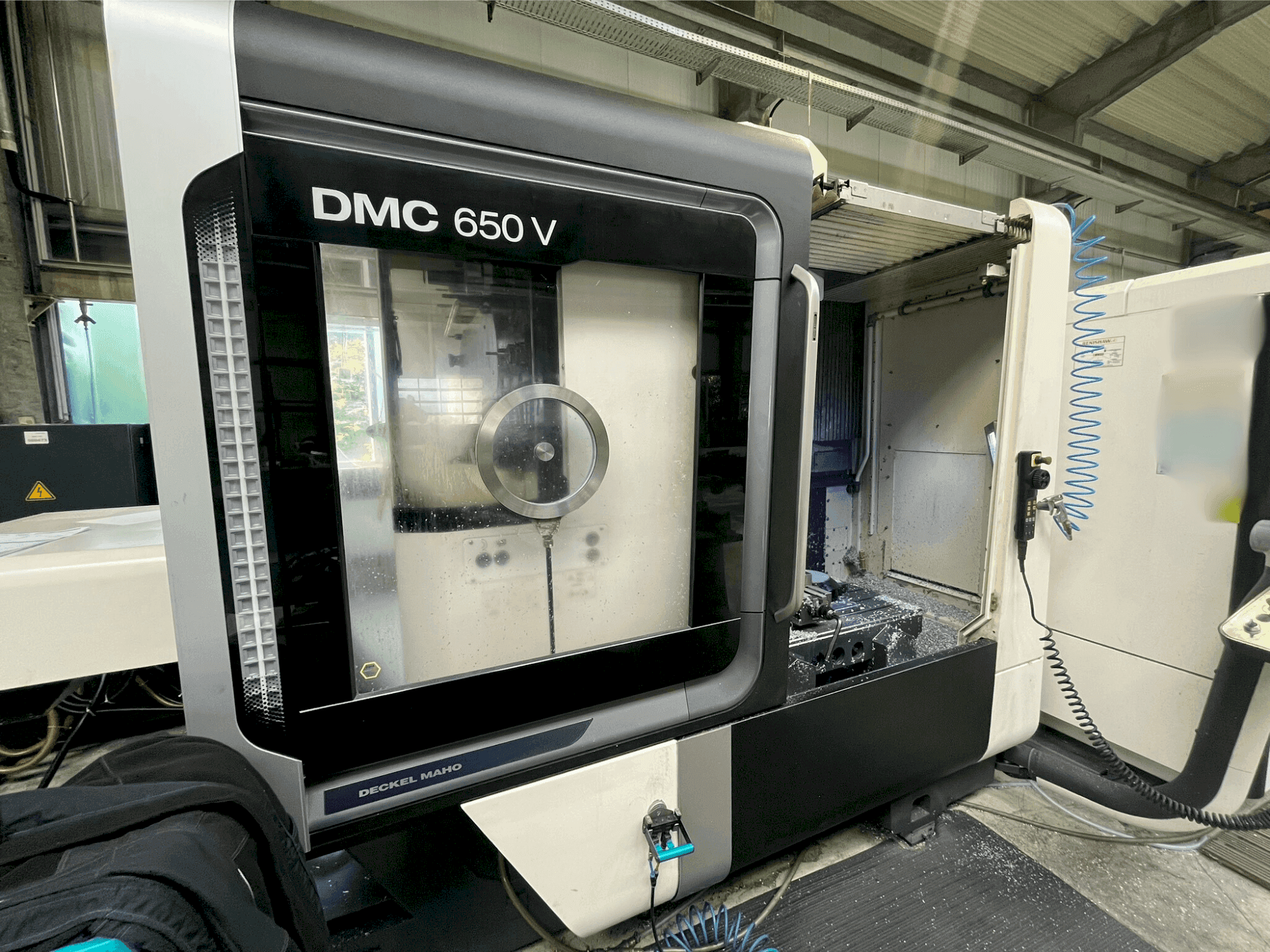

DMG MORI - DMC 650 VDE-MIL-DMG-2014-00002

Additional Equipment

• - Chip Conveyor
• - Belt Filter System
• - Replaced Main Spindle
• - optional: Pallet changer LANG Eco Compact 20 (2018) with tool measuring system / 20 LANG vices / Toolsetter OTS

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - High spindle speed for high-speed machining.
  • - Large tool capacity with a 30-fold tool changer.
  • - Efficient chip management system.
  • - Inner cooling through spindle
• Qualitative Machine Benefits:
  • - Precision control with heidenhain tnc640.
  • - Enhanced performance with the replaced main spindle.
  • - Attached the service report for the spindle change / your customer is welcome to visit the machine and check the geometry / the lang automation is optional available too (2018)

Extra information

• - 36 m/min rapid traverse Inline spindle with 14.5 kW / 11.5 kW 3D control, UNS ERGOline® Control Tool clamping according to DIN 69872 20-position SK40 tool changer Table size 900 x 570 mm Indirect X, Y, Z position measuring systems 3D control Heidenhain TNC 640 User interface ERGOline Control, 19" screen HSK-A63 for tool holder according to DIN 69893 Power: 24 / 16 kW Torque: 100 / 77 Nm 30-position HSK-A63 tool magazine Chain magazine with holders and double gripper device, incl. direct X, Y, and Z measuring systems Incl. sealing air for the measuring systems. Incl. direct manual tool loading into the tool magazine Infrared measuring probe Renishaw PP 60 optical MPC Machine Protection Control Machine protection through quick shutdown Internal coolant supply Basic Package 3 consisting of: Rotary feedthrough spindle, Internal coolant supply Paper belt filter 40 bar / 600 l Chip conveyor, bed flushing, cabin roof Rotating viewing window Electronic handwheel

Payment Terms

• Payment in advance

• Asset Financing
