➤ Used DMG MORI DMC 125 U duoBLOCK For Sale | gindumac.com

Show in original language

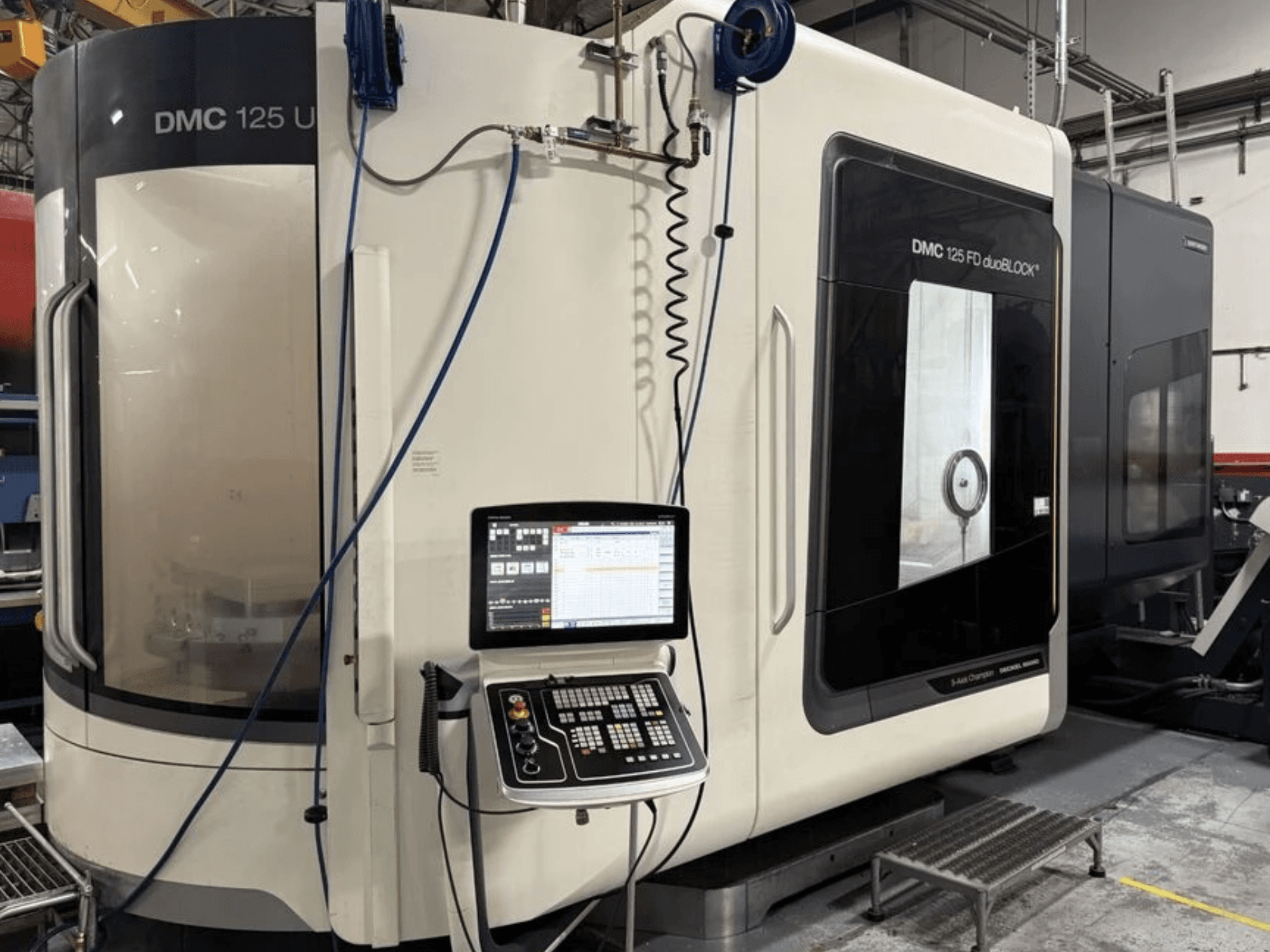

This 5-axis DMG MORI DMC 125 U duoBLOCK was manufactured in 2022. It features a working range of 1,250 mm x 1,250 mm x 1,000 mm and a spindle speed of 15,000 rpm. The machine includes a universal milling head with a controlled B-axis and a tool magazine with 273 slots. If you are looking to get high-quality machining capabilities, consider the DMG MORI DMC 125 U duoBLOCK universal machining centre we have for sale. Contact us for further details.

Overview

brand: DMG MORI
year: 2022
MODEL: DMC 125 U duoBLOCK
application type: Milling
Location: Germany
machine type: Universal Machining Centre
control unit brand: HEIDENHAIN

Technical Information - DMG MORI DMC 125 U duoBLOCK

Control Unit

Control Brand: HEIDENHAIN
Control Model: TNC 640

Dimensions

Machine Weight: 50000 kg

Movement

Number of Axes: 5
X-axis Travel: 1250 mm
Y-axis Travel: 1250 mm
Z-axis Travel: 1000 mm

Technical Specification

Spindle Speed: 15000 RPM

Additional Information

- Number of Axes: 5 axes (X, Y, Z, B-axis universal milling head, C-axis NC rotary table)

- Working Range / Travels (X x Y x Z): 1,250 mm x 1,250 mm x 1,000 mm

- Main Drive Spindle: speedMASTER 15,000 rpm (HSK-A 63 DIN 69893 option installed)

- Spindle Power: 46 kW (40% ED) / 30 kW (100% ED)

- Spindle Torque: 200 Nm (40% ED) / 130 Nm (100% ED)

- Milling Head: Universal milling head with controlled B-axis

- Control System: CELOS with Heidenhain TNC 640 (21.5" ERGOline Touch Control)

- Tool Magazine: 3-wheel wheel magazine with 273 magazine slots

- Pallet Storage / Automation: RPS 7 (Round Pallet Storage System 7) including 5 pallets (1,000 mm x 800 mm) + 2 machine pallets (7 pallets total system capacity)

- Pallet Execution: "Blank" execution (without T-slots and grid pattern, with centering bushes)

- Coolant System: 980 l coolant tank, frequency-controlled internal coolant supply (IKZ) adjustable 10 to 80 bar (31 l/min theoretical capacity)

- Filtration / Extraction: Mechanical oil and emulsion mist extraction unit (throughput 1,600 m³/h)

- Measuring Systems & Probes: Heidenhain TS 460 infrared touch probe, Blum Laser DIGILOG in-machining area tool measuring unit, 3D quickSET calibration software package

- Machine Protection & Tuning: MPC (Machine Protection Control), ATC (Application Tuning Cycle)

- Tool Identification: QR code tool identification system (Datalogic reader unit)

- Auxiliary Equipment: Rotating clear-view window, chip conveyor, coolant flush gun, compressed air through spindle center, electronic handwheel

- Machine Total Gross Weight: 49,965 kg

- Machine Total Net Weight: 46,915 kg

- Base Machine Transport Dimensions (L x W x H): 650 cm x 350 cm x 375 cm

- Round Storage RPS7 Dimensions (L x W x H): 600 cm x 450 cm x 310 cm

- Wheel Magazine Dimensions (L x W x H): 500 cm x 240 cm x 350 cm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
