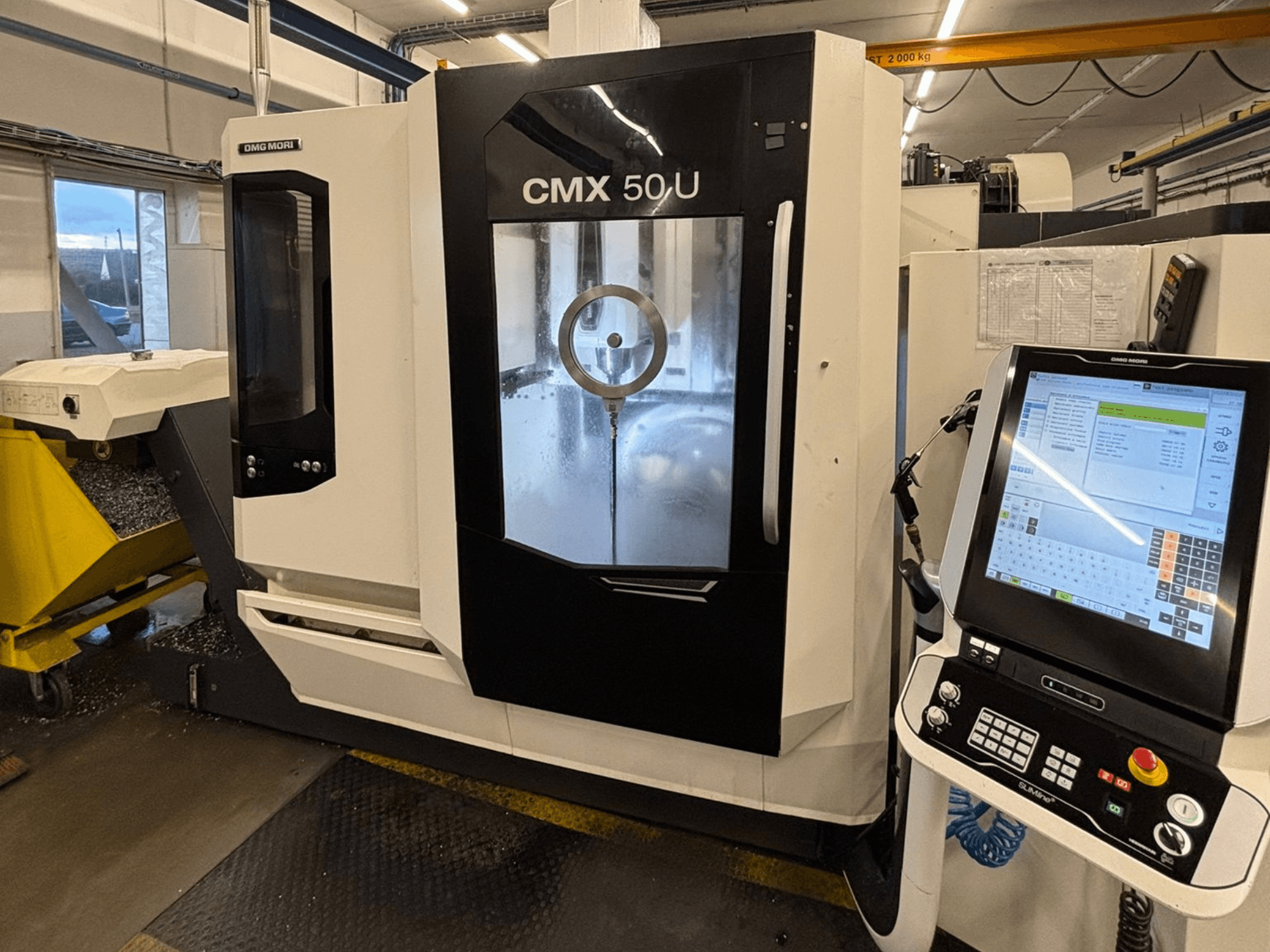

This 5-axis DMG MORI CMX 50 U + PH150 was manufactured in 2019. It features an X-axis travel of 500 mm, Y-axis travel of 450 mm, and Z-axis travel of 400 mm. The machine is equipped with a powerful spindle capable of 12,000 RPM and a tool magazine for 60 tools. It includes a PH150 automationsystem. If you are looking to get high-quality machining capabilities, consider the DMG MORI CMX 50 U + PH150 vertical machining centre we have for sale. Contact us for further details.
Overview
- brand: DMG MORI
- year: 2019
- MODEL: CMX 50 U + PH150
- production hours: 14435
- application type: Milling
- Location: Czech Republic
- machine type: Vertical Machining Centre
- Available from: 22/06/2026
- control unit brand: HEIDENHAIN
Technical Information - DMG MORI CMX 50 U + PH150
Control Unit
- Control Brand: HEIDENHAIN
- Control Model: TNC 620
Movement
- Number of Axes: 5
- X-axis Travel: 500 mm
- Y-axis Travel: 450 mm
- Z-axis Travel: 400 mm
Technical Specification
- Number of Tools: 60
- Spindle Power: 13 kW
- Spindle Speed: 12000 RPM
- Taper Size: SK 40
Additional Information
B-axis: -5/+110°
C-axis: 360°
Spindle torque (40%/100%): 57/83 Nm
Rapid traverse: 30 m/min
Tool magazine: 60 tools with double gripper
Direct measurement on X/Y/Z axes
Renishaw tool and workpiece probes
Tank capacity: 250 liters
3D Quickset
Electronic handwheel
Additional equipment
Chip conveyor
Pallet system DMG MORI PH 150 with 6 pallets (398 x 398 mm)
Erowa MTS clamping system
2 identical machines available!
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
