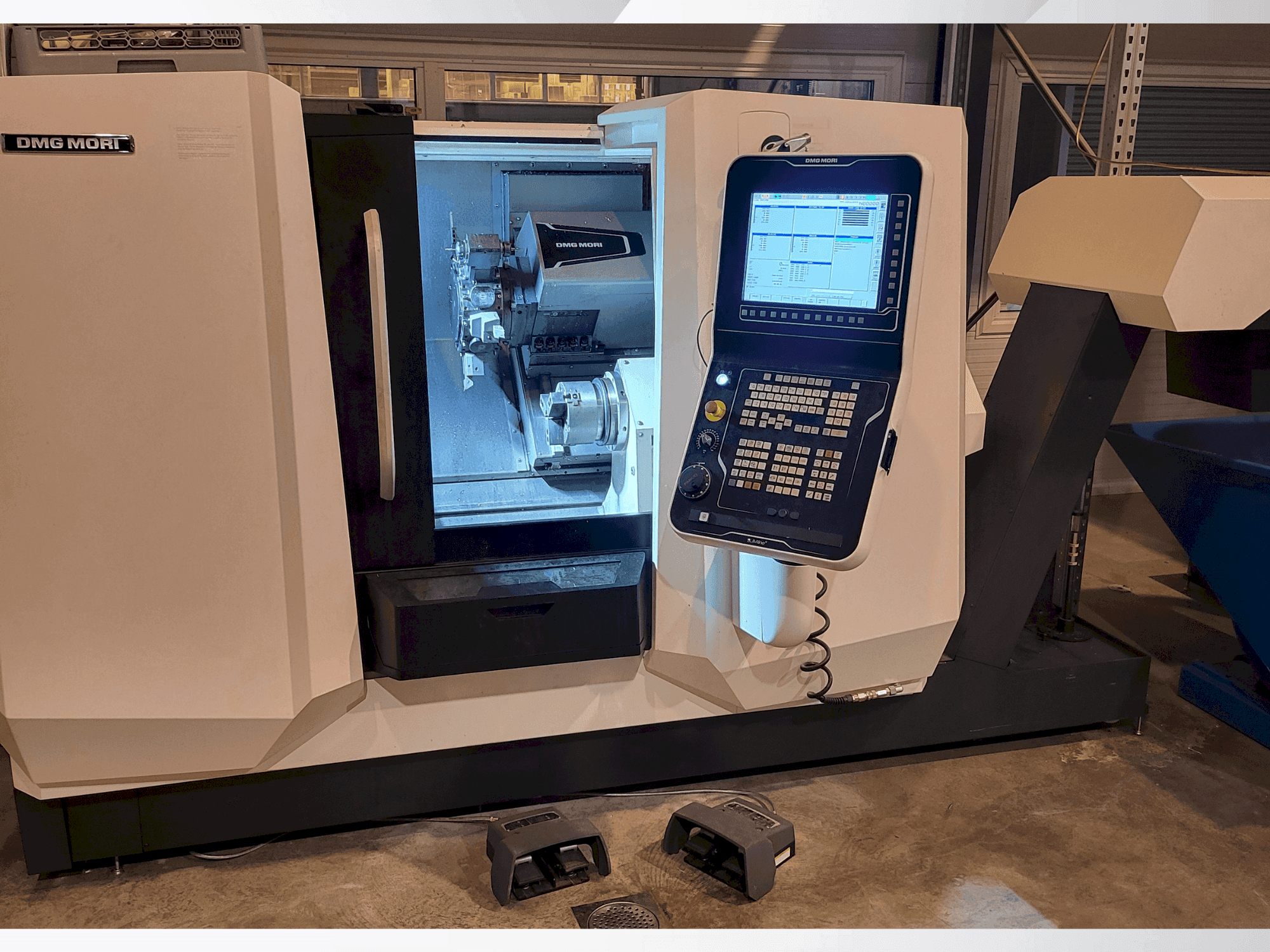

DMG MORI - CLX350 V6NO-TUR-DMG-2019-00001

Additional Equipment

• - Manual tool measuring arm
• - Part-catcher
• - Bar-feeder interface
• - Number of Tool Stations: 12 / Shank Diameter According to DIN 69880: 30 mm / Number of Driven Tools: 12 / Maximum Speed: Up to 5000 rpm / Maximum Power (40% DC): 5.65 kW
• - Pneumatic workpiece ejection device. / Tool monitoring system (Fanuc). / Tool monitoring system (Fanuc). / Direct measuring system for X/Y axes. / High-pressure pump (12 bar). / Manual tool measuring probe (MARPOSS). / Bar package and bar interface.
• - Chip conveyor with side discharge.

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Workpiece Ø210 and Ø175 chuck
  • - Swing diameter over guideways: 580 mm / swing diameter over guideways: 580 mm
  • - Work spindle (left): spindle bore: 73 mm / bar diameter: 65 mm / spindle diameter on front bearing: 120 mm / motor power (100% dc): 11 kw / motor power (40% dc): 16. 5 kw / speed range: up to 5000 rpm / torque (100% dc): 112 nm / maximum torque (40% dc): 168 nm / c-axis speed: up to 100 rpm / c-axis holding torque: 168 nm
  • - Work spindle (right): spindle bore: 45 mm / spindle diameter on front bearing: 90 mm / motor power (100% dc): 12. 6 kw / motor power (40% dc): 16. 2 kw / speed range: up to 5000 rpm / torque (100% dc): 48 nm / maximum torque (40% dc): 62 nm / c-axis speed: up to 300 rpm / c-axis holding torque: 62 nm
  • - Longitudinal stroke: 465 mm / transverse stroke: 185 mm / y-axis (vertical): ±40 mm
