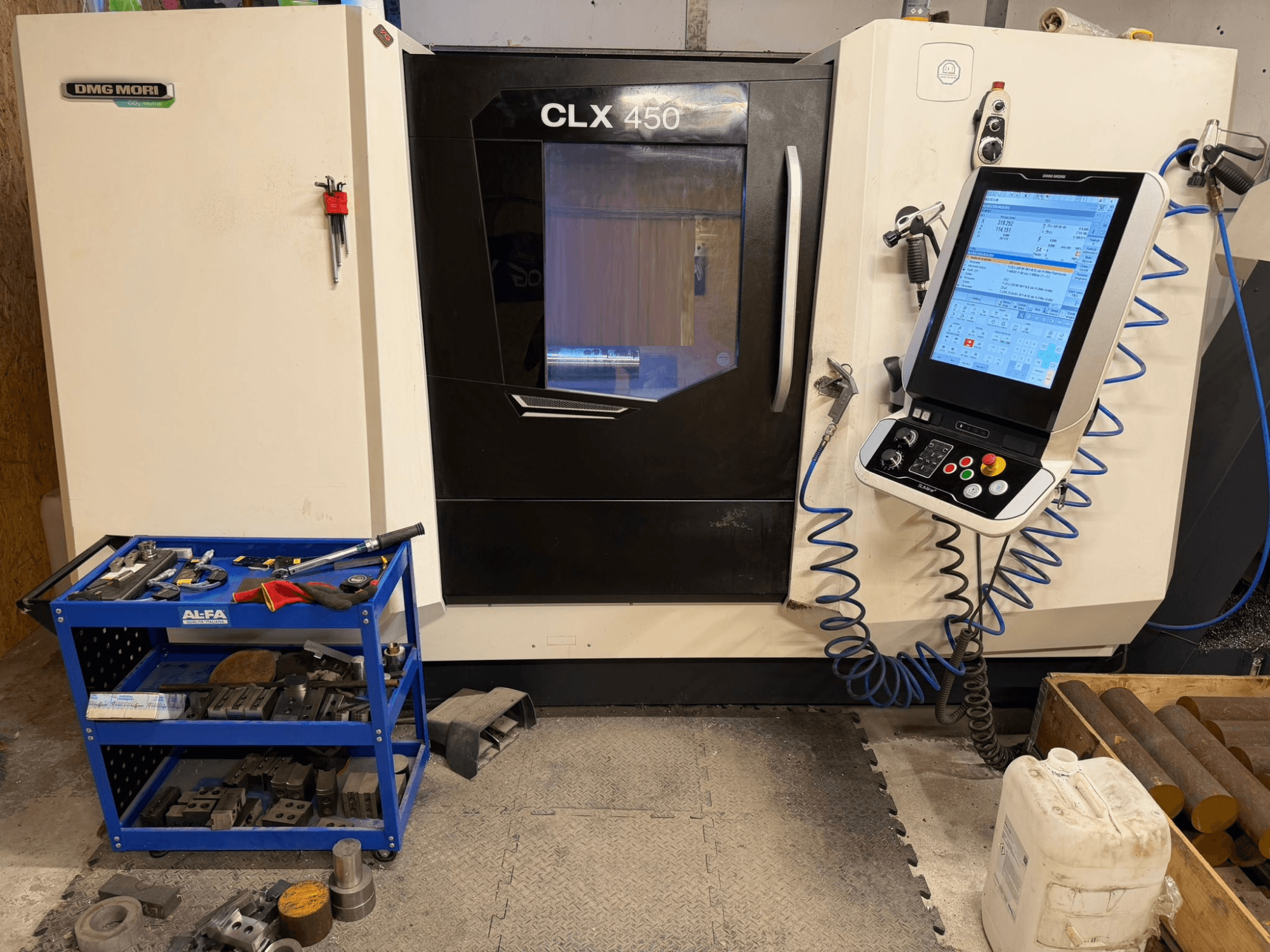

This 3-axis DMG MORI CLX 450 V3 was manufactured in 2022. It features a maximum turning diameter of 400 mm and a Z-axis travel of 600 mm. The machine is equipped with a powerful spindle capable of 4000 rpm and includes 12 driven tool stations for enhanced versatility. If you are looking to get high-quality turning capabilities, consider the DMG MORI CLX 450 V3 horizontal turning machine we have for sale. Contact us for further details.
Overview
- brand: DMG MORI
- year: 2022
- MODEL: CLX 450 V3
- production hours: 1426
- application type: Turning
- Location: Poland
- machine type: Horizontal Turning Machine
- control unit brand: SIEMENS
Technical Information - DMG MORI CLX 450 V3
Control Unit
- Control Brand: SIEMENS
- Control Model: SLIMline multi-touch
Dimensions
- Machine Weight: 5500 kg
Movement
- Number of Axes: 3
- X-axis Travel: 267.5 mm
- Z-axis Travel: 600 mm
Technical Specification
- Counter Spindle: No
- Driven Tools: Yes
- Spindle Power: 25.5 kW
- Spindle Speed: 4000 RPM
Additional Information
Version: V3 (no Y-axis); configured for turning + milling (C-axis)
Working area:
Swing over bed: 650 mm
Swing over cross slide: 465 mm
Max. turning diameter: 400 / 315 mm
Rapid traverse X/Z: 30 / 30 m/min
Axes: X, Z, C; C-axis positioning accuracy: 20 arcsec
Main spindle:
Spindle nose: A2-8
Bar capacity: 80 mm
Front bearing diameter: 130 mm
Chuck diameter options: 210 / 250 / 315 mm
Spindle power (40% / 100%): 25.5 / 17 kW
Max. torque (40% / 100%): 426 / 283 Nm
Turret (VDI 40):
12 stations (12 driven)
Tool station diameter: 40 mm
Driven tool power: 5.44 kW
Driven tool torque: 20 Nm
Driven tool max speed: 4000 rpm
Tailstock:
Travel: 500 mm
Center interface: MK5
Max. force: 8 kN
Guideways / Ballscrews: X/Z 40 × 10 mm
Accuracy: Positioning accuracy X/Z: 5 / 10 µm
Capacity / Workholding:
Max. bar capacity: 80 mm
Hydraulic chuck: Ø 254 mm (installed)
Chuck bore: 82 mm
Coolant & chip handling: Coolant gun 5 bar; Chip tank
Control: Siemens SLIMline multi-touch (19")
Dimensions & weight:
Weight without chip conveyor: approx. 4950 – 5050 kg
Weight with chip conveyor: approx. 5500 kg
Notes: Full 12 driven tool stations
Additional equipment
Chip conveyor (right-side discharge)
Hydraulic tailstock (M-function controlled)
Direct measuring system (X-axis)
External electronic handwheel
DMG MORI IoTconnector
Marposs tool probe
Signal tower (4-color)
Set of static tool holders VDI 40
Set of driven tools WTO (QuickFlex, ER32)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
