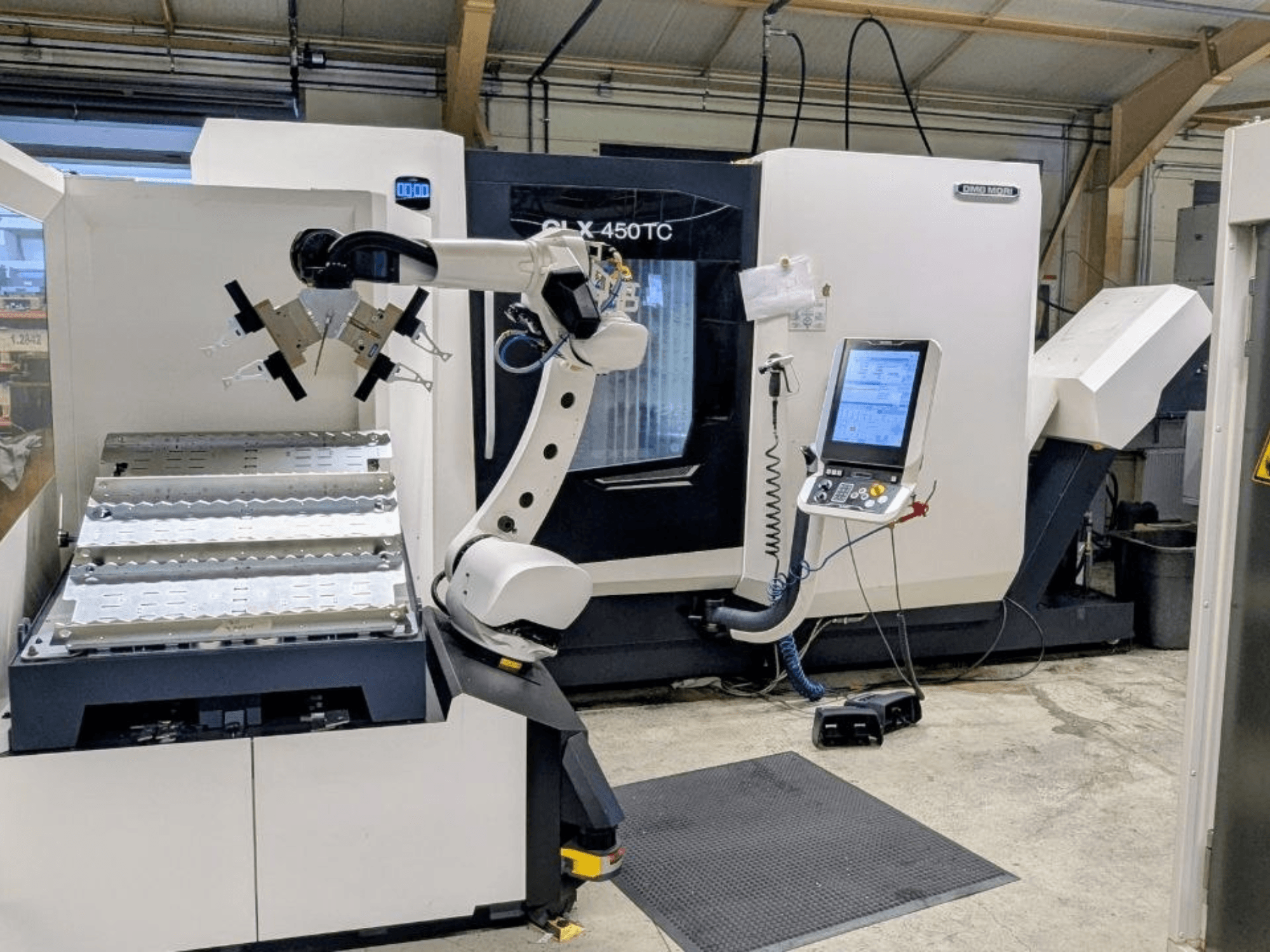

This 5-axis DMG MORI CLX 450 TC + Robo2go was manufactured in 2021. It features a swing diameter over bed of 500 mm, a turning diameter of 400 mm, and a maximum turning length of 1100 mm. The machine includes a powerful milling spindle with speeds up to 12,000 rpm and a tool magazine with 30 positions. If you are looking to get high-quality turning capabilities, consider the DMG MORI CLX 450 TC + Robo2go machine we have for sale. Contact us for further details.
Overview
- brand: DMG MORI
- year: 2021
- MODEL: CLX 450 TC + Robo2go
- production hours: 1992
- application type: Turning
- Location: Germany
- machine type: Horizontal Turning Machine
- control unit brand: SIEMENS
Technical Information - DMG MORI CLX 450 TC + Robo2go
Control Unit
- Control Brand: SIEMENS
- Control Model: SINUMERIK 840D sl SLIMline
Dimensions
- Machine Height: 2470 mm
- Machine Length: 5190 mm
- Machine Weight: 11200 kg
- Machine Width: 2110 mm
Movement
- Number of Axes: 5
- X-axis Travel: 300 mm
- Y-axis Travel: 500 mm
- Z-axis Travel: 1100 mm
Technical Specification
- Counter Spindle: Yes
- Driven Tools: Yes
- Spindle Power: 10.5 kW
- Spindle Speed: 12000 RPM
- Through-spindle Coolant: Yes
- Tool Stations: 30
Additional Information
Status: demonstration/training/exhibition machine
Control: Siemens SINUMERIK 840D sl SLIMline, 19" SLIMline multi-touch display
Swing over bed: 500 mm
Max turning diameter: 400 mm
Max turning length: 1100 mm
Bar capacity: 65 mm
Main spindle bore: 87 mm
Front bearing diameter: 130 mm
Knick speed: 485 rpm
Spindle torque (100% duty): 275 Nm
Spindle torque (40% duty): 345 Nm
Milling spindle interface: HSK-A63 (DIN 69893)
Milling spindle speed: up to 12,000 rpm
Milling spindle power (100% duty): 8.8 kW
Milling spindle power (40% duty): 10.5 kW
Milling spindle torque (100% duty): 73 Nm
Milling spindle torque (40% duty): 90 Nm
Holding torque (locked): 850 Nm
Swivel range: ±120°
Tool magazine: chain type
Tool capacity: 30 tools
Max tool diameter: 78 mm
Max tool diameter with adjacent free pockets: 125 mm
Additional equipment, price on request
Robo2Go flexible workpiece loading/unloading system with 6-axis industrial robot
Interchangeable workpiece storage with trays
Capacity: up to 88 parts (Ø ≤ 60 mm); up to 29 parts (Ø ≤ 125 mm)
Robot payload: up to 35 kg (modules: 10 / 20 / 35 kg)
Gripper base: triangular with blow-off nozzle; manual pressure adjustment
3-jaw gripper for chuck parts (internal/external)
Minimum workpiece length: 20 mm
Diameter range external: Ø20–100 mm (module dependent)
Diameter range internal: Ø65–210 mm
3-jaw gripper variants for shaft parts: Ø20–170 mm
Additional 2-jaw grippers for chuck/shaft parts: Ø20–80 mm (shaft parts)
Trays: max load 500 kg; workpiece Ø20–170 mm; length 120–950 mm; up to 5 levels
Interfaces: electrical interface for Robo2Go, Profibus, additional compressed air, additional Ethernet
Separate control terminal; integration into CELOS control
Robot special coating: RAL 9010
Machine prepared for automation integration
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
