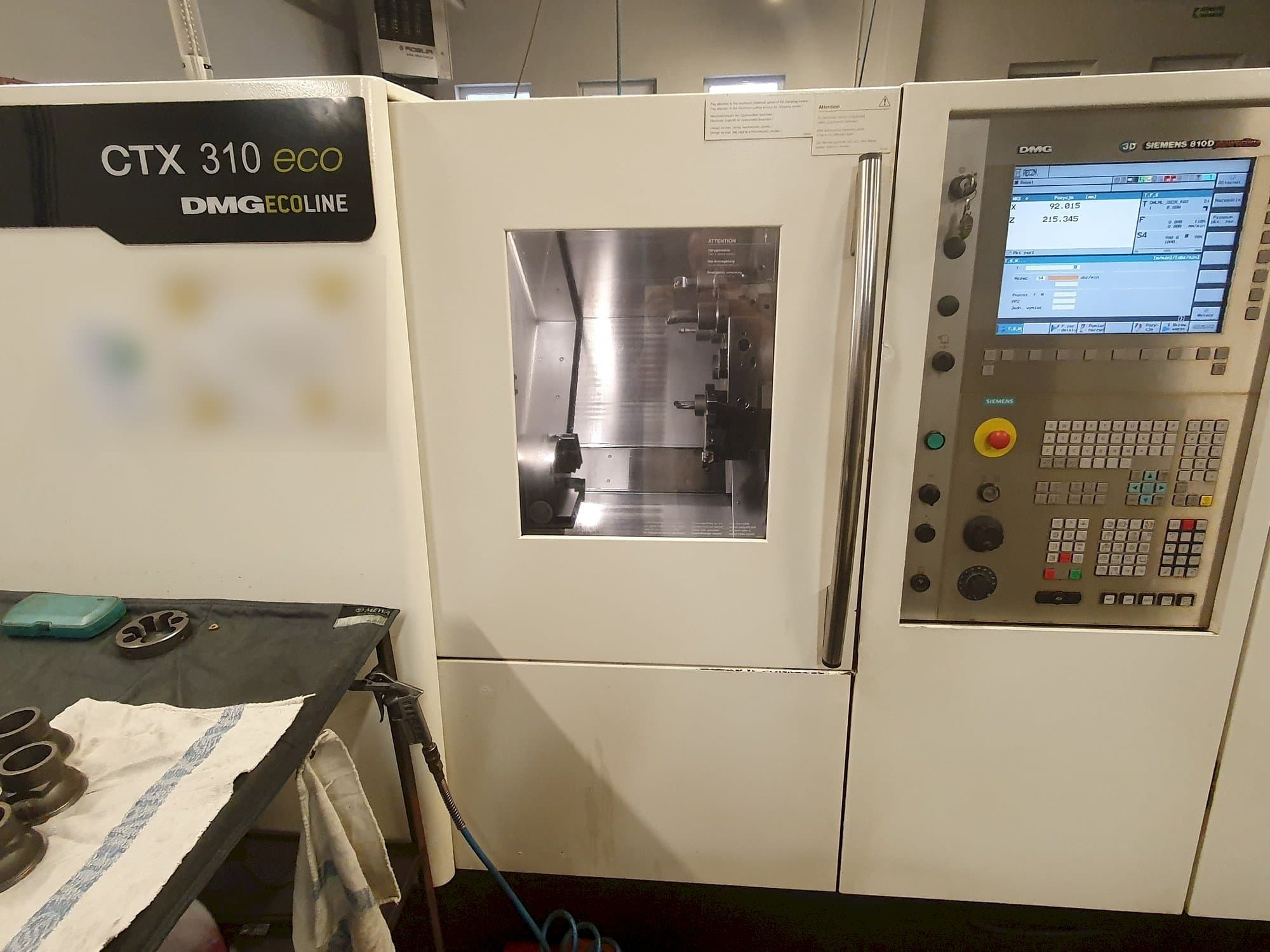

Front view of DMG GILDEMEISTER ecoline CTX 310 eco V3 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

DMG ecoline CTX 310 eco V3

Photo Gallery

DMG - ecoline CTX 310 eco V3PL-TUR-DMG-2009-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
DMG GILDEMEISTER ecoline CTX 310 eco V3 Lathe

Show in original language

This DMG ecoline CTX 310 eco V3 Lathe was built in Poland in the year 2009. It has been power on for 28500 hours. This 3 axis machine is equipped with a Siemens 810D z ShopTurn control unit. It can operate with a spindle speed up to 5000 rpm. The machine is always serviced by DMG service. Full documentation is available.

Overview

brand: DMG
year: 2009
MODEL: ecoline CTX 310 eco V3
production hours: 28500
application type: Turning
Location: Poland
machine type: Turn-Mill Centre
availability: Sold
control unit brand: SIEMENS

Technical Information - DMG ecoline CTX 310 eco V3

General Data

Measurements width: 4470 mm
Measurements depth: 2010 mm
Measurements height: 1740 mm
Machine weight: 3800 KG

Control Unit

Model: 810D z ShopTurn
Brand: SIEMENS

Main drive

Spindle speed range: 5000 1/MIN
Spindle bore: 68.5 mm
Number of axis: 3

Movement

X-AXIS Movement: 160 mm
Z-AXIS Movement: 450 mm

Turret

Number of tool slots: 12 Pos.

Tools

Slots in storage: 6 pos

Media

Main electronic connection: 400 V / 50 Hz
Power consumption: 21 kVA
Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max turning diameter: 200 mm
- - Max turning length: 393 mm
- - Swing diameter: 330 mm
- - Max bar diameter: 51 mm
- - Max dia. Of the holder: 210 mm
- - Turret head: vdi 40 din 69880
- - Driven tools: 4500 rpm
- - C-axis speed: 0-100 rpm
- - C- axis: torque 112 nm
- - C-axis graduation accuracy: 0. 04 grad
Qualitative Machine Benefits:
- - Range of automatic tailstock travel: 400 mm
- - Max. Axial pressure of the tailstock: 400 dan
- - Probe included
- - There are no tooling included
- - Machine in very good, working condition and ready for tests
- - Full documentation available
- - Always serviced by dmg service

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
