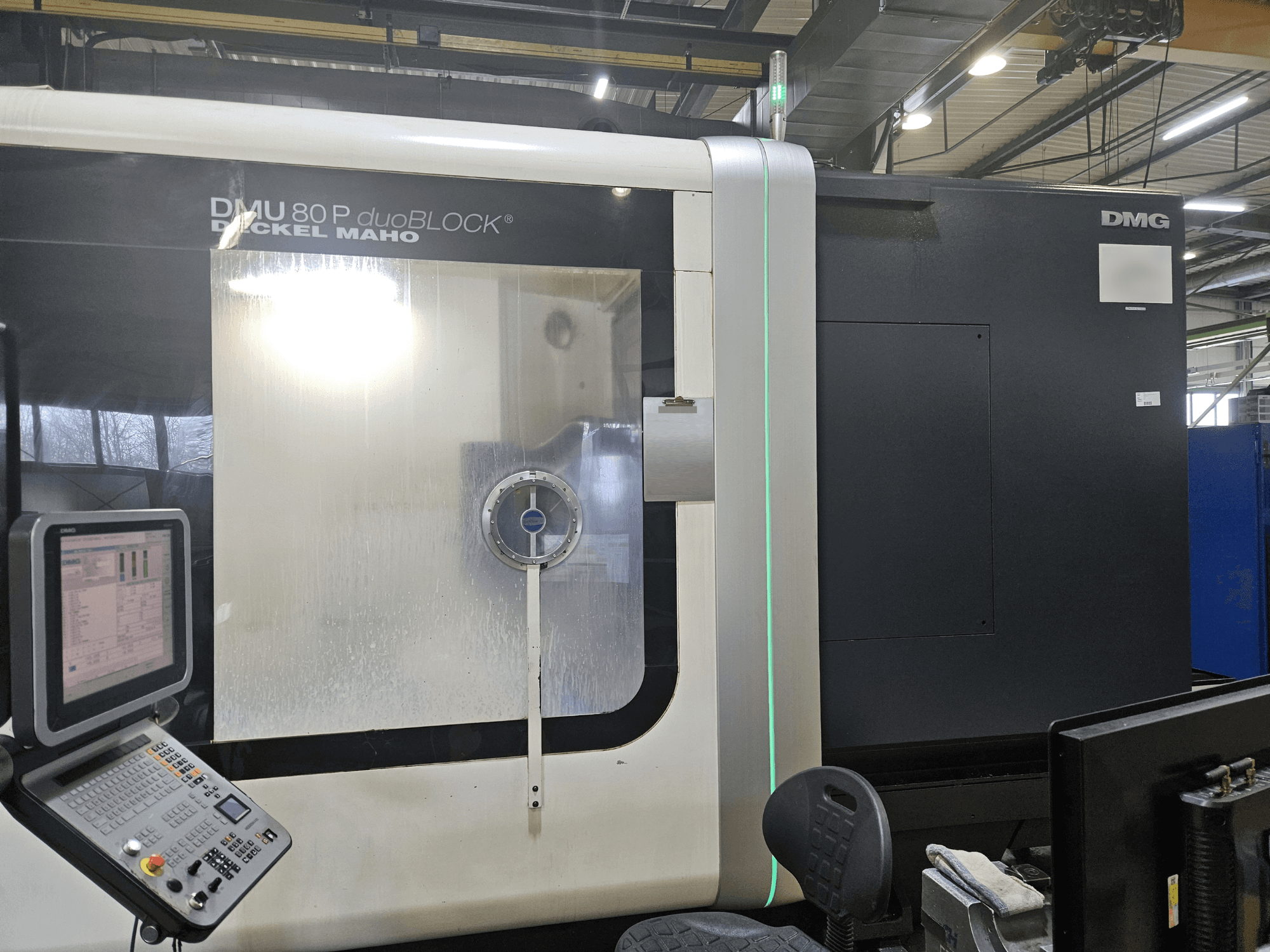

DMG DECKEL MAHO DMU 80P duoBLOCK vertical machining center, front view showcasing control panel and illuminated cutting area.
DMG DECKEL MAHO DMU 80P duoBLOCK vertical machining center, front view showcasing control panel and illuminated cutting area.

DMG DECKEL MAHO - DMU 80P duoBLOCKPL-MIL-DMG-2009-00002

£ 76,871
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 5-axis DMG DECKEL MAHO DMU 80P duoBLOCK was manufactured in 2009. It features impressive axis travels with X-axis at 800 mm, Y-axis at 1050 mm, and Z-axis at 850 mm. The machine includes a robust table size of Ø 900 × 700 mm and a maximum workpiece weight capacity of 1800 kg. If you are looking to get high-quality machining capabilities, consider the DMG DECKEL MAHO DMU 80P duoBLOCK vertical machining centre we have for sale. Contact us for further details.

Overview

  • brand: DMG DECKEL MAHO
  • year: 2009
  • MODEL: DMU 80P duoBLOCK
  • production hours: 35295
  • application type: Milling
  • Location: Poland
  • machine type: Vertical Machining Centre
  • control unit brand: HEIDENHAIN

Technical Information - DMG DECKEL MAHO DMU 80P duoBLOCK

Control Unit

  • Control Brand: HEIDENHAIN
  • Control Model: iTNC 530

Dimensions

  • Machine Height: 3200 mm
  • Machine Length: 3400 mm
  • Machine Weight: 13000 kg
  • Machine Width: 5400 mm
  • Table Length: 700 mm
  • Table Load: 1400 kg
  • Table Width: 900 mm

Movement

  • B-axis Max: 180°
  • B-axis Min: -30°
  • C-axis: 360°
  • Number of Axes: 5
  • X-axis Travel: 800 mm
  • Y-axis Travel: 800 mm
  • Z-axis Travel: 800 mm

Technical Specification

  • Number of Tools: 48
  • Spindle Speed: 12000 RPM
  • Taper Size: SK 40
  • Through-spindle Coolant: Yes

Additional Information

  • Rotary axes: B-axis (tilting head) -30° to +180°; C-axis (rotary table) 360° continuous

  • Table size: approx. Ø 900 × 700 mm

  • Max. workpiece weight: approx. 1400–1800 kg

  • Spindle type: Vertical milling spindle

  • Coolant through spindle (CTS): yes

  • CE compliant

  • Condition: Very good working condition; full service history available

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
