DECKEL MAHO - DMC 60H hi-dynDE-MIL-DEC-2000-00005
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- ➤ Used DECKEL MAHO DMC 60H hi-dyn For Sale | gindumac.com

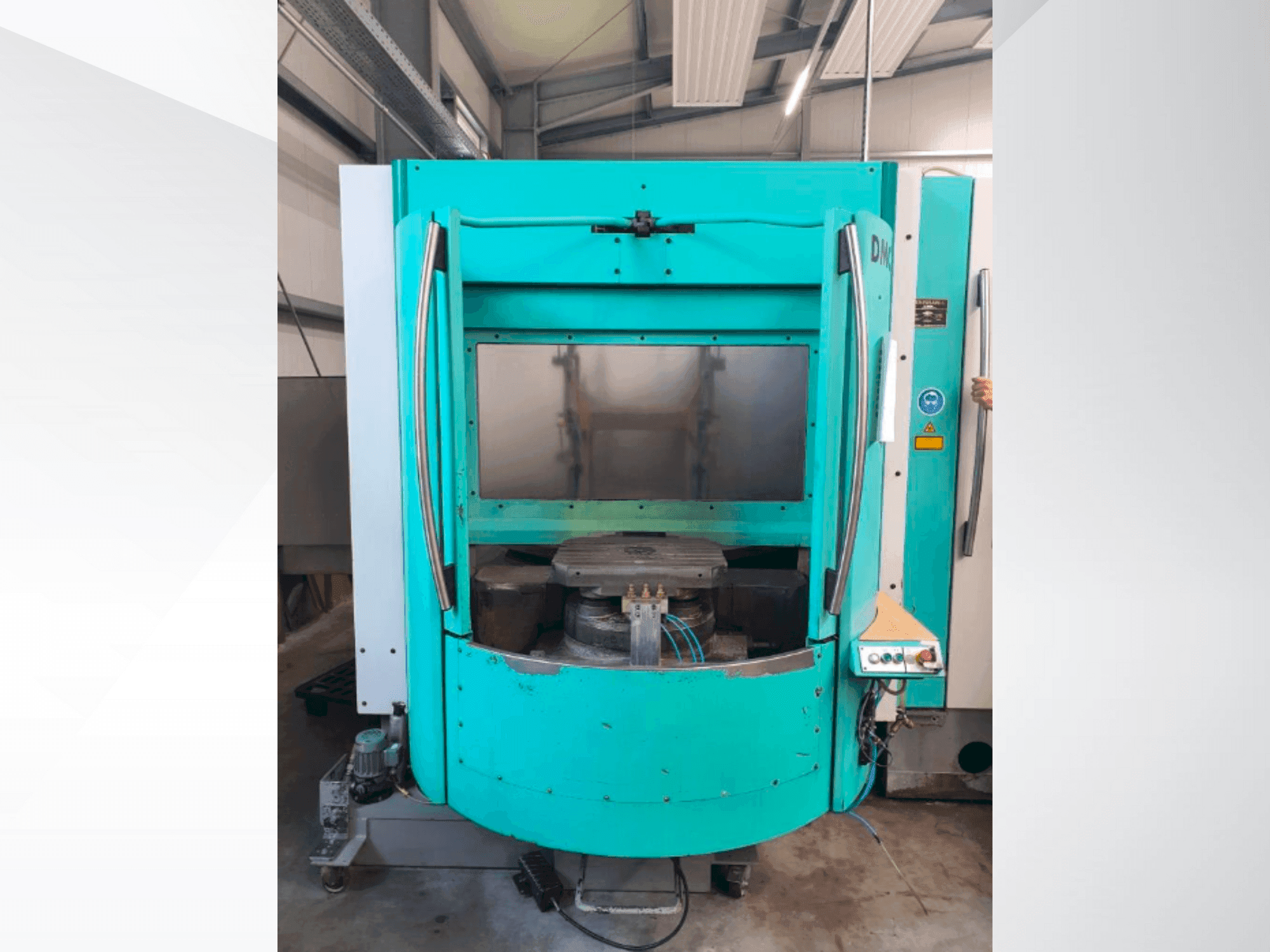

This 4-axis DECKEL MAHO DMC 60H hi-dyn was manufactured in 2000. It features a Siemens Sinumerik 840D control, a spindle speed up to 8000 rpm, and a 90-position tool magazine. The machine includes a pallet changer with 4 storage locations and a rapid traverse rate of 60 m/min. Ideal for high precision horizontal machining. Contact us for more information about this machine.
Overview
- brand: DECKEL MAHO
- year: 2000
- MODEL: DMC 60H hi-dyn
- production hours: 48804
- application type: Milling
- Location: Germany
- machine type: Horizontal Machining Centre
- control unit brand: SIEMENS
Technical Information - DECKEL MAHO DMC 60H hi-dyn
Control Unit
- Control Brand: SIEMENS
- Control Model: Sinumerik 840D
Dimensions
- Machine Depth: 5000 mm
- Machine Weight: 3400 kg
- Table Load: 350 kg
Movement
- Number of Axes: 4
- X-axis Travel: 600 mm
- Y-axis Travel: 560 mm
- Z-axis Travel: 560 mm
Technical Specification
- Max. Tool Weight: 10 kg
- Number of Tools: 90
- Spindle Speed: 8000 RPM
Additional Information
Additional equipment
- Coolant Type/Content: Emulsion (internal & external) / approx. 1100L
- Coolant Unit: Knoll with drum filter 30, 40, 50 bar via M-command
- Machine Accuracy: VDI / DGQ 3441
- Renishaw Measuring Probe
- Tool Breakage Detection
- Drum filter
- Pallet Sequential Operation
- Enclosed Work Area Enclosure
- Network Connection
- Technical Documents and Layout Plan available
Machine Benefits
Qualitative Machine Benefits
- Some hydraulic and pneumatic hoses replaced
- Lt module replaced in the control cabinet
- Drum on the knoll system replaced
- Regular maintenance performed
- High operational efficiency with rapid pallet and tool change times
- Comprehensive maintenance records ensuring reliability and accuracy
- Equipped with a pallet storage space (4 spaces)
- Enhanced safety features with accident prevention regulations compliance
Technical Machine Benefits
- Torque 100% / 40% duty cycle: 124 nm
- Motor power 100% / 40% duty cycle: 13 kw
- B-axis (360 x 0. 001°) 60 rpm
- Table/pallet size (lxw): 6 pallets 500x400 mm
- Table/pallet type: t-slots according to din 55201
- Pallet changer / setup station / storage location: yes / yes / yes (4 storage locations)
- Pallet change / tool change time: 6 seconds / 5 seconds
- Tool magazine type: chain magazine
- Total power requirement: 20 kw
- Hydraulic system motor and pump replaced
Extra Information
Machine still under power
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
