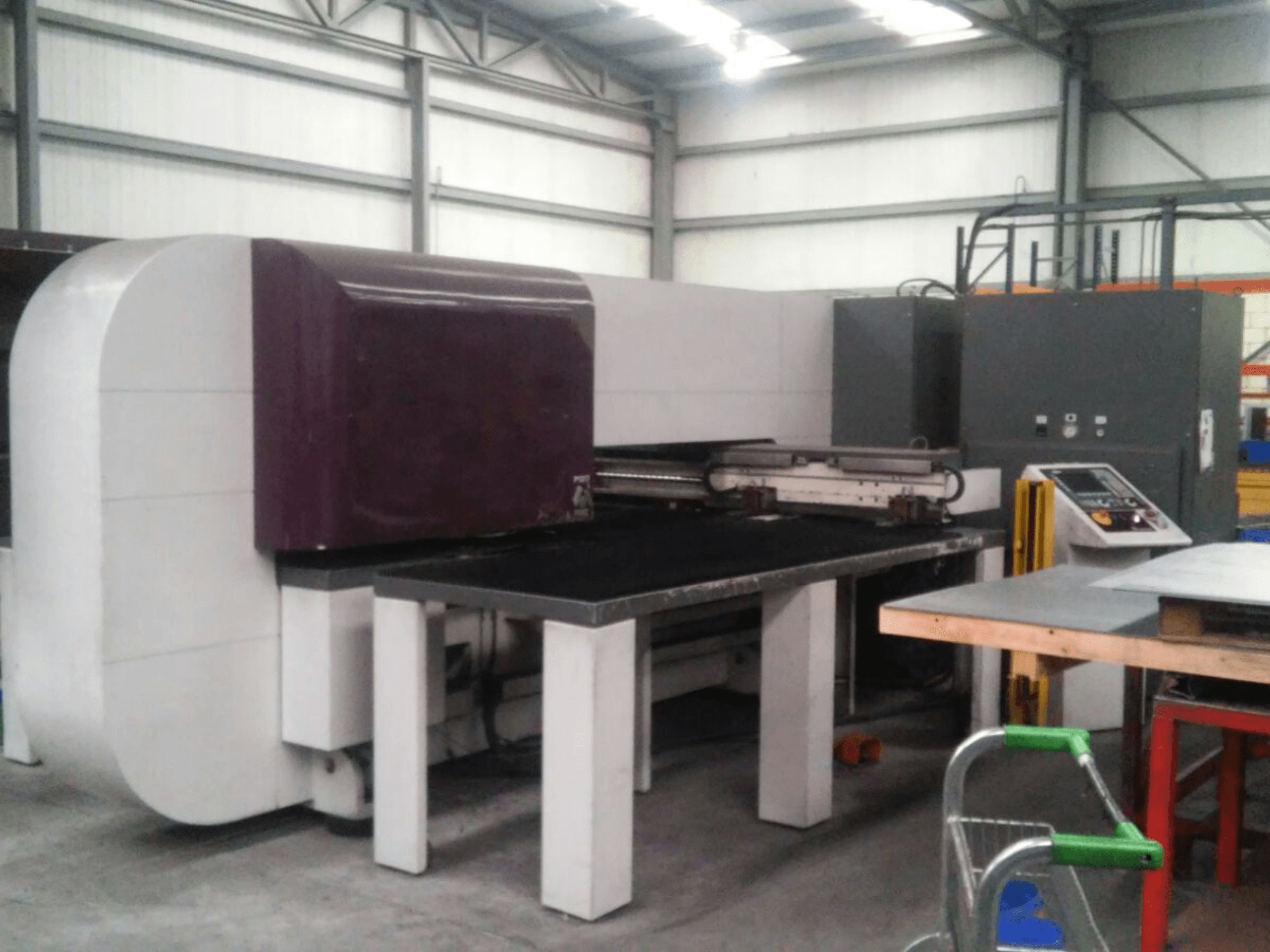

This 4-axis DANOBAT P1317 turret punch press was manufactured in 2004. It features a punching force of 300 kN, a maximum sheet thickness of 5 mm, and can perform up to 750 strokes per minute. The machine includes a Fagor 8070 CNC control, 27 turret stations, and 4 auto-index stations. Dimensions are 2,700 × 6,650 × 2,980 mm, and it weighs approximately 15,000 kg. Consider the opportunity to buy this DANOBAT P1317 turret punch press. Contact us for more information.
Overview
- brand: DANOBAT
- year: 2004
- MODEL: P1317
- production hours: 48177
- application type: Punching
- Location: Spain
- machine type: Turret Punch Press
- control unit brand: FAGOR
Technical Information - DANOBAT P1317
Control Unit
- Control Brand: FAGOR
- Control Model: 8070
Dimensions
- Machine Depth: 2700 mm
- Machine Height: 2980 mm
- Machine Weight: 15000 kg
Movement
- Number of Axes: 4
- X-axis Travel: 1600 mm
- Y-axis Travel: 1250 mm
Technical Specification
- Punching Force: 300 Kn
Additional Information
Working pressure: 280 bar
Strokes per minute: 750 spm (1 mm pitch, 3 mm cylinder stroke)
Hydraulic cylinder: Ø130 × Ø120 mm
Auto-index stations: 4 (A, B, C, D)
Positioning resolution: 0.1 mm
CNC control: Fagor 8070
Max. sheet size: 3,000 × 1,250 mm
Automatic clamping system: 6 bar working pressure, pneumatic cylinder Ø50 × Ø16 mm, ~280 kg clamping force per jaw
The machine needs adjustment of the Y-axis transmission.
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
