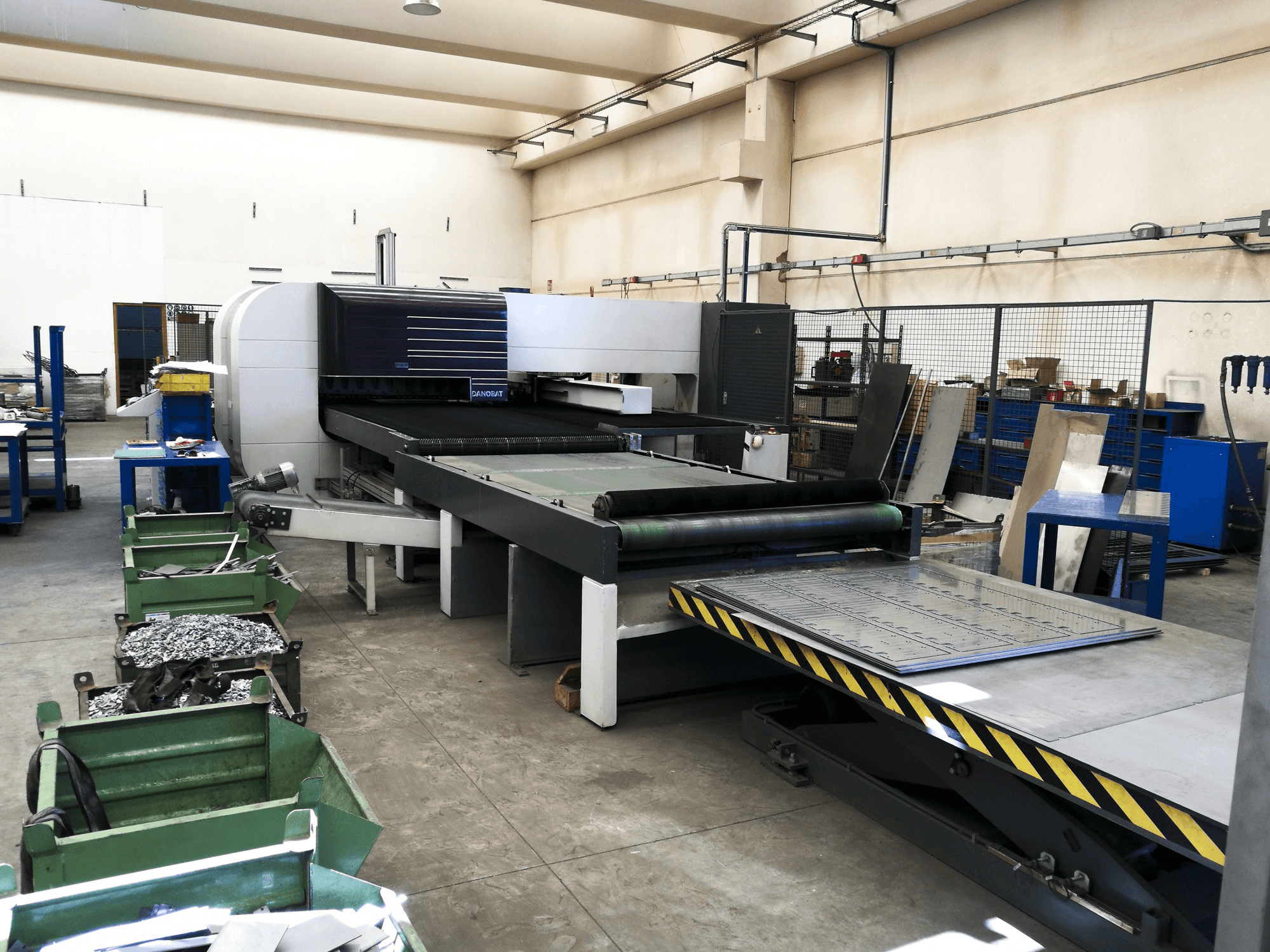

This DANOBAT Cupra 30 Turret Punching Machine was built in 2010 and has a production record of 16770 working hours. This 300 kN strong machine is operated through a DANOBAT PZ1631 Control unit with Ethernet interface and is equipped with an integrated shear, scrap separator and two sheet metal loading pallets, making its working routine fully automated. In the past, it has worked most of the time on steel and can process up to 6 mm thick sheets.
Overview
- brand: DANOBAT
- year: 2010
- MODEL: Cupra 30
- production hours: 16770
- application type: Punching
- Location: Italy
- machine type: Turret Punching Machine
- availability: Sold
- control unit brand: DANOBAT
- GINDUMAC ID: IT-PUN-DAN-2010-00001
Technical Information
General Data
- Measurements width: 18443 mm
- Measurements depth: 6073 mm
- Machine weight: 18000 kg
Control Unit
- Brand: DANOBAT
- Model: PZ1631
- Interface: Ethernet
Main drive
- Punching force: 300 kN
- Maximum sheet thickness: 6 mm
Movement
- X-AXIS Movement: 3000 mm
- X-AXIS Rapid traverse: 100 m/min
- Y-AXIS Movement: 1500 mm
- Y-AXIS Rapid traverse: 80 m/min
Workpiece
- Workpiece x: 3000 mm
- Workpiece y: 1500 mm
Tools
- Number of index: 4
- Number of stations: 43
- Max tool diameter: 88.9 mm
Media
- Main electronic connection: 400 V / 3 P / 50 Hz
- Power consumption: 17 kVA
- Air pressure: 6 bar
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
