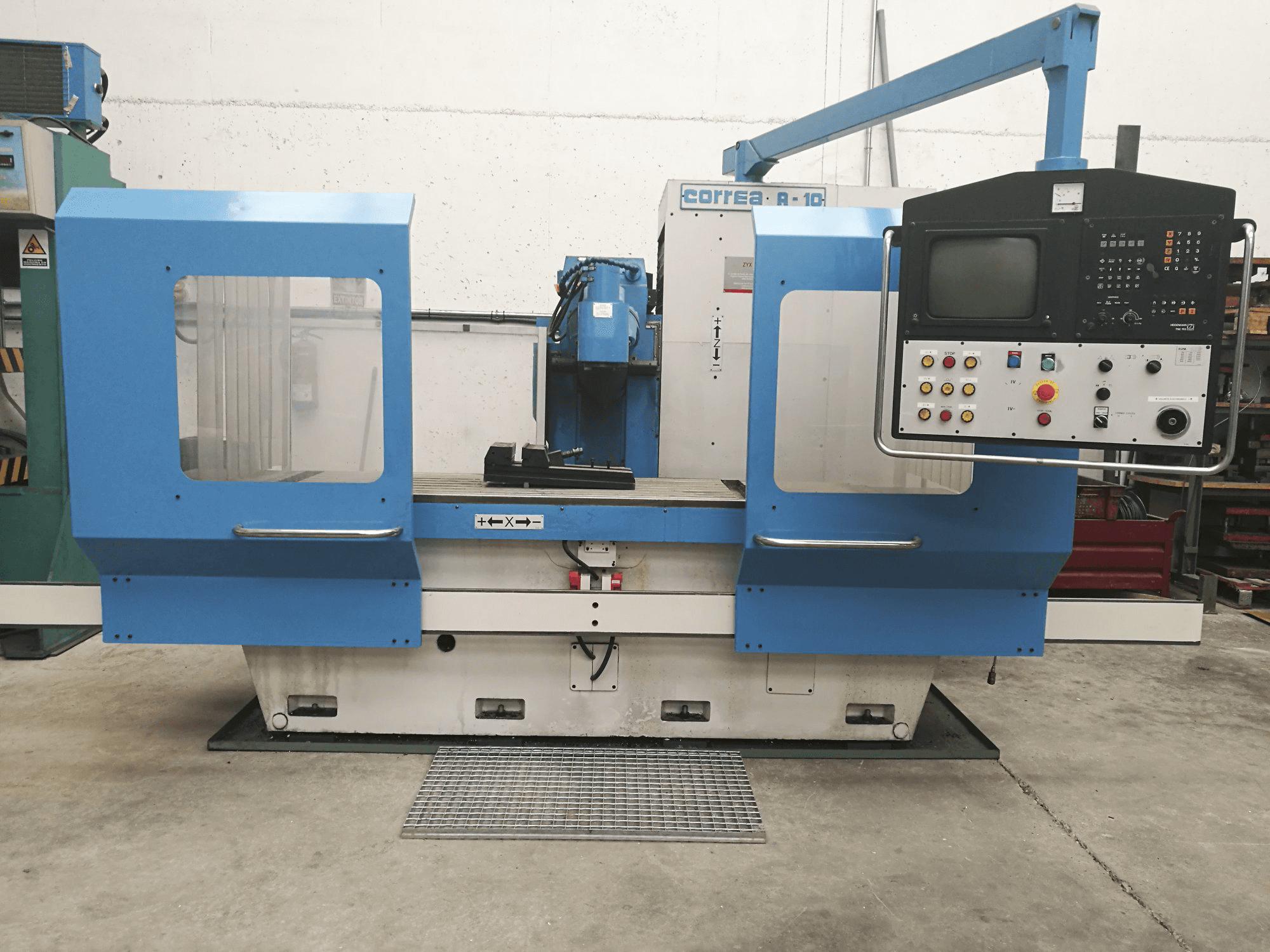

Front view of Correa A-10 Machine
Front view of Correa A-10 Machine

Thank you for your visit

This machine was recently sold.

Browse similar machines

Correa - A-10ES-MIL-COR-1987-00001

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This Correa A-10 Milling Machine was manufactured in 1987, but received a retrofitting recently and has been productive for only 50 hours since then. During its retrofitting, this robust machine has received new guards all around and a new security certificate as well, and its tempered guides, for which this machine already stood out, have been hardened as well. As additional equipment, the Correa includes tools, cones and a gag.

Overview

  • brand: Correa
  • year: 1987
  • MODEL: A-10
  • production hours: 50
  • application type: Milling
  • Location: Spain
  • machine type: Horizontal Machining Centre
  • control unit brand: HEIDENHAIN

Technical Information - Correa A-10

General Data

  • Measurements width: 3886 mm
  • Measurements depth: 2485 mm
  • Measurements height: 2175 mm
  • Machine weight: 6500 kg

Control Unit

  • Model: TNC 155
  • Brand: HEIDENHAIN

Movement

  • X-AXIS Movement: 1300 mm
  • X-AXIS Working Feed: 5000 mm/min
  • X-AXIS Rapid traverse: 8000 mm/min
  • Y-AXIS Movement: 630 mm
  • Y-AXIS Working Feed: 5000 mm/min
  • Y-AXIS Rapid traverse: 8000 mm/min
  • Z-AXIS Movement: 630 mm

Workpiece

  • Workpiece weight: 3000 kg

Table

  • Outer length: 1500 mm
  • Outer width: 630 mm
  • TSlots size: 18 mm
  • Number of tslots: 8
  • Distance between: 71 mm

    Additional Information

    Additional equipment

    • Tools, gag and cones

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

    Your account manager:

    Borja Garcia

    Borja Garcia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

    get in contact

    Payment Terms

    • Payment in advance

    • Asset Financing
