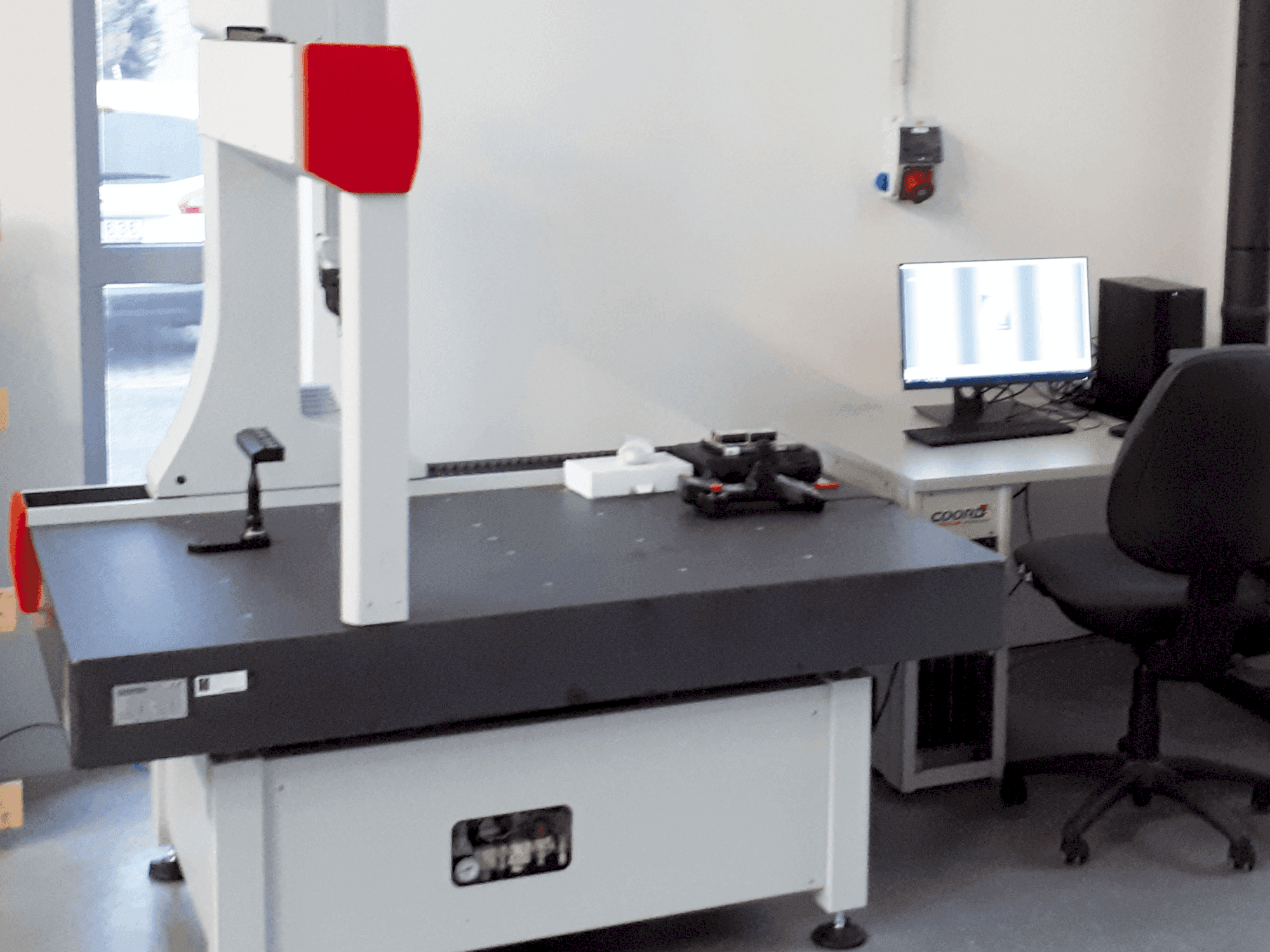

Coord3 - ARES NT-L 10.7.5 CNCHU-MEA-COO-2018-00001

Additional equipment

• Air-cooled drying system
• CE compliance certification
• Equipped with an air filter and regulator system
• High-precision RSF optical scales and sensors

Machine Benefits

Technical Machine Benefits

• Air cushion bearings for structure support and increased measurement accuracy
• Pneumatic counterbalance for the vertical probe holder
• Automatic fall protection for head in case of air outage
• All geometric and measurement checks executed under stable temperature conditions (20°c) as per iso 10360/2 standards
• Resolution: 0. 0001 mm
• Measurement accuracy: iso 10360/2 mpee = 2. 1 + 3. 0l/1000 μm
• Maximum speed in 3d measurement: 500 mm/sec
• Acceleration in 3d measurement: 1700 mm/sec²

Extra Information

Control Unit RENISHAW UCC controller kit TouchDMIS measurement software DELL AIO computer with 24” LCD TouchScreen monitor Tools RENISHAW PH20 motorized probe head 3 RENISHAW TP20 magnetic probe modules RENISHAW TCR20 probe changer RENISHAW 23-piece stylus kit 25 mm diameter ceramic calibration sphere with certification Mount Position (Assembly) Machine frame made from aluminum alloy Slide surfaces hardened with a special process Black granite worktable with high wear resistance and threaded holes
