CMZ TA20YS

Photo Gallery

CMZ - TA20YSIT-TUR-CMZ-2018-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used CMZ TA20YS Horizontal Lathe For Sale | gindumac.com

Show in original language

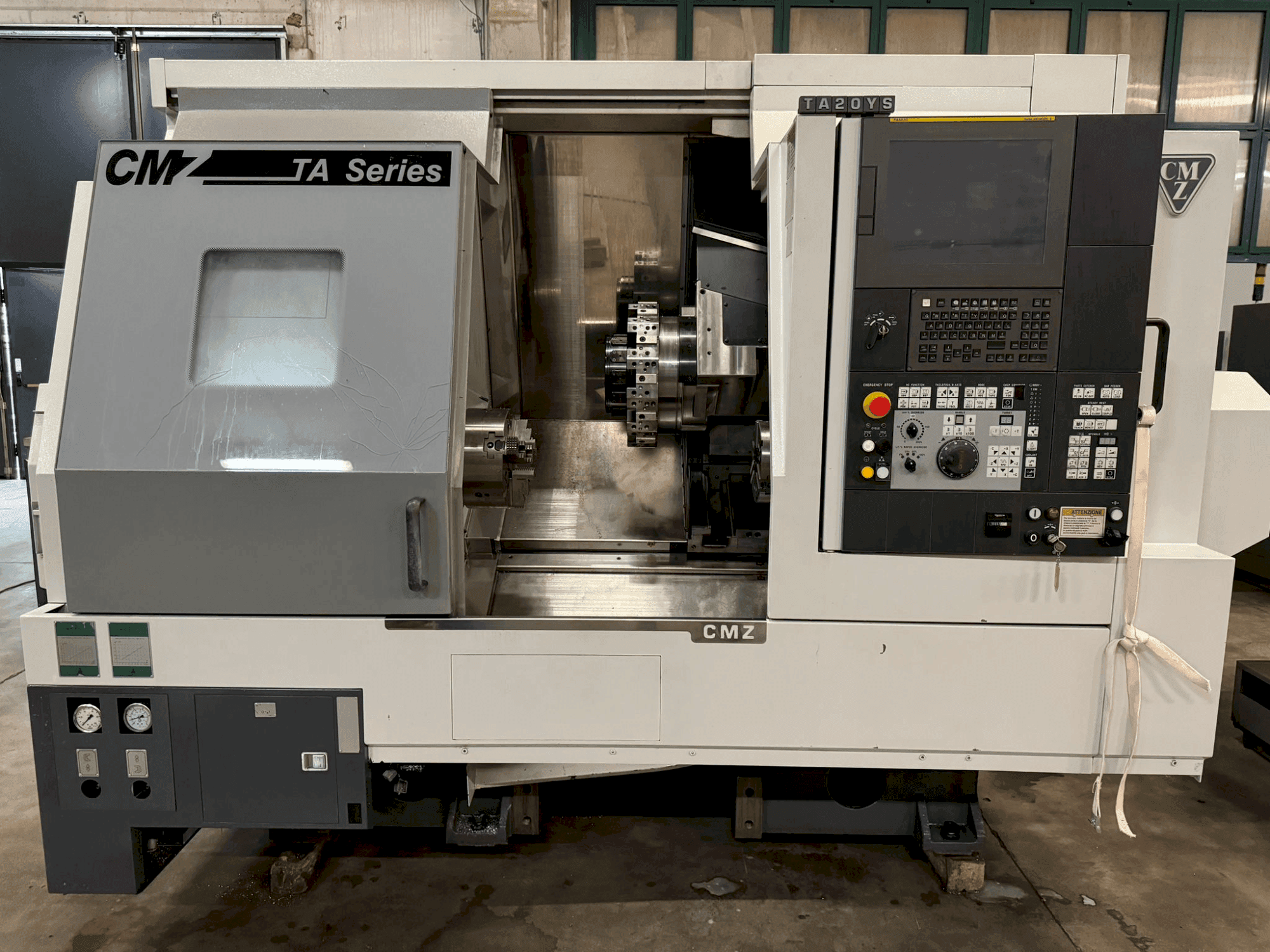

This 4-axis CMZ TA20YS horizontal turning machine was manufactured in 2018. It features a main spindle with a maximum speed of 4,000 rpm and a power of 22 kW, complemented by a subspindle that reaches up to 4,500 rpm. The machine includes a turret with 15 stations and a FANUC control unit. If you are looking to get high-quality turning capabilities, consider the CMZ TA20YS machine we have for sale. Contact us for more information.

Overview

brand: CMZ
year: 2018
MODEL: TA20YS
application type: Turning
Location: Italy
machine type: Horizontal Turning Machine
control unit brand: FANUC

Technical Information - CMZ TA20YS

Control Unit

Brand: FANUC
Model: 32i model B

Main drive

Spindle speed range: 12000 1/MIN
Spindle motor power: 11.3 kW
Tool taper: BMT 55

Movement

X-AXIS Movement: 310 mm
X-AXIS Rapid traverse: 30 m/min
Y-AXIS Movement: 120 mm
Y-AXIS Rapid traverse: 15 m/min
Z-AXIS Movement: 640 mm
Z-AXIS Rapid traverse: 30 m/min

Media

Chip conveyor: Yes

Additional Information

Additional equipment

Some holders & tools included

Machine Benefits

Technical Machine Benefits

Torque (max. ): 366 nm
Bar capacity: 65 mm
Turret with 12 stations
Subspindle: speed (max. ): 4. 500 rpm, power (max. ): 14 kw, torque (max. ): 292 nm, movement in b: 640 mm, rapid traverse in b: 30 m/min

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
