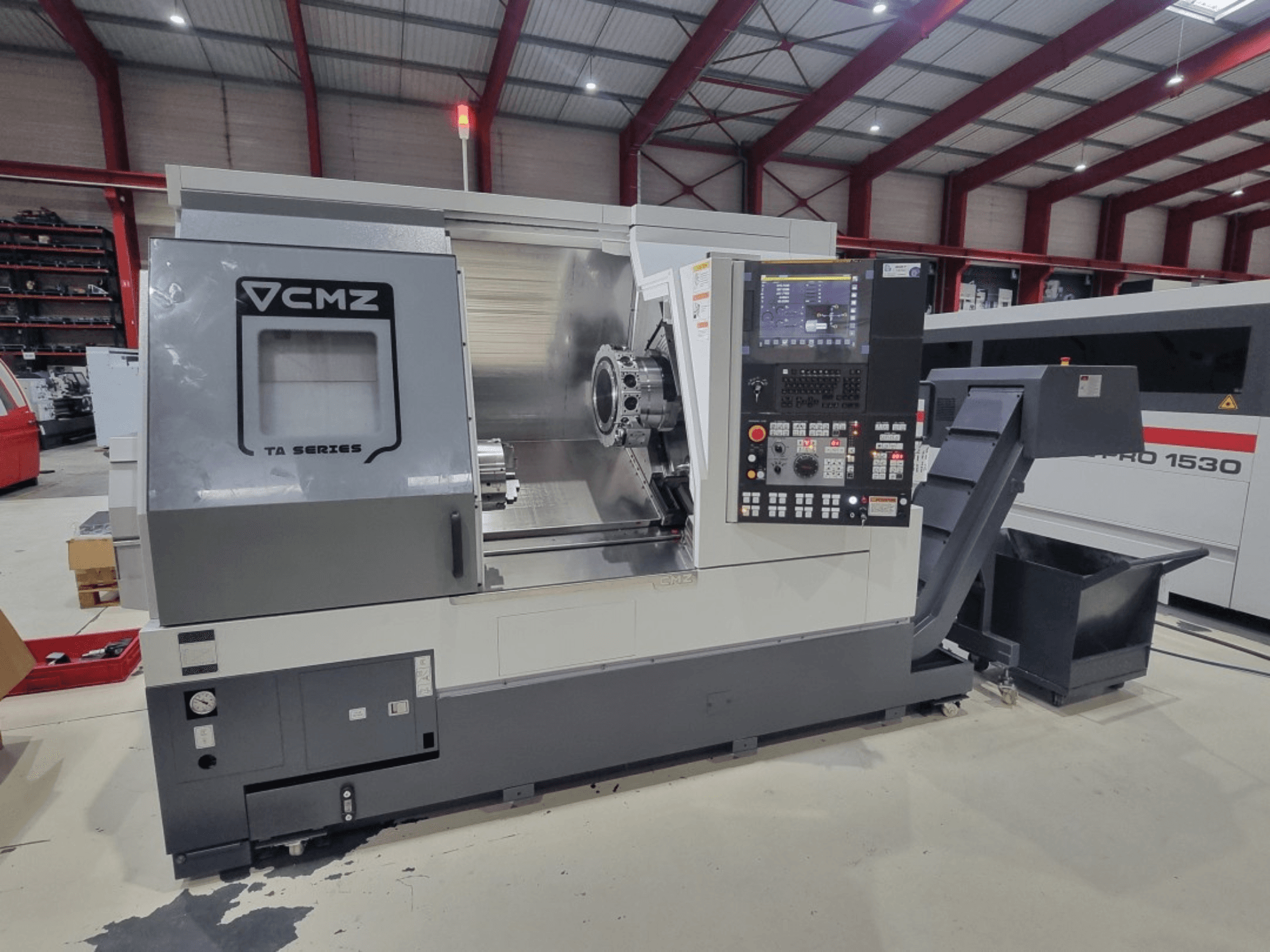

This 3-axis CMZ TA-20TY-640 horizontal turning machine was manufactured in 2023. It features a maximum cutting diameter of 460 mm, length of 640 mm, and a robust 15 kW spindle capable of 4000 rpm. Includes a Y-axis travel of +70/-50 mm, 15 driven tools with a speed up to 12,000 rpm, and a bar capacity of 66 mm. Consider the opportunity to buy this CMZ TA-20TY-640 horizontal turning machine. Contact us for more information about this machine.
Overview
- brand: CMZ
- year: 2023
- MODEL: TA-20TY-640
- application type: Turning
- Location: France
- machine type: Horizontal Turning Machine
Technical Information - CMZ TA-20TY-640
Dimensions
- Machine Height: 2120 mm
- Machine Length: 2542 mm
- Machine Weight: 7100 kg
Movement
- Number of Axes: 3
- X-axis Travel: 230 mm
- Z-axis Travel: 640 mm
Technical Specification
- Spindle Power: 15 kW
- Spindle Speed: 4000 RPM
Additional Information
Maximum cutting diameter – 460 mm
Maximum cutting length – 640 mm
Swing over bed – 760 mm
Swing over saddle – 600 mm
Y-axis travel – +70 / –50 mm
Bar capacity – 66 mm
Chuck size – A2-6"
C-axis – 0.001°
Tools number – 15
Driven tools – 15
Driven tool power – 8.1 kW
Driven tool speed – 12 000 rpm
Tailstock taper – CM3
Spindle run time – Less than 1500 h (to be confirmed)
Additional equipment
Chip conveyor – Yes, side discharge
Tool presetter – Yes
Automatic tailstock carriage – Yes
Automatic doors – Yes
High-pressure pump – 6 bar
Robot preparation – Yes
Set of tool holders – Yes
Spindle cooling system (cooling unit instead of air/oil exchanger) – Yes
Filtration – 90 µm
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
