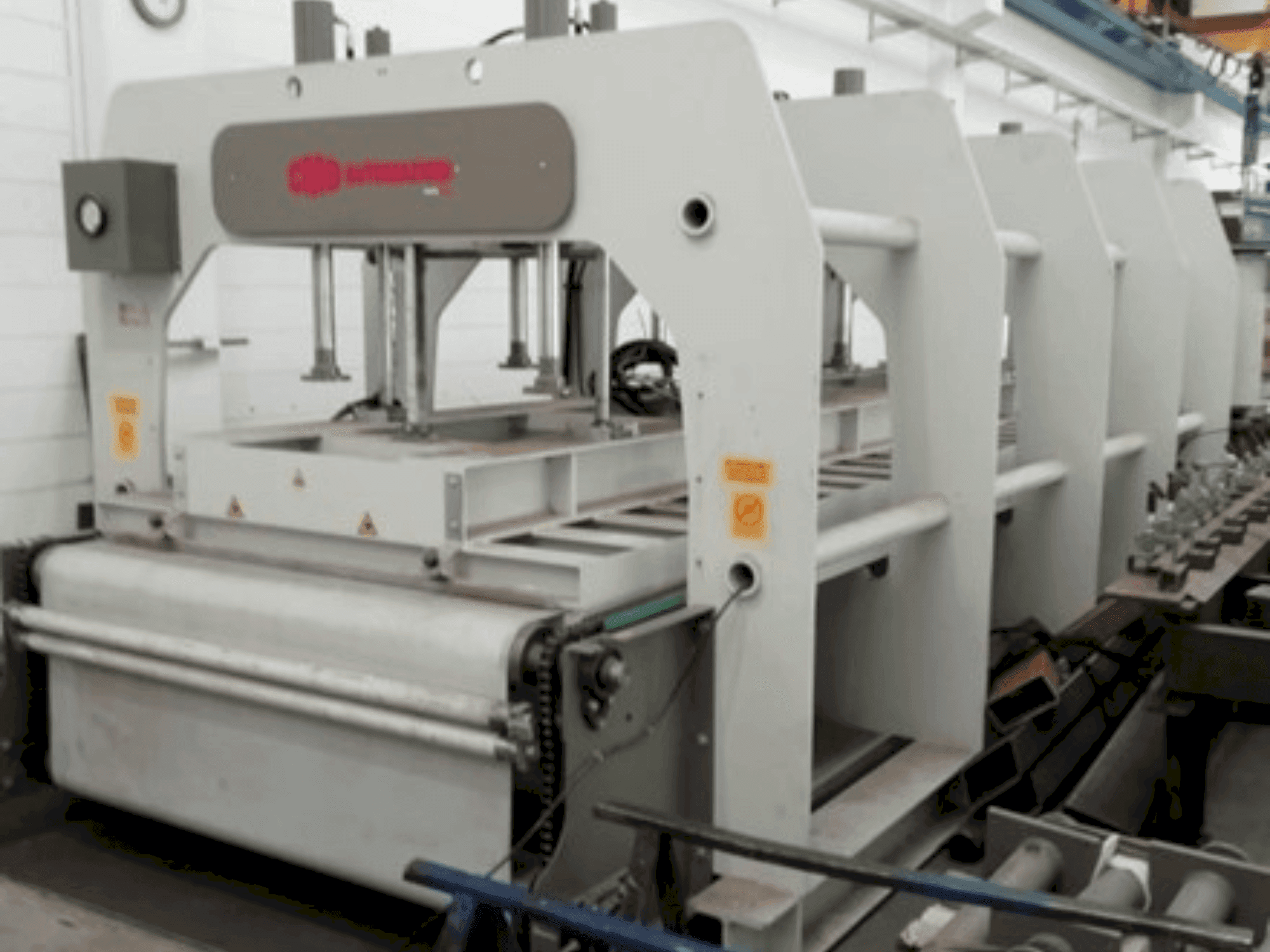

CMB - PFR-CCLIT-PRE-CMB-2017-00001

Additional equipment

• Hydraulic unit with pump, oil tank, and valves for operating the pressure and auxiliary cylinders
• Hydraulic control unit located at the upper part of the press for maintenance ease
• Control panel with buttons, selector switches, and a pressure control gauge

Machine Benefits

Technical Machine Benefits

• Motorized loading table dimensions: 3500 x 1600 mm
• Devices for adjusting the working height for flatness on any unevenness of the floor
• Structure made of welded steel profiles
• Steel rollers and foot switch
• Specific pressure (on 100% of the surface): 1. 82 kg/cm2
• Specific pressure (on 80% of the surface): 2. 27 kg/cm2
• Pressure cylinders: 12 x Ø 80 mm
• Auxiliary cylinders: 6 x Ø 50/30 mm
• Power supply: 400 volt eu/50 hz/3 ph. + g

Extra Information

Note on table dimensions: The loading table (3500 x 1600 mm) and unloading table (2000 x 1600 mm) are shorter than the press table (5500 x 1600 mm) due to inline installation. Table Panel size: 5500 x 1600 mm Loading side: 1700 mm Stroke: From top to bottom Opening: 450 mm Cold press Panels made of sheet steel mounted on a steel beam structure Maximum pressing force: 160 tons Movement Automatic loading and unloading of the panels on the bottom panel, on the 3500 mm side. Transport via a motorized MYLAR belt activated by 2 rollers located at the entrance and the exit of the press Rollers are motor-driven with a chain system on special guides Mylar belt rotates around the lower plate, resting on special lateral supports Belt ends are fixed to rods with devices for tensioning
