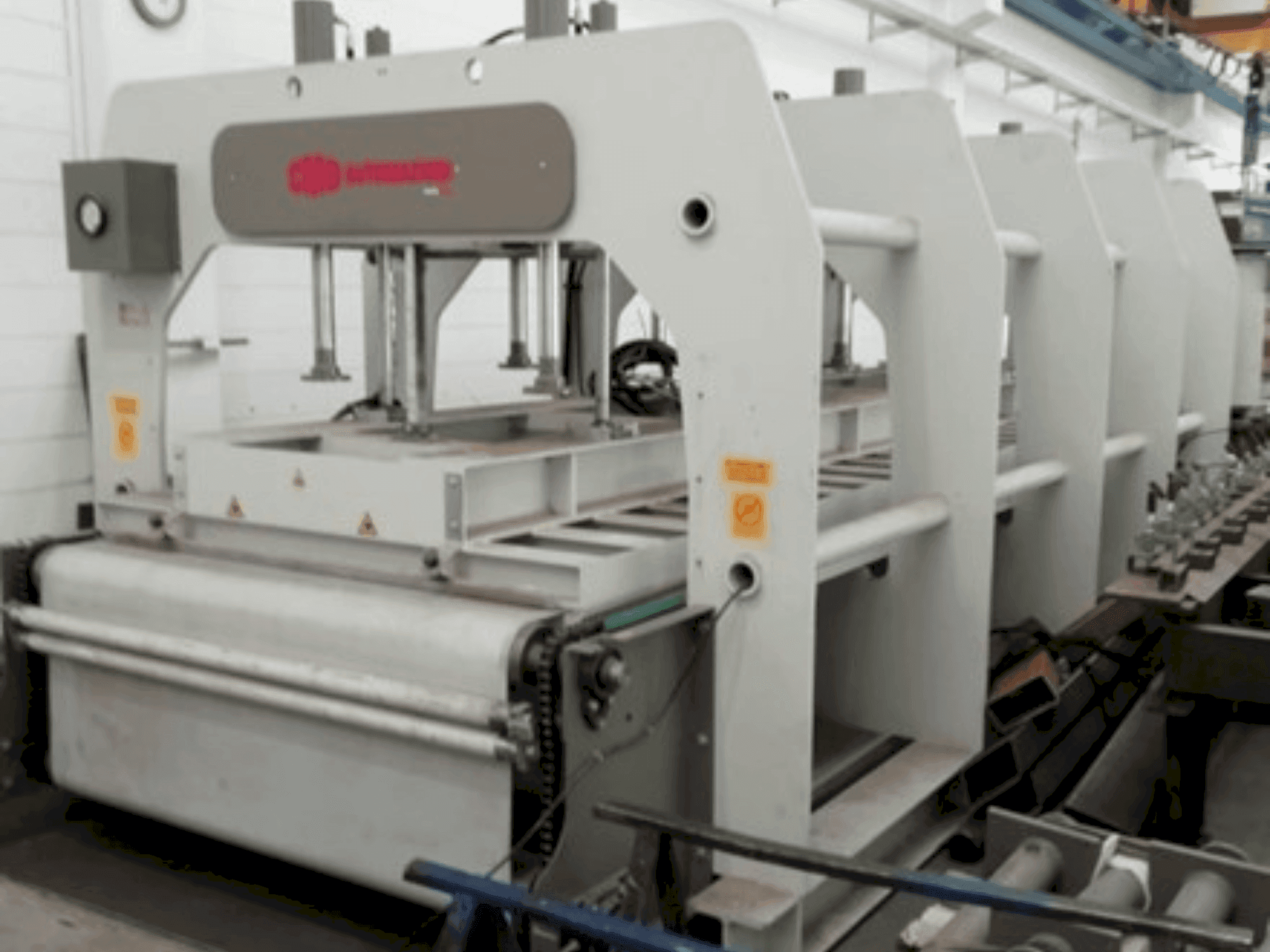

This CMB PFR-CCL was manufactured in 2017. It features a motorized loading table and an automatic cold press with a maximum pressing force of 160 tons. The press operates with a hydraulic unit and a control panel for precise operation. Ideal for handling large panel sizes up to 5,500 x 1,600 mm. If you are looking to get high quality pressing capabilities consider the CMB PFR-CCL machine we have for sale. Contact us for more information.
Overview
- brand: CMB
- year: 2017
- MODEL: PFR-CCL
- application type: Pressing / Laminating
- Location: Italy
- machine type: Veneer Press
Additional Information
Additional equipment
- Hydraulic unit with pump, oil tank, and valves for operating the pressure and auxiliary cylinders
- Hydraulic control unit located at the upper part of the press for maintenance ease
- Control panel with buttons, selector switches, and a pressure control gauge
Machine Benefits
Technical Machine Benefits
- Motorized loading table dimensions: 3500 x 1600 mm
- Devices for adjusting the working height for flatness on any unevenness of the floor
- Structure made of welded steel profiles
- Steel rollers and foot switch
- Specific pressure (on 100% of the surface): 1. 82 kg/cm2
- Specific pressure (on 80% of the surface): 2. 27 kg/cm2
- Pressure cylinders: 12 x Ø 80 mm
- Auxiliary cylinders: 6 x Ø 50/30 mm
- Power supply: 400 volt eu/50 hz/3 ph. + g
Extra Information
Note on table dimensions: The loading table (3500 x 1600 mm) and unloading table (2000 x 1600 mm) are shorter than the press table (5500 x 1600 mm) due to inline installation. Table Panel size: 5500 x 1600 mm Loading side: 1700 mm Stroke: From top to bottom Opening: 450 mm Cold press Panels made of sheet steel mounted on a steel beam structure Maximum pressing force: 160 tons Movement Automatic loading and unloading of the panels on the bottom panel, on the 3500 mm side. Transport via a motorized MYLAR belt activated by 2 rollers located at the entrance and the exit of the press Rollers are motor-driven with a chain system on special guides Mylar belt rotates around the lower plate, resting on special lateral supports Belt ends are fixed to rods with devices for tensioning
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
