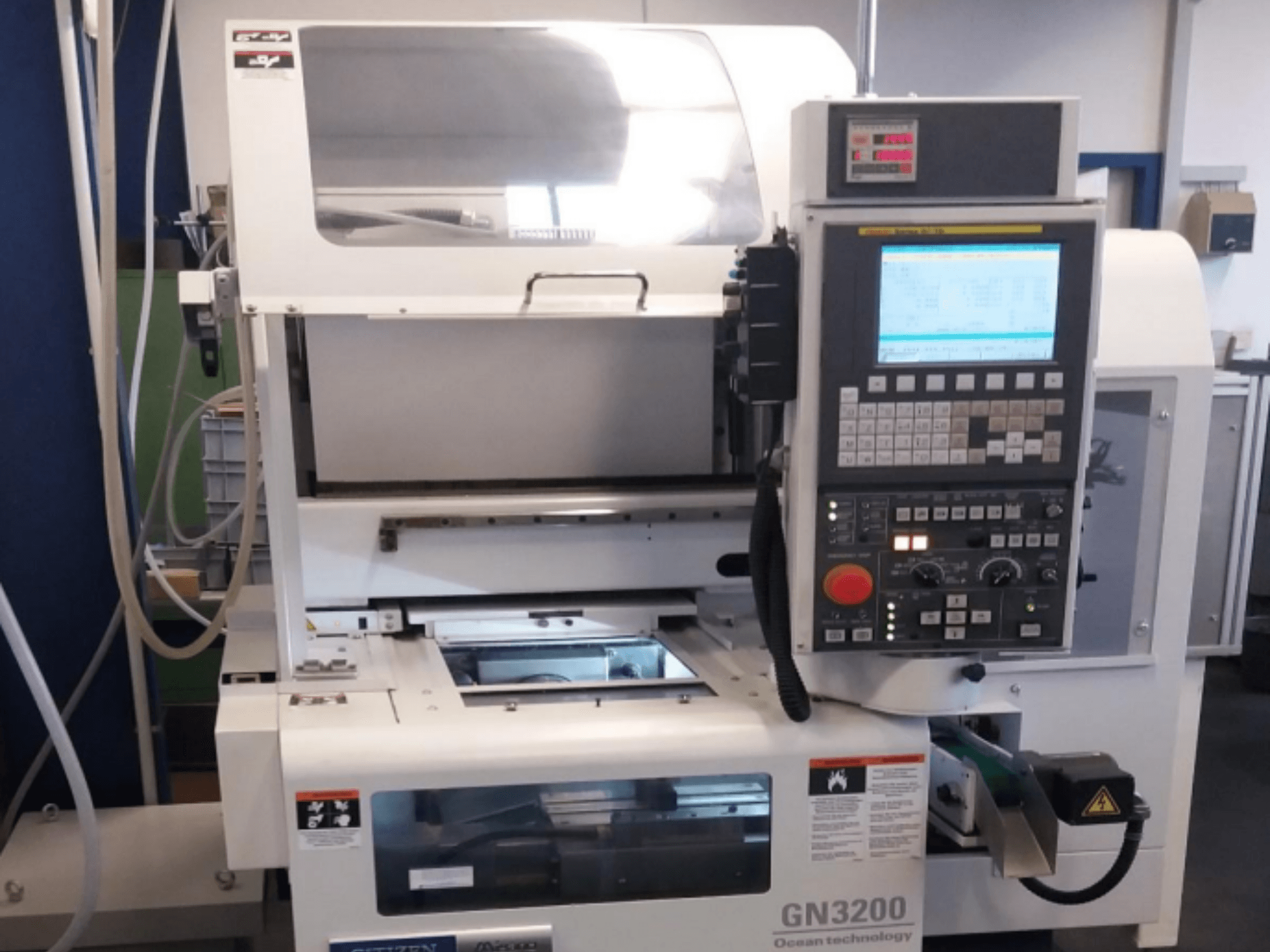

Horizontal turning machine manufactured in 2016. This Citizen MIYANO GN 3200 features a maximum machining diameter of 45 mm and a maximum machining length of 50 mm. It includes a spindle speed range of 8,000 rpm and a slide travel of 180 mm in the X-axis and 200 mm in the Z-axis. If you are looking to get high-quality turning capabilities, consider the Citizen MIYANO GN 3200 machine we have for sale. Contact us for further details.
Overview
- brand: Citizen
- year: 2016
- MODEL: MIYANO GN 3200
- production hours: 3790
- application type: Turning
- Location: Germany
- machine type: Horizontal Turning Machine
- control unit brand: FANUC
Technical Information - Citizen MIYANO GN 3200
Control Unit
- Control Brand: FANUC
- Control Model: Series 0i-TD
Dimensions
- Machine Height: 1600 mm
- Machine Length: 1460 mm
- Machine Weight: 1700 kg
- Machine Width: 700 mm
Movement
- Number of Axes: 2
- X-axis Travel: 180 mm
- Z-axis Travel: 200 mm
Technical Specification
- Counter Spindle: No
- Driven Tools: No
- Spindle Power: 1.5 kW
- Spindle Speed: 8000 RPM
Additional Information
- Max. Machining Diameter (Collet Chuck): 40 mm (Pull type) / 35 mm (Fixed type)
- Max. Machining Diameter (Air/Power/Diaphragm Chuck): 45 mm
- Max. Machining Length: 50 mm
- Max. Work Length with Loader: 40 mm
- Spindle Nose: Special flat
- Through Hole Diameter: 17 mm
- Inner Diameter of Draw Tube: 11 mm
- Spindle Drive Motor Power: 2.2 / 1.5 kW (15 Min. / Cont.)
- Rapid Feed Rate: X-axis: 15 m/min / Z-axis: 15 m/min
- Number of Tools: 5 (Standard square turning tool shank size: 10, 12, 16 mm / Drill shank diameter: 20 mm)
- Power Supply Capacity: 7.2 kVA
- Input Voltage: AC 200 V, 3-phase, 50/60 Hz
- Coolant Tank Capacity: 90 L (Separate type)
- Lubricating Tank Capacity: 1.5 L (Oil Viscosity VG32)
- Spindle Cooling Device Capacity: 7 L (Oil Viscosity VG10)
- Air Supply Pressure: 0.4 Mpa (4 kgf/cm²)
- Spindle Center Height: 875 mm
- Working Hours Count (as of 2026/05/21):
- Control On Time: 8,765 Hours
- Operating Time: 5,000 Hours
- Cutting Time: 3,790 Hours
- Parts Counter: 39,713
- Total Parts: 759,451
- Included Equipment:
- High-speed gantry loader (Upper/lower feed rate: 154 m/min, Right/left feed rate: 130 m/min, Max workpiece size: 40x40mm, Max weight: 250g)
- Sorting and feeding system manufactured by Fa. Steyer (equipped with 2x MFS 158 speed controller units designated for "TOPF" bowl and "SCHIENE" rail)
- Separator / feeding system via conveyor belt
- Pneumatic power chuck
- Tool holders
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
