CHIRON - Mill-800 FAIT-MIL-CHI-2012-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- Chiron Mill-800 FA Machining Center

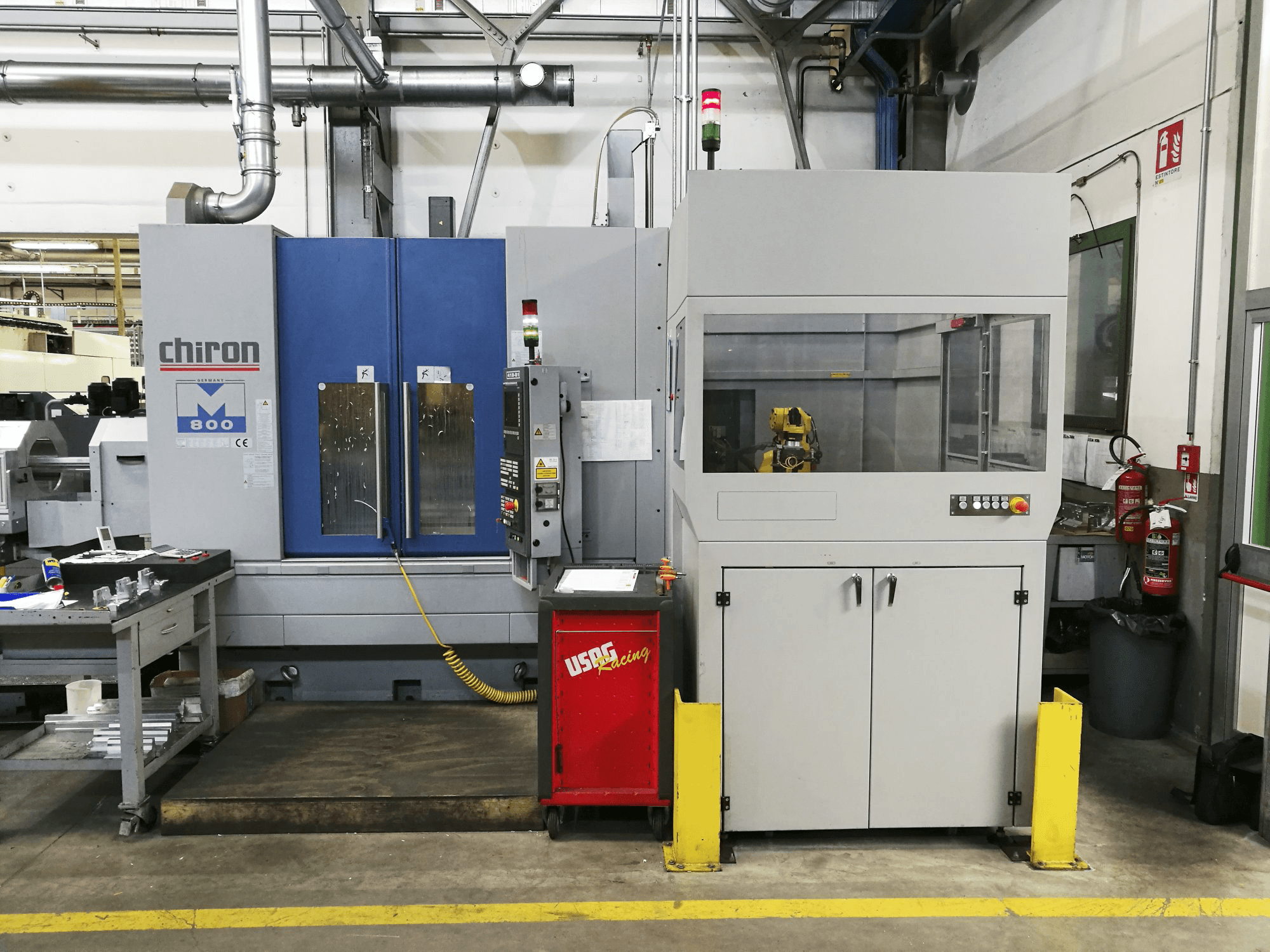

This Chiron Mill-800 FA Machining Center was manufactured in the year 2012 in Germany and has a production history of 8593 working hours. Operated through a SIEMENS SINUMERIK 840D Control unit, the equipment benefits from a working table of 500 mm of outer width. As additional equipment, this machine includes a hold and locking device and a Fanuc robot for positioning and unloading of the pieces.
Overview
- brand: CHIRON
- year: 2012
- MODEL: Mill-800 FA
- production hours: 8593
- application type: Milling
- Location: Italy
- machine type: Vertical Machining Centre
- control unit brand: SIEMENS
Technical Information - CHIRON Mill-800 FA
Control Unit
- Control Brand: SIEMENS
- Control Model: SINUMERIK 840D
Dimensions
- Machine Depth: 6875 mm
- Machine Height: 3171 mm
- Machine Weight: 9100 kg
- Table Width: 500 mm
Movement
- X-axis Travel: 800 mm
- Y-axis Travel: 480 mm
- Z-axis Travel: 630 mm
Technical Specification
- Max. Tool Weight: 4 kg
- Spindle Speed: 12000 RPM
- Through-spindle Coolant: Yes
Additional Information
Additional equipment
- Bar holding device with locking system and vise
- Fanuc unload and positioning robot
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
