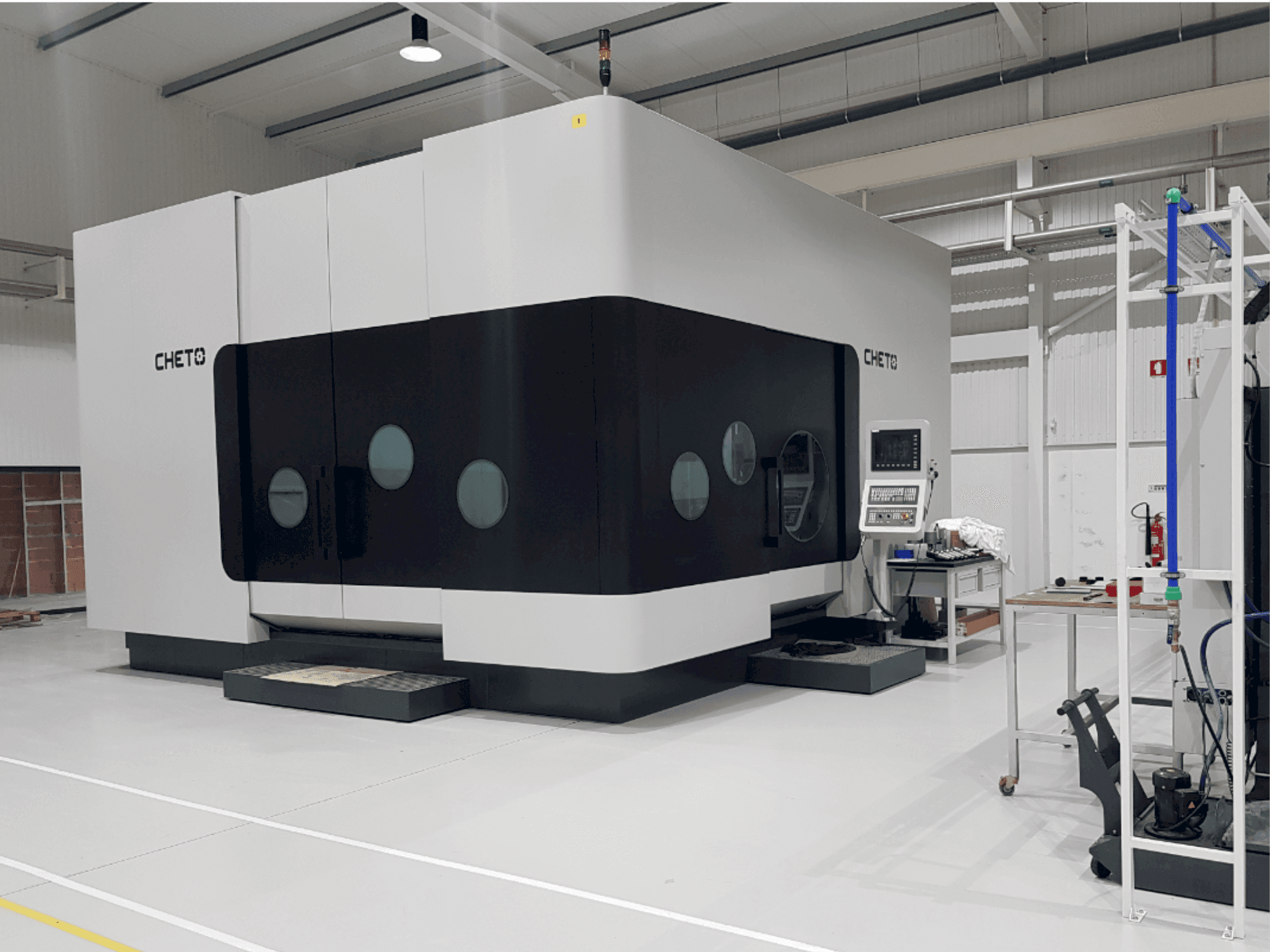

Front view of CHETO IXN2000 (2019)  machine

CHETO - IXN2000PT-MIL-CHE-2019-00001

£ 303,600
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 6-axis CHETO IXN2000 boring machine was manufactured in 2019. It features a robust ISO 50 DIN 69871 spindle with a speed range of 0-6000 rpm and a power of 20/30 kW, ensuring high torque and precision. The machine includes an automatic rotary table with a size of 1600x1300 mm and can handle a maximum load of 20 tons. Ideal for complex drilling and milling tasks. For more information about this universal machining centre, please reach out to us.

Overview

  • brand: CHETO
  • year: 2019
  • MODEL: IXN2000
  • application type: Boring
  • Location: Portugal
  • machine type: Boring Machine
  • availability: Immediately

Technical Information - CHETO IXN2000

General Data

  • Machine weight: 44000 kg

Main drive

  • Number of spindles: 1
  • Spindle speed range: 6000 rpm 1/MIN
  • Spindle motor power: 20/30 kW
  • Tool taper: ISO 50 DIN 69871
  • Number of axis: 6

Movement

  • X-AXIS Movement: 2000 mm
  • Y-AXIS Movement: 1200 mm
  • Z-AXIS Movement: 1000 mm
  • W-Axis Movement: 1700 mm
  • A-AXIS Movement: +35º/-25º MM
  • B-AXIS Movement: 360º MM

    Additional Equipment

    • - B table rotation: 360,000
    • - Rigid tapping: M32
    • - Helical threading: Standard
    • - Torque: 178/267 Nm
    • - Automatic rotary table size: 1600x1300 mm
    • - Footprint (LxL): 8690x6160 mm

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Cnc axis w drilling one stroke: 1700 mm
        • - A tilting rotation: +35º/-25º
        • - Drilling capacity max. Drilling stroke w+z: 1700+800 mm
        • - Drilling capacity: Ø5-40 mm
        • - Milling capacity: 400 cm³/min
        • - Positioning type: 360,000
        • - Max. Load in rotation: 20 ton

      Extra information

      • - Machine still under power

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
