➤ Used BVL Niagara DFS 800-2T For Sale | gindumac.com

Show in original language

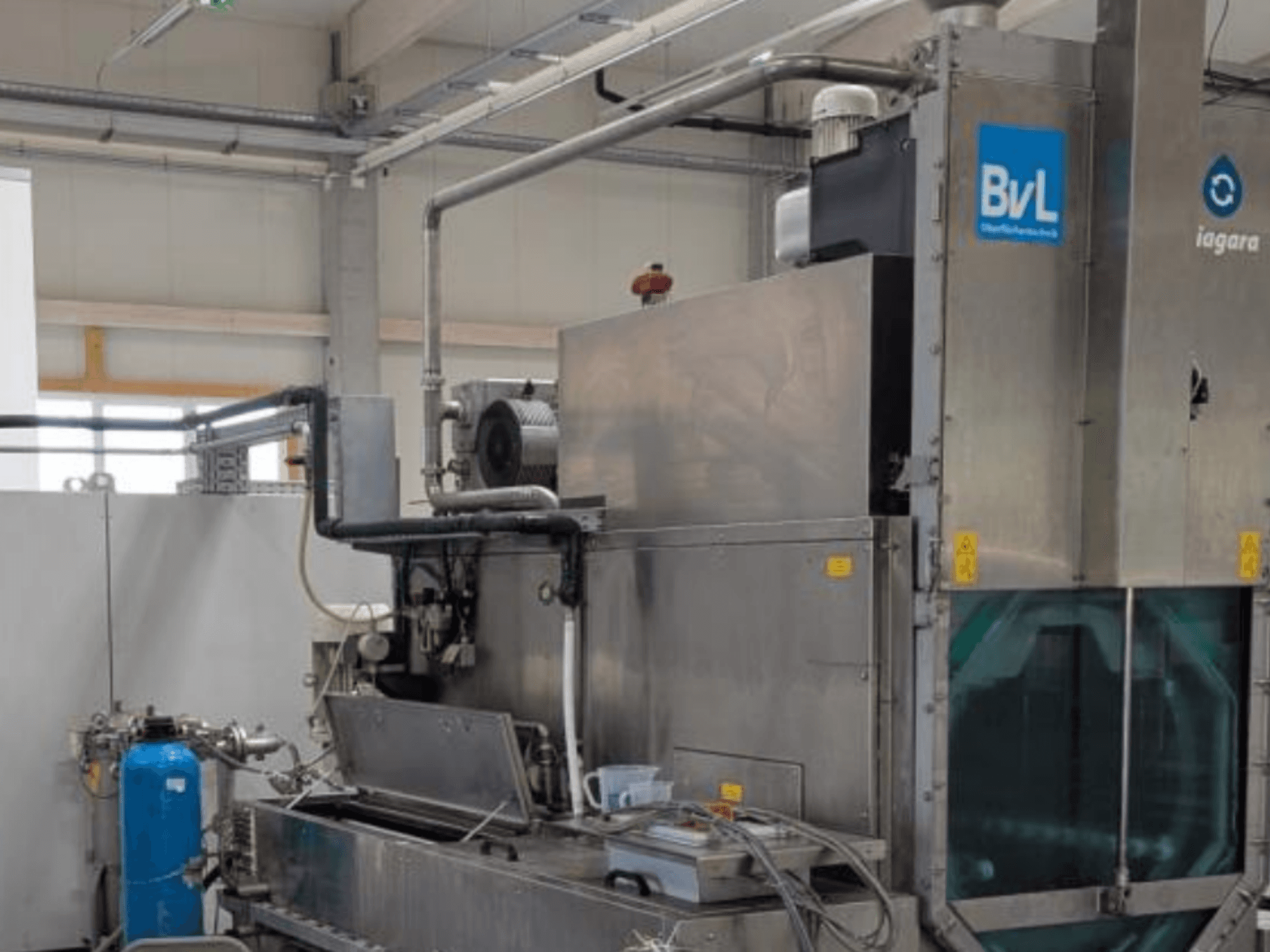

BVL's Niagara DFS 800-2T was manufactured in 2015. It features a useful length of 800 mm and a carrying capacity of 150 kg. The machine includes two tanks, each with a volume of 1,100 L, and operates at temperatures between 45 °C and 60 °C. If you are looking to get high-quality cleaning capabilities, consider the BVL Niagara DFS 800-2T machine we have for sale. Contact us for further details.

Overview

brand: BVL
year: 2015
MODEL: Niagara DFS 800-2T
application type: Other Machine Tools
Location: Austria
machine type: Machine Tool

Technical Information - BVL Niagara DFS 800-2T

Dimensions

Machine Height: 3500 mm
Machine Length: 3000 mm
Machine Width: 2200 mm

Additional Information

- Useful Length: 800 mm

- Useful Width: 635 mm (Max dimensions on nameplate: 800 x 600 x 400 mm)

- Useful Height: 100 mm

- Charging Height: 950 mm

- Carrying Capacity / Charge: 150 kg

- Charges / Hour: Approx. 2-4

- Tank 1 (Waschtank) Volume: 1,100 L

- Tank 1 Heating Power: 36.0 kW

- Tank 1 Pump Capacity: 22.5 kW

- Tank 1 Pump Pressure: 4.5 bar (13.0 bar max on nameplate)

- Tank 2 (Spültank 1) Volume: 1,100 L

- Tank 2 Heating Power: 30.0 kW

- Tank 2 Pump Capacity: 3.0 kW

- Tank 2 Pump Pressure: 2.5 bar

- Dryer Fan Power: 2.2 kW

- Dryer Heating Power: 30.0 kW

- Rotary Drive Power: 0.18 kW

- Operating Temperature: 45 °C min / 60 °C max

- Cleaning Liquid pH Range: 5.5 min / 11 max

- Water Connection: G 3/4

- Raw Water Hardness: < 2.5 mmol/l (< 14 °dH)

- Raw Water Conductivity: > 250 µS/cm

- Compressed Air: Min. 6 bar (according to ISO 8573-1:2010 [5:4:3])

- Total Dimensions (W x D x H): 2,200 x 3,000 x 3,500 mm

- Operating Voltage: 3 x 400 V / N / PE / 50 Hz / 200 A

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
